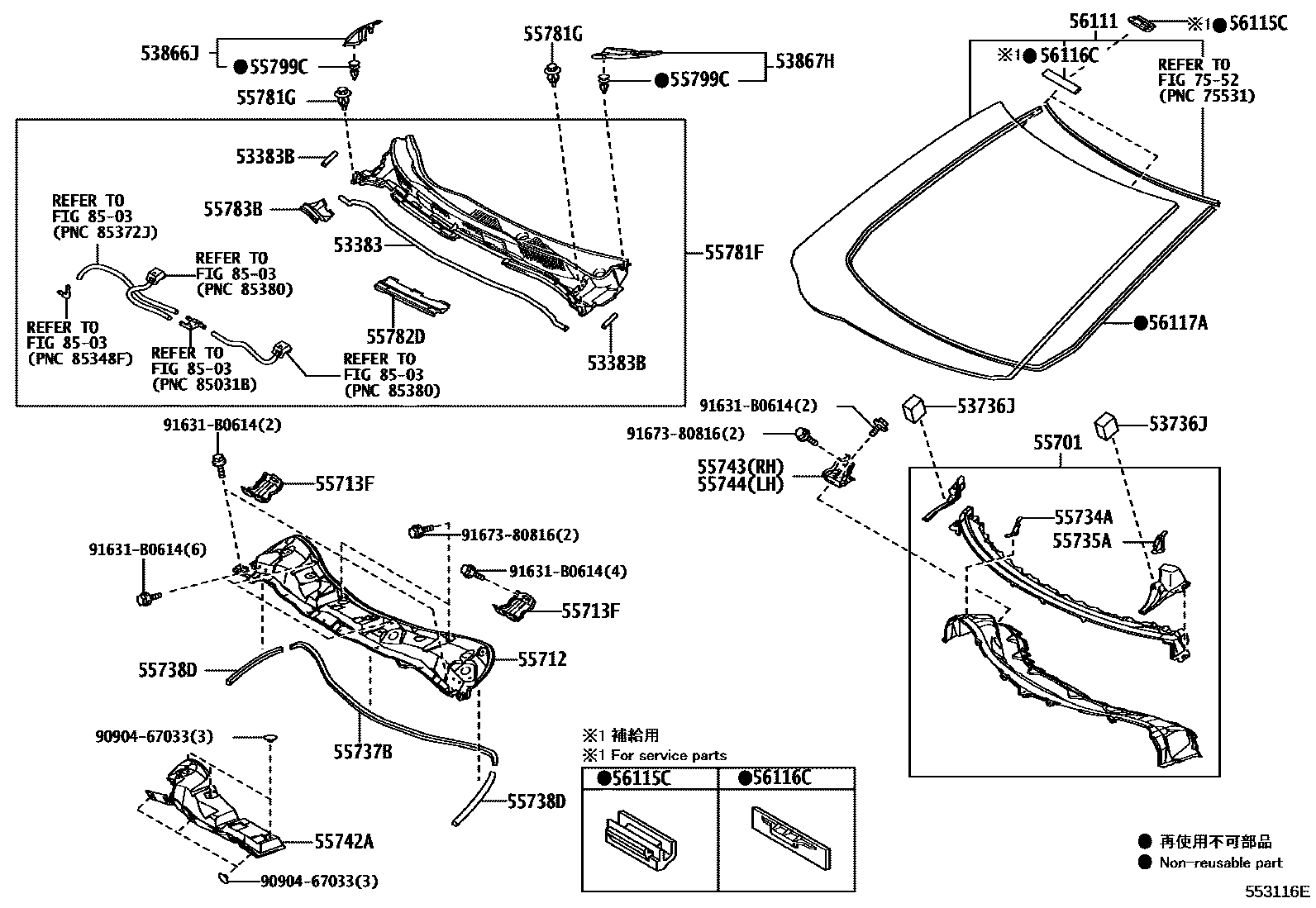

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-28050iAHR20¥1,120201304-201605

53383BSEAL, HOOD TO COWL TOP

main53383-28060iAHR20¥200201304-201605

53736JSEAL, FENDER APRON

main53736-28041iAHR20¥970201304

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-28010iAHR20¥680201304

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-28050iAHR20¥680201304

55701PANEL SUB-ASSY, COWL

main55700-28040iAHR20¥23,100201304

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-28140iAHR20¥13,200201304

55713FREINFORCEMENT, COWL TOP SIDE, RH

main55713-28030iAHR20¥1,220201304

55734APLATE, WATER GUARD, RH

main55734-28050iAHR20¥300201304

55735APLATE, WATER GUARD, LH

main55735-28020iAHR20¥300201304

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-28030iAHR20¥970201304

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-28040iAHR20¥820201304

55742ASHEET, COWL TOP INSULATOR

main55742-28080iAHR20¥4,650201304

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-28030iAHR20¥750201304

55744PANEL, COWL TOP OUTSIDE CORNER, LH

main55744-28030iAHR20¥800201304

55781FLOUVER, COWL TOP VENTILATOR

main55708-28160iAHR20¥14,700201304

sub55708-28170¥16,100

55781GCLIP, COWL TOP VENTILATOR LOUVER

main55799-28010iAHR20¥140201304

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-28030iAHR20¥1,560201304

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-28050iAHR20¥1,330201304

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-28030iAHR20¥100201304

56111GLASS, WINDSHIELD

main56101-28590iAHR20¥198,000201304

*IRCEHL,T=4.56,GREEN

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100iAHR20¥130201304

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAHR20¥120201304

56117ADAM, WINDOW GLASS ADHESIVE

main56117-28150iAHR20¥1,170201304

L=3355

sub56117-64010¥1,480

7552

8503

9090467033

main90904-67033¥80

91631B0614

main91631-B0614¥110

9167380816

main91673-80816¥80

29 parts on this diagram · 1 diagram in section
