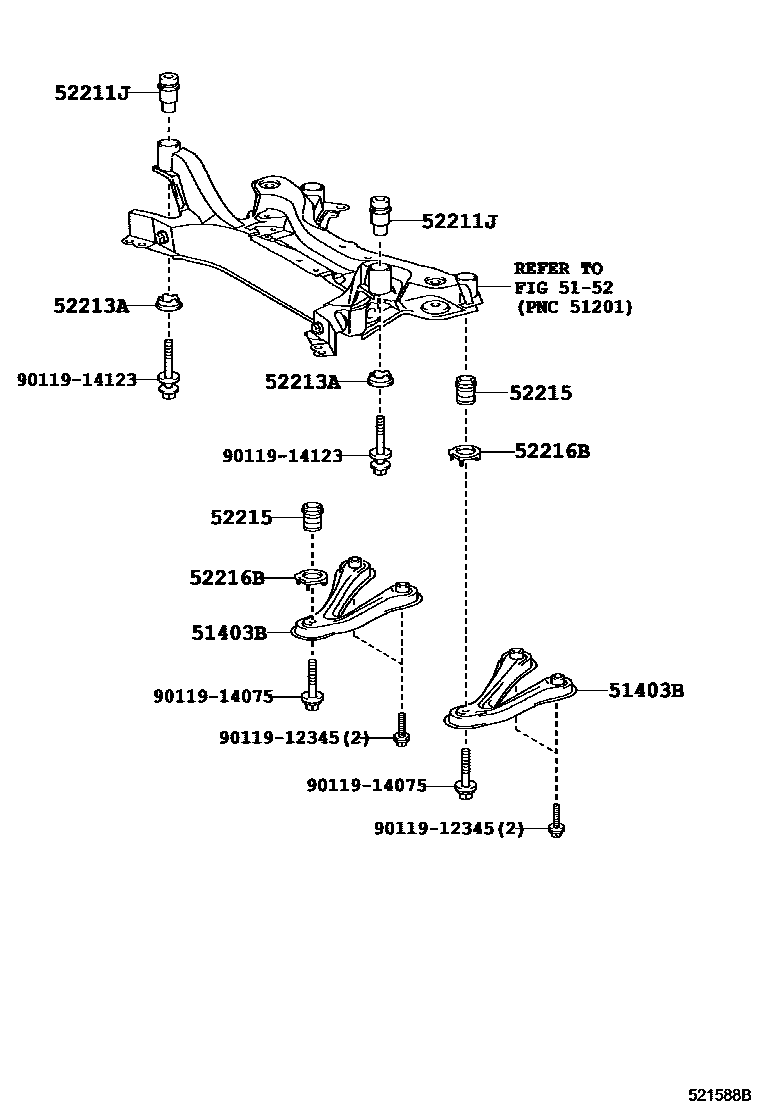

CAB MOUNTING & BODY MOUNTING

51403BBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-28080iAHR20201304

5152

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28060iAHR20201304-201605

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28040iAHR20201304

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28040iAHR20201304-201605

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28030iAHR20201304

9011912345

main90119-12345

9011914075

main90119-14075

9011914123

main90119-14123

9 parts on this diagram · 1 diagram in section
