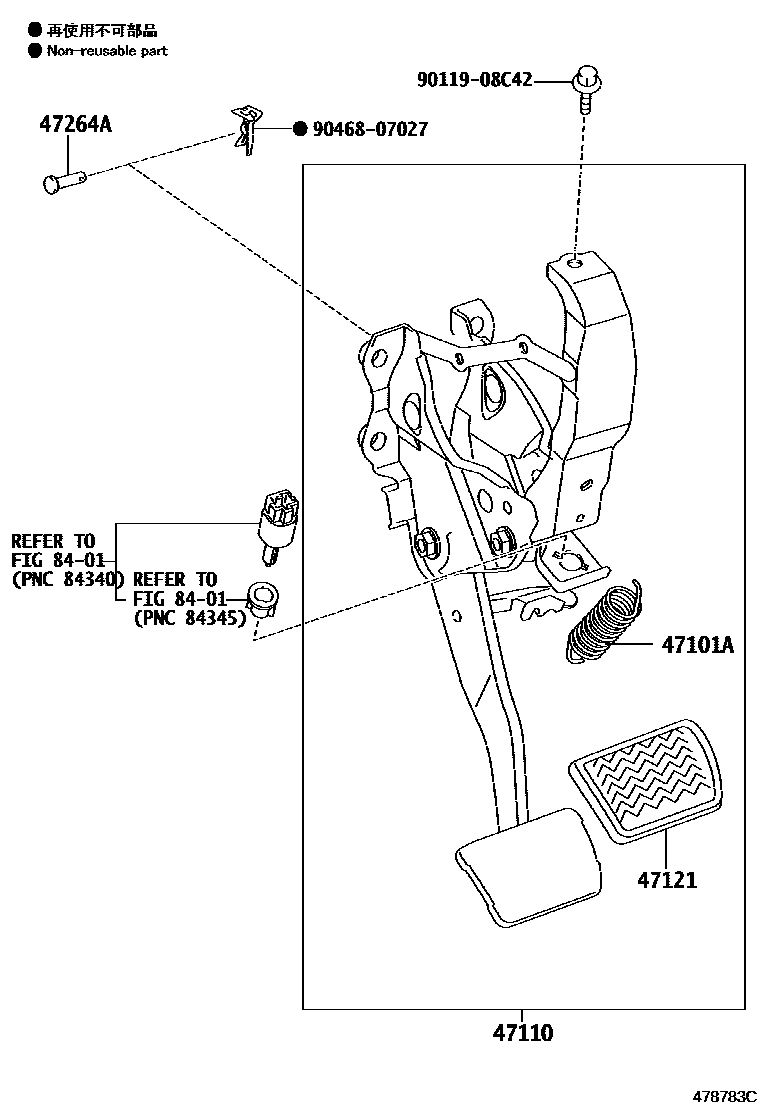

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-28011iAHR20201304

47110SUPPORT ASSY, BRAKE PEDAL

main47110-28203iAHR20201304-201412

sub47110-28204

main47110-28204iAHR20201501

47121PAD, BRAKE PEDAL

main47121-42010iAHR20201304-201605

47264APIN(FOR PUSH ROD)

main90240-08078iAHR20201304

8401

9011908C42

main90119-08C42

9046807027

main90468-07027

7 parts on this diagram · 1 diagram in section
