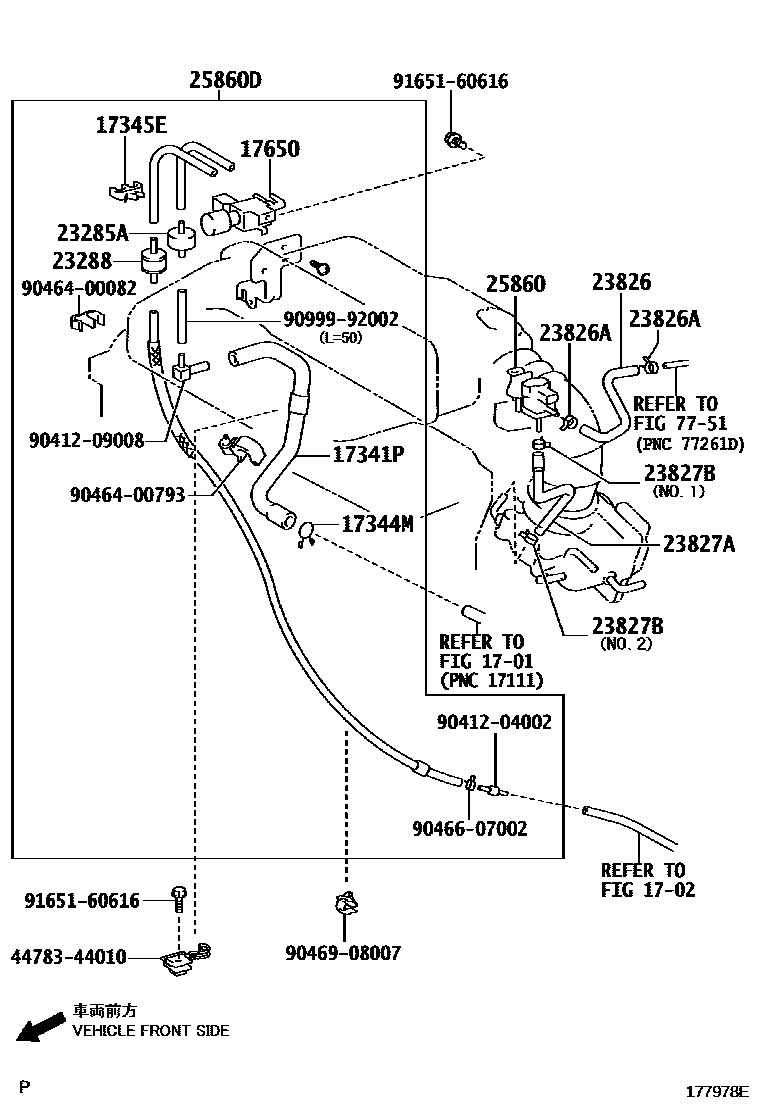

VACUUM PIPING

1701

1702

17341PHOSE, AIR

main17341-28030i2AZFXE..AHR20201304

17344MCLIP(FOR AIR HOSE, NO.4)

main90467-14001i2AZFXE..AHR20201304

17345ECLAMP OR CLIP(FOR AIR HOSE, NO.5)

main90469-07012i2AZFXE..AHR20201304

17650VALVE ASSY, VACUUM SWITCHING

main25860-30070i2AZFXE..AHR20201304

23285AVALVE, CHECK, NO.1

main90917-10065i2AZFXE..AHR20201304

23288JET, NO.1

main90925-04005i2AZFXE..AHR20201304-201605

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28360i2AZFXE..AHR20201304

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2AZFXE..AHR20201304

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28310i2AZFXE..AHR20201304

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11003i2AZFXE..AHR20201304

NO.1:REFER ILLUST.

main96132-41000i2AZFXE..AHR20201304

NO.2:REFER ILLUST.

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28140i2AZFXE..AHR20201304

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-28151i2AZFXE..AHR20201304

7751

4478344010CLAMP, VACUUM HOSE

main44783-44010

9041204002

main90412-04002

9041209008

main90412-09008

9046400082

main90464-00082

9046400793

main90464-00793

9046607002

main90466-07002

9046908007

main90469-08007

9099992002

main90999-92002

9165160616

main91651-60616

24 parts on this diagram · 1 diagram in section
