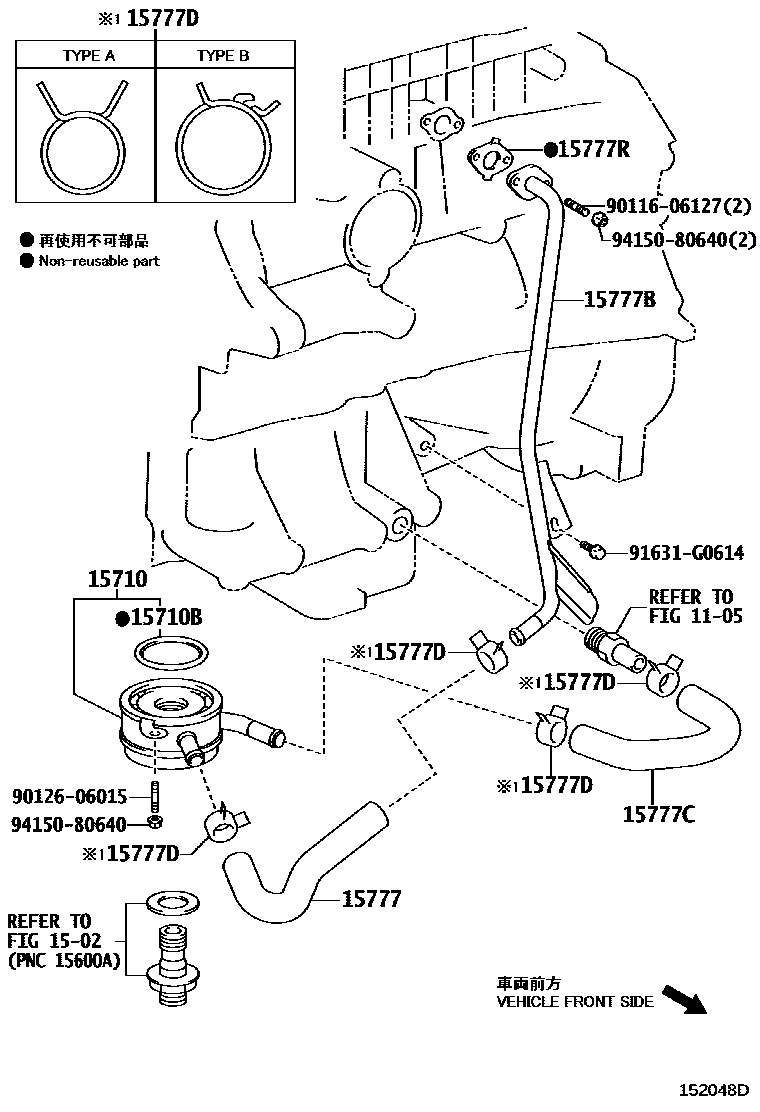

ENGINE OIL COOLER

1105

1502

15710COOLER ASSY, OIL

main15710-28020i2AZFXE..AHR20¥39,500201304

15710BRING, O(FOR OIL COOLER)

main90301-52006i2AZFXE..AHR20¥0201304

15777HOSE, OIL COOLER

main16267-28080i2AZFXE..AHR20¥720201304

15777BPIPE, OIL COOLER

main16279-28010i2AZFXE..AHR20¥3,290201304

15777CHOSE, OIL COOLER

main16281-28010i2AZFXE..AHR20¥490201304

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96134-41900i2AZFXE..AHR20¥90201304

TYPE A:REFER ILLUST.

main96136-42201i2AZFXE..AHR20¥180201304

TYPE B:REFER ILLUST.

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main16258-28040i2AZFXE..AHR20¥310201304

9011606127

main90116-06127¥80

9012606015

main90126-06015¥110

91631G0614

main91631-G0614¥60

9415080640

main94150-80640¥220

13 parts on this diagram · 1 diagram in section
