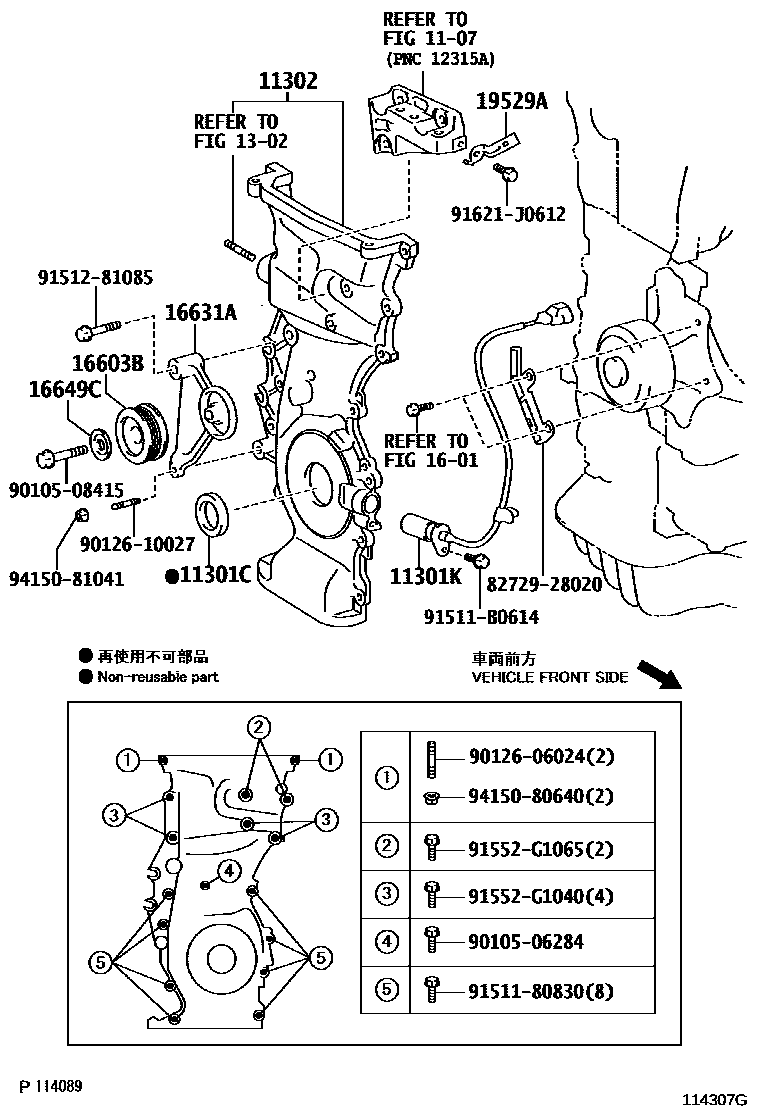

TIMING GEAR COVER & REAR END PLATE

1107

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38098i2AZFXE..AHR20201304

11301KSENSOR, CRANK POSITION

main90919-05047i2AZFXE..AHR20201304

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-28090i2AZFXE..AHR20201304

1302

1601

16603BPULLEY SUB-ASSY, IDLER

main16603-28030i2AZFXE..AHR20201304

16631ABRACKET, IDLER PULLEY

main16631-28020i2AZFXE..AHR20201304

16649CPLATE, IDLER PULLEY COVER

main16649-28010i2AZFXE..AHR20201304

19529ACLAMP

main19529-28030i2AZFXE..AHR20201304

8272928020

main82729-28020

9010506284

main90105-06284

9010508415

main90105-08415

9012606024

main90126-06024

9012610027

main90126-10027

9151180830

main91511-80830

91511B0614

main91511-B0614

9151281085

main91512-81085

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640

9415081041

main94150-81041

23 parts on this diagram · 1 diagram in section
