STANDARD TOOL

09110JACK ASSY

main09111-28160iAHR20201601

main09111-28190iAHR20201304-201512

sub09111-28160

09113HANDLE, JACK

main09113-44010iAHR20201304

09120BAG, TOOL

main09120-28090iAHR20201304

09130PLIERS

main99913-11500iAHR20201304

TOOL(PLANT INSTALL)-DRIVER,SPANNER,PLIERS

09135DRIVER, SCREW

main99915-10700iAHR20201304

TOOL(PLANT INSTALL)-DRIVER,SPANNER,PLIERS

09141SPANNER

main99914-10810iAHR20201304

8 X 10,TOOL(PLANT INSTALL)-DRIVER,SPANNER,PLIERS

main99914-11214iAHR20201304

12 X 14,TOOL(PLANT INSTALL)-DRIVER,SPANNER,PLIERS

09150WRENCH, HUB NUT BOX

main09150-40010iAHR20201304-201605

51960HOOK ASSY, FRONT

main51960-28070iAHR20201304

51960AHOOK ASSY, REAR

main51960-28031iAHR20201304

sub51960-28050

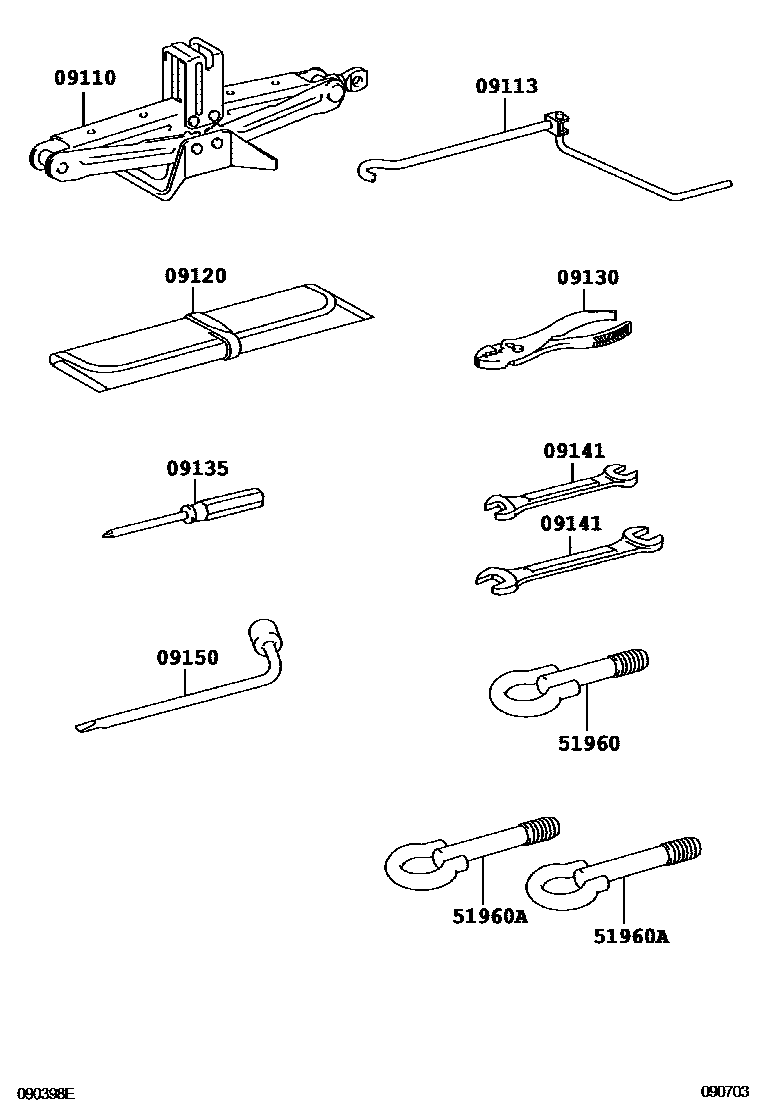

9 parts on this diagram · 1 diagram in section
