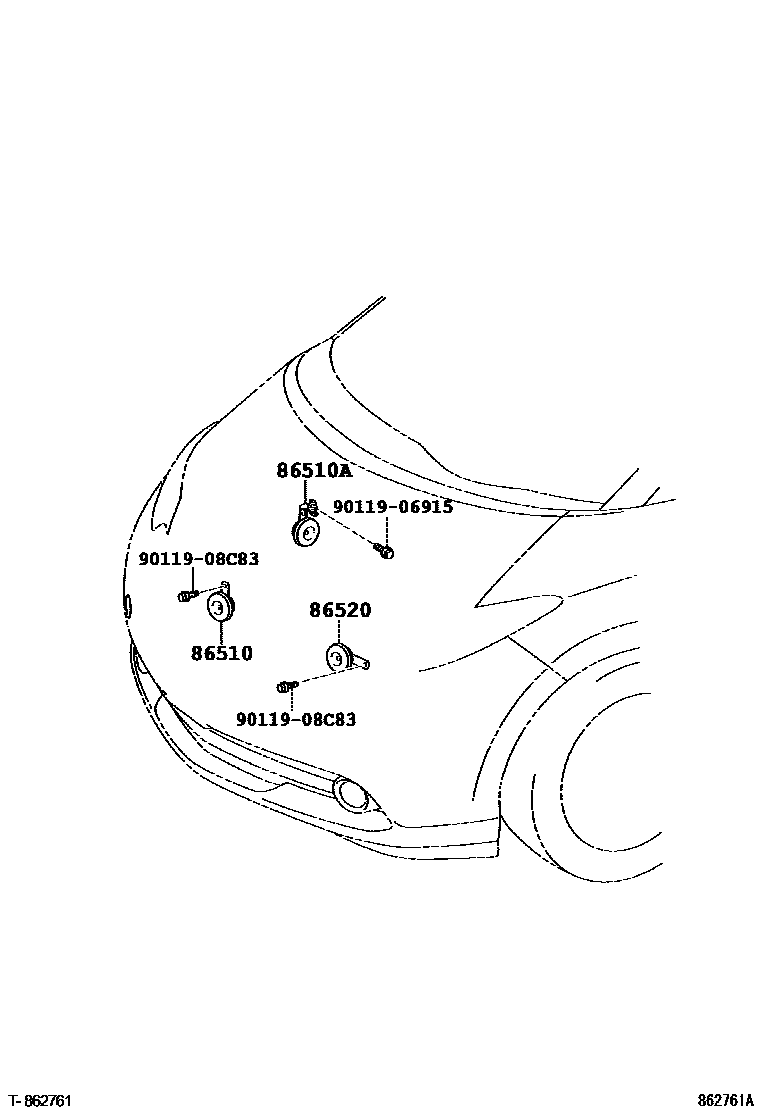

HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-20280iACR50..LHD..GL..GEN200601-200812

JORDAN SPEC

main86510-30700iACR50..ARL;GSR50..RHD200812-201906

main86510-30700iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

JORDAN SPEC

main86510-30692iGSR50..GEN201605-201709

CHINA SPEC

86510AHORN ASSY, SECURITY

main86560-28010iGSR50..GEN;ACR50..LHD..CVT201409-201605

main86560-28010iGSR50..GEN;ACR50..LHD..CVT201605

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

86520HORN ASSY, LOW PITCHED

main86520-26150iACR50..LHD..GL..GEN200601-200812

JORDAN SPEC

main86520-30610iACR50..ARL;GSR50..RHD200812-201906

main86520-30610iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

JORDAN SPEC

main86520-30602iACR50..LHD..CVT201605-201811

CHINA SPEC

9011906915

main90119-06915

9011908C83

main90119-08C83

5 parts on this diagram · 2 diagrams in section
