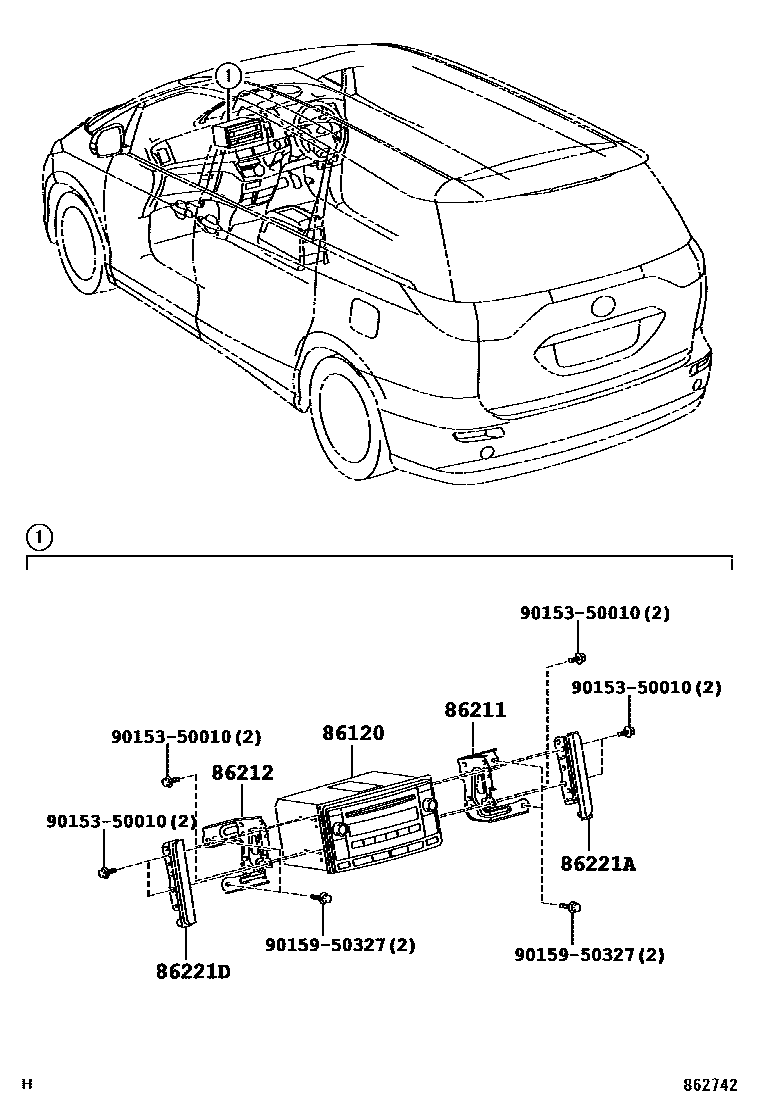

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-28550iACR50,GSR50200601-200812

FUJITSU TEN,ID=12841,AUDIO-AM/FM CD 6SPEAKER

main86120-28560iACR50,GSR50..RHD..GEN200601-200812

FUJITSU TEN,ID=12842,AUDIO-AM/FM CD-CHANGER 6SPEAKER

main86120-28590iACR50..ARL;GSR50..RHD200812-201205

FUJITSU TEN,ID=22814,AUDIO-AM/FM CD 6SPEAKER,TYPE B:REFER ILLUST.

sub86120-28591

main86120-28600iACR50..GCC;GSR50..RHD..GEN201204-201710

FUJITSUTEN,ID=100111,AUDIO-AM/FM & CD & 6SPEAKER

sub86120-28601

main86120-28600iACR50..GCC201409-201710

FUJITSUTEN,ID=100111

sub86120-28601

main86120-28601iACR50..GCC201711-201906

FUJITSUTEN,ID=100111,AUDIO-AM/FM & CD & 6SPEAKER

main86120-28601iACR50..GCC201711

FUJITSUTEN,ID=100111

main86120-42340iACR50..RHD..GEN200812-201008

FUJITSU TEN,ID=32817,AUDIO-AM/FM CD-CHANGER 6SPEAKER,TYPE B:REFER ILLUST.

sub86120-42341

main86120-52560iACR50,GSR50200601-200812

FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 6SPEAKER

main86120-52560iACR50,GSR50200812-201107

FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 6SPEAKER,TYPE A:REFER ILLUST.

86211BRACKET, RADIO, NO.1

main86211-28160iGSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN)200601-201605

main86211-28170iACR50..LHD..CVT;GSR50..LHD..GEN201204-201811

AUDIO-AVN & 6SPEAKER(CHINA)

main86211-28210iACR50..AERAS201605-201906

86212BRACKET, RADIO, NO.2

main86212-28160iGSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN)200601-201605

main86212-28170iGSR50..GEN201204-201811

AUDIO-AVN & 6SPEAKER(CHINA)

main86212-28210iACR50,GSR50..RHD..(DLX,GL)201605-201906

86221APANEL, RADIO RECEIVER

main86221-52060iACR50,GSR50200601-201107

AUDIO-AM/FM CASSETTE 6SPEAKER

86221DPANEL, RADIO RECEIVER

main86221-52050iACR50,GSR50200601-201107

AUDIO-AM/FM CASSETTE 6SPEAKER

9015350010

main90153-50010

9015950327

main90159-50327

7 parts on this diagram · 5 diagrams in section
