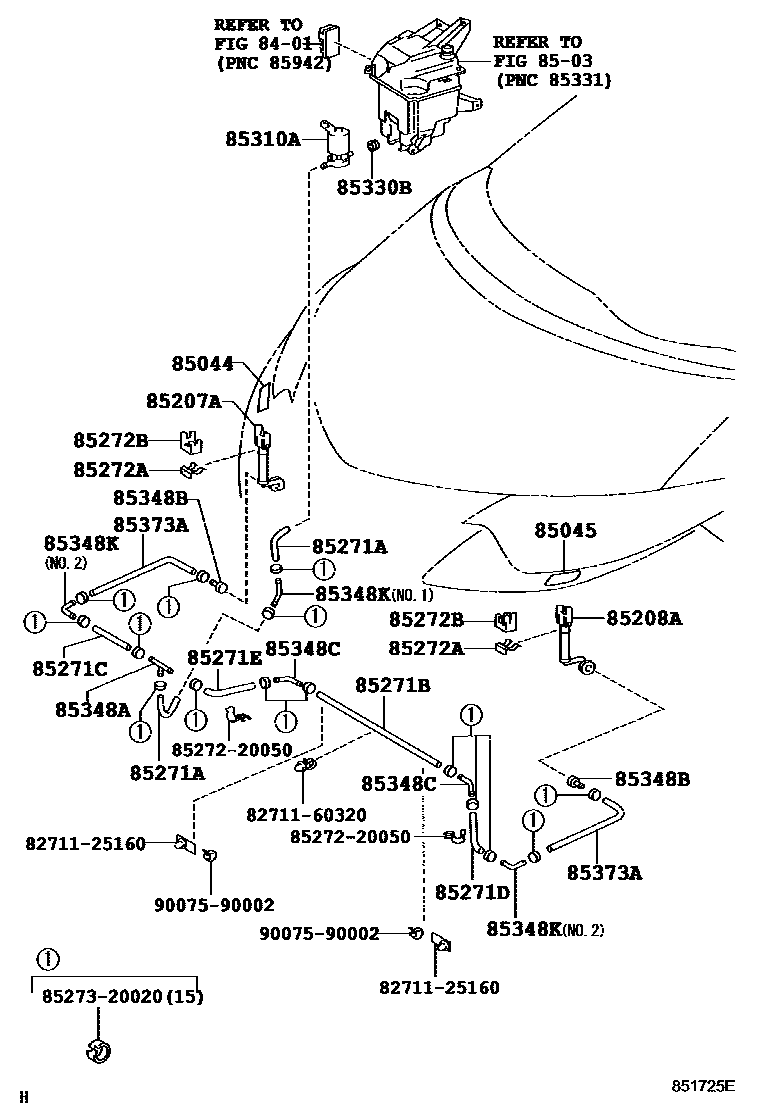

HEADLAMP CLEANER

0001 1 0002 1

8401

8503

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-28020-A0iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

SUPER WHITE 2,040

main85044-28020-A0iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

HEAD LAMP-DISCHARGE + AFS,SUPER WHITE 2,040

main85044-28020-A1iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

WHITE PEARL CS.,070

main85044-28020-A1iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,WHITE PEARL CS.,070

main85044-28020-B0iACR50,GSR50..LHD..GL..GEN200601-200812

SILVER ME.,1F7

main85044-28020-B0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,SILVER ME.,1F7

main85044-28020-B1iACR50,GSR50..LHD..GL..GEN200601-200812

MEDIUM SILVER ME.,1F8

main85044-28020-B1iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,MEDIUM SILVER ME.,1F8

main85044-28020-C0iACR50,GSR50..LHD..GL..GEN200601-200812

BLACK,202

main85044-28020-C0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,BLACK,202

main85044-28020-D0iACR50,GSR50..LHD..GL..GEN200601-200812

DK. RED M.M.,3Q3

main85044-28020-D0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,DK. RED M.M.,3Q3

main85044-28020-F0iACR50,GSR50..LHD..GL..GEN200601-200812

SILKY GOLD M.M.,5A4

main85044-28020-F0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,SILKY GOLD M.M.,5A4

main85044-28020-J0iACR50,GSR50..LHD..GL..GEN200601-200812

DK.BLUE MC.,8S6

main85044-28020-J0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,DK.BLUE MC.,8S6

main85044-28020-J1iACR50,GSR50..LHD..GL..GEN200601-200812

LT.BLUE M.M.,8S7

main85044-28020-J1iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,LT.BLUE M.M.,8S7

main85044-28030-A0iGSR50..GL;ACR50..DLX..GEN200812-201605

HEADLAMP-DISCHARGE & AFS,SUPER WHITE 2,040

main85044-28030-A0iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

SUPER WHITE 2,040

main85044-28030-A1iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN200812-201605

WHITE PEARL CS.,070

main85044-28030-A1iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

HEADLAMP-DISCHARGE & AFS,WHITE PEARL CS.,070

main85044-28030-B1iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

SILVER ME.,1F7

main85044-28030-B1iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

HEADLAMP-DISCHARGE & AFS,SILVER ME.,1F7

main85044-28030-B2iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201204

MEDIUM SILVER ME.,1F8

main85044-28030-B2iACR50,GSR50..LHD..GL..GEN200812-201205

HEADLAMP-DISCHARGE & AFS,MEDIUM SILVER ME.,1F8

main85044-28030-B3iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN201204-201605

ICE TITANIUM M.M.,1H4

main85044-28030-B3iACR50..GL..GCC;ACR50..LHD..CVT201204-201605

HEADLAMP-DISCHARGE & AFS,ICE TITANIUM M.M.,1H4

main85044-28030-C0iACR50,GSR50..LHD..GL..GEN200812-201605

BLACK,202

main85044-28030-C0iACR50,GSR50..LHD..GL..GEN200812-201605

HEADLAMP-DISCHARGE & AFS,BLACK,202

main85044-28030-D0iACR50,GSR50..LHD..GL..GEN200812-201205

HEADLAMP-DISCHARGE & AFS,DK. RED M.M.,3Q3

main85044-28030-D0iACR50,GSR50..LHD..GL..GEN200812-201204

DK. RED M.M.,3Q3

main85044-28030-D1iACR50..GL..GCC;ACR50..LHD..CVT201204-201605

HEADLAMP-DISCHARGE & AFS,DEEP RED M.M.,3R9

main85044-28030-D1iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN201204-201605

DEEP RED M.M.,3R9

main85044-28030-D2iACR50..GL..GCC;ACR50..LHD..CVT201605

RED M.M.,3R3

main85044-28030-D2iACR50..GL..GCC;ACR50..LHD..CVT201605

HEADLAMP-DISCHARGE & AFS,RED M.M.,3R3

main85044-28030-E0iACR50..GL..GCC;ACR50..LHD..CVT201409-201605

HEADLAMP-DISCHARGE & AFS,DARK SHERRY M.M.,4W4

main85044-28030-E0iACR50..GL..GCC;ACR50..LHD..CVT201409-201605

DARK SHERRY M.M.,4W4

main85044-28030-F0iGSR50..RHD..GL200812-201409

HEADLAMP-DISCHARGE & AFS,SILKY GOLD M.M.,5A4

main85044-28030-F0iACR50,GSR50..LHD..GL..GEN200812-201409

SILKY GOLD M.M.,5A4

main85044-28030-J0iACR50,GSR50..LHD..GL..GEN200812-201205

HEADLAMP-DISCHARGE & AFS,DK.BLUE MC.,8S6

main85044-28030-J0iACR50,GSR50..LHD..GL..GEN200812-201204

DK.BLUE MC.,8S6

main85044-28030-K0iACR50,GSR50..LHD..GL..GEN200812-201204

LT.PURPLE M.M.,9AE

main85044-28030-K0iACR50,GSR50..LHD..GL..GEN200812-201205

HEADLAMP-DISCHARGE & AFS,LT.PURPLE M.M.,9AE

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-28020-A0iACR50,GSR50..LHD..GL..GEN200601-200812

SUPER WHITE 2,040

main85045-28020-A0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,SUPER WHITE 2,040

main85045-28020-A1iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

HEAD LAMP-DISCHARGE + AFS,WHITE PEARL CS.,070

main85045-28020-A1iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

WHITE PEARL CS.,070

main85045-28020-B0iACR50,GSR50..LHD..GL..GEN200601-200812

SILVER ME.,1F7

main85045-28020-B0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,SILVER ME.,1F7

main85045-28020-B1iACR50,GSR50..LHD..GL..GEN200601-200812

MEDIUM SILVER ME.,1F8

main85045-28020-B1iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,MEDIUM SILVER ME.,1F8

main85045-28020-C0iACR50,GSR50..LHD..GL..GEN200601-200812

BLACK,202

main85045-28020-C0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,BLACK,202

main85045-28020-D0iACR50,GSR50..LHD..GL..GEN200601-200812

DK. RED M.M.,3Q3

main85045-28020-D0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,DK. RED M.M.,3Q3

main85045-28020-F0iACR50,GSR50..LHD..GL..GEN200601-200812

SILKY GOLD M.M.,5A4

main85045-28020-F0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,SILKY GOLD M.M.,5A4

main85045-28020-J0iACR50,GSR50..LHD..GL..GEN200601-200812

DK.BLUE MC.,8S6

main85045-28020-J0iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,DK.BLUE MC.,8S6

main85045-28020-J1iACR50,GSR50..LHD..GL..GEN200601-200812

LT.BLUE M.M.,8S7

main85045-28020-J1iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,LT.BLUE M.M.,8S7

main85045-28030-A0iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201605

HEADLAMP-DISCHARGE & AFS,SUPER WHITE 2,040

main85045-28030-A0iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN200812-201605

SUPER WHITE 2,040

main85045-28030-A1iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

WHITE PEARL CS.,070

main85045-28030-A1iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201605

HEADLAMP-DISCHARGE & AFS,WHITE PEARL CS.,070

main85045-28030-B1iACR50,GSR50..LHD..GL..GEN200812-201605

HEADLAMP-DISCHARGE & AFS,SILVER ME.,1F7

main85045-28030-B1iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201605

SILVER ME.,1F7

main85045-28030-B2iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201204

MEDIUM SILVER ME.,1F8

main85045-28030-B2iACR50,GSR50..LHD..GL..GEN200812-201205

HEADLAMP-DISCHARGE & AFS,MEDIUM SILVER ME.,1F8

main85045-28030-B3iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN201204-201605

ICE TITANIUM M.M.,1H4

main85045-28030-B3iACR50..GL..GCC;ACR50..LHD..CVT201204-201605

HEADLAMP-DISCHARGE & AFS,ICE TITANIUM M.M.,1H4

main85045-28030-C0iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN200812-201605

BLACK,202

main85045-28030-C0iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN200812-201605

HEADLAMP-DISCHARGE & AFS,BLACK,202

main85045-28030-D0iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201204

DK. RED M.M.,3Q3

main85045-28030-D0iACR50,GSR50..LHD..GL..GEN200812-201205

HEADLAMP-DISCHARGE & AFS,DK. RED M.M.,3Q3

main85045-28030-D1iACR50..GL..GCC;ACR50..LHD..CVT201204-201605

HEADLAMP-DISCHARGE & AFS,DEEP RED M.M.,3R9

main85045-28030-D1iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN201204-201605

DEEP RED M.M.,3R9

main85045-28030-D2iACR50..GL..GCC;ACR50..LHD..CVT201605

RED M.M.,3R3

main85045-28030-D2iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN201605

HEADLAMP-DISCHARGE & AFS,RED M.M.,3R3

main85045-28030-E0iACR50..GL..GCC;ACR50..LHD..CVT201409-201605

DARK SHERRY M.M.,4W4

main85045-28030-E0iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN201409-201605

HEADLAMP-DISCHARGE & AFS,DARK SHERRY M.M.,4W4

main85045-28030-F0iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN200812-201409

HEADLAMP-DISCHARGE & AFS,SILKY GOLD M.M.,5A4

main85045-28030-F0iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN200812-201409

SILKY GOLD M.M.,5A4

main85045-28030-J0iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201204

DK.BLUE MC.,8S6

main85045-28030-J0iGSR50..RHD..GL200812-201205

HEADLAMP-DISCHARGE & AFS,DK.BLUE MC.,8S6

main85045-28030-K0iACR50,GSR50..LHD..GL..GEN200812-201205

HEADLAMP-DISCHARGE & AFS,LT.PURPLE M.M.,9AE

main85045-28030-K0iACR50,GSR50..LHD..GL..GEN200812-201204

LT.PURPLE M.M.,9AE

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-28020iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS

main85207-28030iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201605

HEADLAMP-DISCHARGE & AFS

main85207-28030iGSR50..RHD..GEN201204-201409

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-28020iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS

main85208-28030iGSR50..GL..(ARL,GCC);ACR50..RHD..(DLX,GL)..GEN;ACR50,GSR50..LHD..ATM..GEN200812-201605

HEADLAMP-DISCHARGE & AFS

main85208-28030iGSR50..RHD..GEN201204-201409

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-50020iACR50,GSR50..LHD..GL..GEN200812-201605

HEADLAMP-DISCHARGE & AFS

main85375-50020iGSR50..RHD..GEN201204-201409

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-14400iGSR50..GL..(ARL,GCC);ACR50..RHD..(DLX,GL)..GEN;ACR50,GSR50..LHD..ATM..GEN200812-201605

L=170

main85375-14400iACR50,GSR50..LHD..GL..GEN200812-201605

L=170,HEADLAMP-DISCHARGE & AFS

main85375-20171iACR50,GSR50..LHD..GL..GEN200601-200812

L=60

main85375-20171iACR50,GSR50..LHD..GL..GEN200601-200812

L=60,HEAD LAMP-DISCHARGE + AFS

85271BHOSE, HEADLAMP CLEANER, NO.3

main85271-87706iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

L=570,HEAD LAMP-DISCHARGE + AFS

main85271-87706iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

L=570

main85375-20190iGSR50..RHD..GL200812-201605

L=90,HEADLAMP-DISCHARGE & AFS

main85375-20190iGSR50..RHD..GEN200812-201605

L=90

85271CHOSE, HEADLAMP CLEANER, NO.4

main85375-22100iACR50,GSR50..LHD..GL..GEN200812-201002

L=760

main85375-22100iACR50,GSR50..LHD..GL..GEN200812-201002

L=760,HEADLAMP-DISCHARGE & AFS

main90445-14039iACR50,GSR50..LHD..GL..GEN200601-200812

L=220

main90445-14039iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

L=220,HEAD LAMP-DISCHARGE + AFS

main90445-14072iACR50,GSR50..LHD..GL..GEN201002-201605

*H,L=750

main90445-14072iACR50,GSR50..LHD..GL..GEN201002-201605

*H,L=750,HEADLAMP-DISCHARGE & AFS

85271DHOSE, HEADLAMP CLEANER, NO.5

main90075-15017iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201605

L=120,HEADLAMP-DISCHARGE & AFS

main90075-15017iACR50,GSR50..LHD..GL..GEN200812-201605

L=120

main90075-15045iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

L=470

main90075-15045iACR50,GSR50..LHD..GL..GEN200601-200812

L=470,HEAD LAMP-DISCHARGE + AFS

85271EHOSE, HEADLAMP CLEANER, NO.6

main90075-15051iACR50,GSR50..LHD..GL..GEN200812-201605

L=140

main90075-15051iACR50,GSR50..LHD..GL..GEN200812-201605

L=140,HEADLAMP-DISCHARGE & AFS

main90445-14056iACR50,GSR50..LHD..GL..GEN200601-200812

L=240

main90445-14056iACR50,GSR50..LHD..GL..GEN200601-200812

L=240,HEAD LAMP-DISCHARGE + AFS

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-28030iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

HEADLAMP-DISCHARGE & AFS

main85272-28030iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS

main85272-28030iGSR50..RHD..GEN201204-201409

85272BCLAMP, HEADLAMP CLEANER, NO.2

main85272-28040iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

RH

main85272-28040iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,RH

main85272-28050iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

RH

main85272-28050iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

HEADLAMP-DISCHARGE & AFS,RH

main85273-28020iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

HEAD LAMP-DISCHARGE + AFS,LH

main85273-28020iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

LH

main85273-28030iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

HEADLAMP-DISCHARGE & AFS,LH

main85273-28030iACR50,GSR50..LHD..GL..GEN200812-201605

LH

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85280-30040iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS

main85280-30040iACR50,GSR50..LHD..GL..GEN200812-201605

HEADLAMP-DISCHARGE & AFS

main85280-30040iGSR50..RHD..GEN201204-201409

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS

main90099-32089iACR50,GSR50..LHD..GL..GEN200812-201605

HEADLAMP-DISCHARGE & AFS

main90099-32089iGSR50..RHD..GEN201204-201409

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS

main85352-12010iACR50,GSR50..LHD..GL..GEN200812-201605

HEADLAMP-DISCHARGE & AFS

main85352-12010iGSR50..RHD..GEN201204-201409

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85279-33040iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS

main85379-89131iACR50..RHD..GL;ACR50,GSR50..GL..GCC200812-201605

HEADLAMP-DISCHARGE & AFS

main85379-89131iGSR50..RHD..GEN201204-201409

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85279-33040iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

HEADLAMP-DISCHARGE & AFS

main85279-33040iGSR50..RHD..GEN201204-201409

main85279-60070iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main85279-60007iACR50..GL..GCC;ACR50..LHD..CVT200812-201605

HEADLAMP-DISCHARGE & AFS

main85279-60007iGSR50..RHD..GEN201204-201409

main85379-22080iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

HEAD LAMP-DISCHARGE + AFS,NO.2

main85379-22080iACR50,GSR50..LHD..GL..GEN200601-200812

NO.2

main85379-95A09iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

NO.1

main85379-95A09iACR50,GSR50..LHD..GL..GEN200601-200812

HEAD LAMP-DISCHARGE + AFS,NO.1

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85276-60160iACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL200601-200812

L=180,HEAD LAMP-DISCHARGE + AFS

main85276-60160iACR50,GSR50..LHD..GL..GEN200601-200812

L=180

8271125160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-25160

8271160320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60320

8527220050CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20050

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

9007590002

main90075-90002

26 parts on this diagram · 2 diagrams in section
