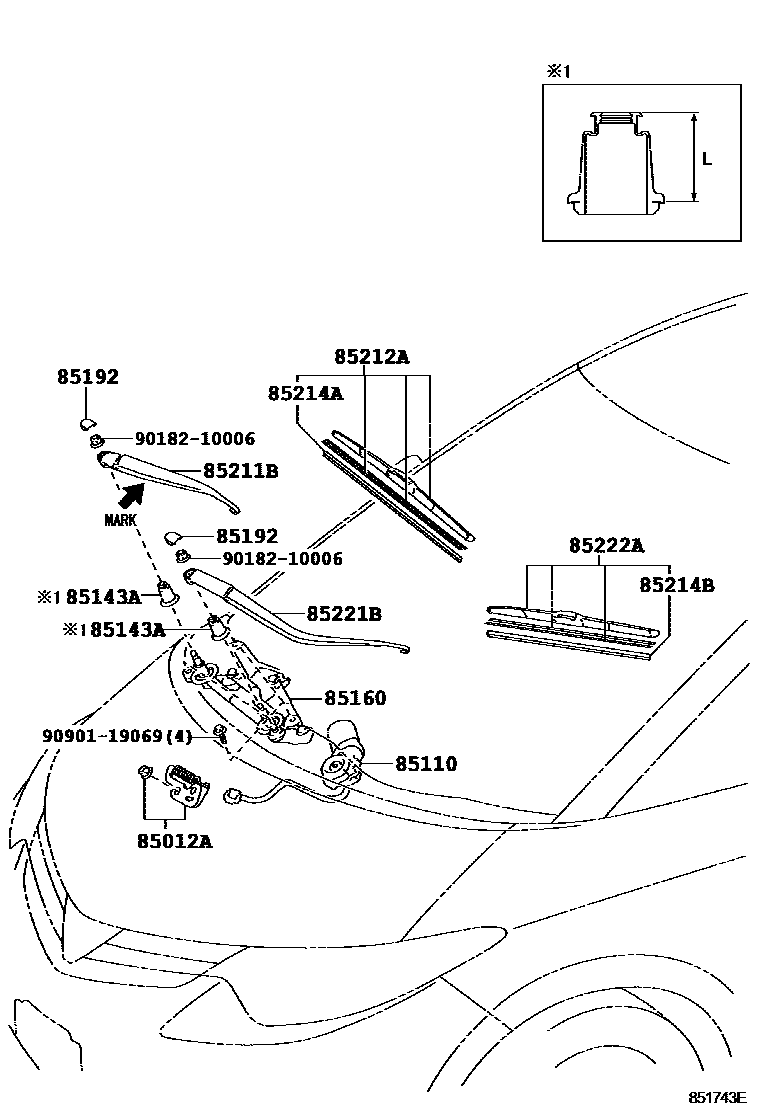

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-28010iACR50,GSR50..LHD200601-201605

main85012-58010iGSR50..RHD..GEN200601-201906

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28040iACR50..RHD..GEN200601-201605

main85110-28260iGSR50..GEN;ACR50..LHD..CVT201509-201605

main85110-28270iACR50,GSR50..RHD..(DLX,GL)201605-201906

main85110-28290iACR50..LHD..CVT;GSR50..LHD..GEN200601-201605

85143APACKING, WIPER LINK

main85143-28050iACR50200601-200607

L=39.7

sub85143-28100

main85143-28051iACR50,GSR50200607-200809

L=44.7

sub85143-28052

main85143-28052iACR50..ARL;GSR50..RHD200810-201605

L=44.7

main85143-28052iACR50..AERAS201605-201906

85160LINK ASSY, WINDSHIELD WIPER

main85150-28190iACR50..RHD200601-200607

main85150-28191iACR50..AERAS200607-201906

main85150-28192iACR50,GSR50..RHD200908-201001

sub85150-28191

main85150-28200iACR50..LHD200601-200607

main85150-28201iACR50,GSR50..LHD200607-201605

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iACR50,GSR50200601-201906

85211BARM, FRONT WIPER, RH

main85211-28180iACR50..RHD200601-200607

MARK 1913

main85211-28181iGSR50..RHD..GEN200607-201605

MARK 1989

main85211-28181iACR50..RHD..GEN200812-201906

main85211-28190iACR50,GSR50..LHD200601-201605

85212ABLADE, FR WIPER, RH

main85212-28160iGSR50..RHD200601-201906

main85212-28170iACR50,GSR50..LHD200601-201605

85214ARUBBER, WIPER, RH

main85214-28080iACR50,GSR50..RHD..(DLX,GL)200601-201906

main85214-28090iACR50,GSR50..LHD200601-200812

85214BRUBBER, WIPER, LH

main85214-28080iACR50,GSR50..LHD200601-200812

main85214-28090iGSR50..RHD..GEN200601-201906

85221BARM, FRONT WIPER, LH

main85221-28140iACR50,GSR50..RHD200601-201102

sub85221-28141

main85221-28141iACR50..AERAS201103-201906

main85221-28150iACR50..LHD200601-200607

MARK 1915

main85221-28151iACR50,GSR50..LHD200812-201605

main85221-28151iACR50,GSR50..LHD200607-200812

MARK 1990

85222ABLADE, FR WIPER, LH

main85222-28160iACR50..AERAS200601-201906

main85222-28170iACR50,GSR50..LHD200601-201605

9018210006

main90182-10006

9090119069

main90901-19069

13 parts on this diagram · 2 diagrams in section
