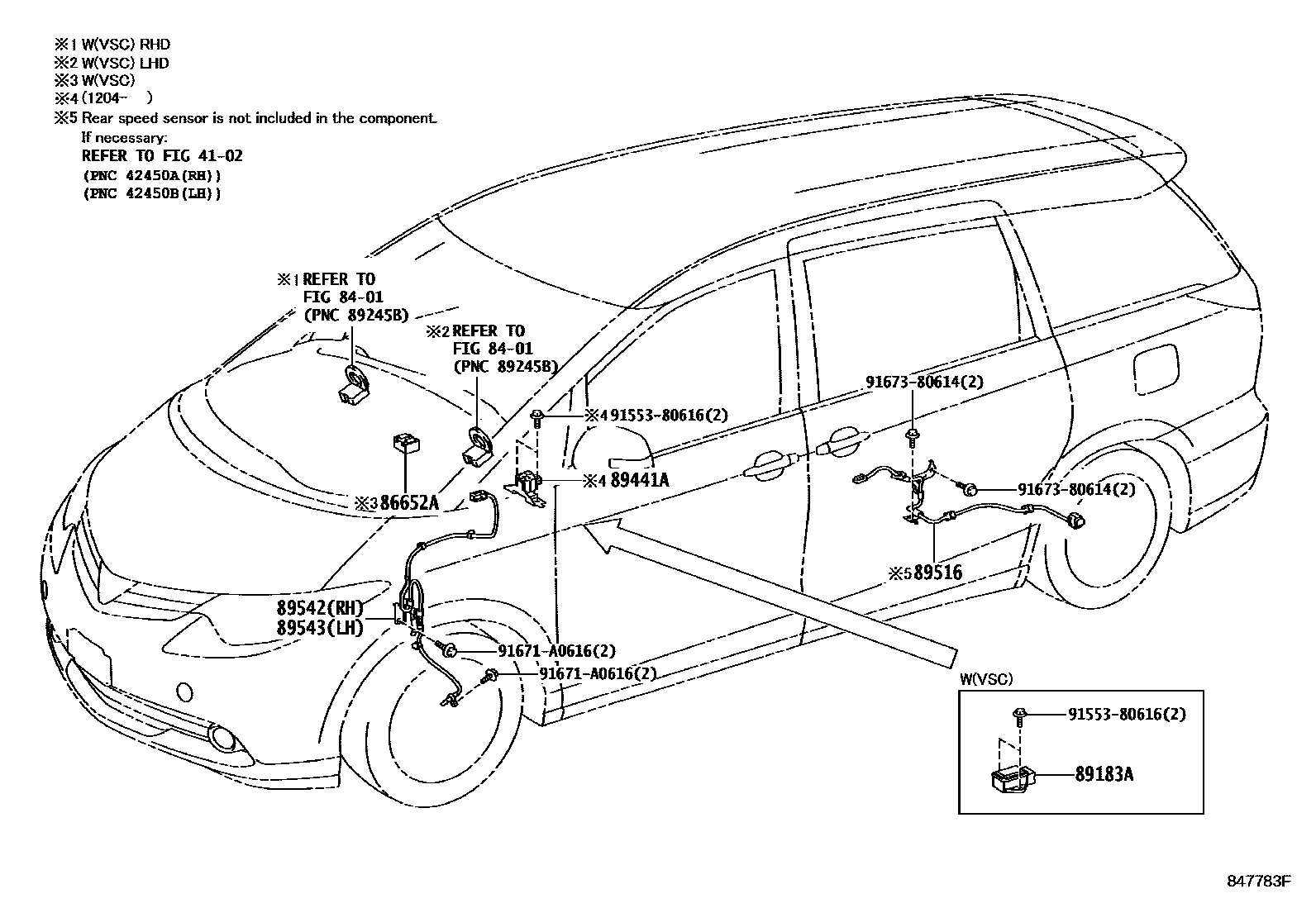

ABS & VSC

0001 1 0002 1

4102

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200812

VSC-WITH

main86652-50010iACR50..ARL200812-201205

VSC-WITH

89183ASENSOR, YAWRATE

main89183-28010iGSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..CVT..(AERAS,DLX)201204-201605

main89183-28020iACR50,GSR50..DLX,GL201605

89441ASENSOR, DECELERATION

main89440-28080iACR50..CVT..GL201204-201406

main89440-28081iACR50..CVT..GL201407-201409

89516WIRE, SKID CONTROL SENSOR

main89516-28050iACR50,GSR50..DLX,GL201605

RH

main89516-28060iACR50..ARL;GSR50..RHD200812-201205

LH

89542SENSOR, SPEED, FRONT RH

main89542-28100iGSR50..RHD..GEN201204-201409

89543SENSOR, SPEED, FRONT LH

main89543-28100iACR50,GSR50200601-200812

9155380616

main91553-80616

91671A0616

main91671-A0616

9167380614

main91673-80614

11 parts on this diagram · 2 diagrams in section
