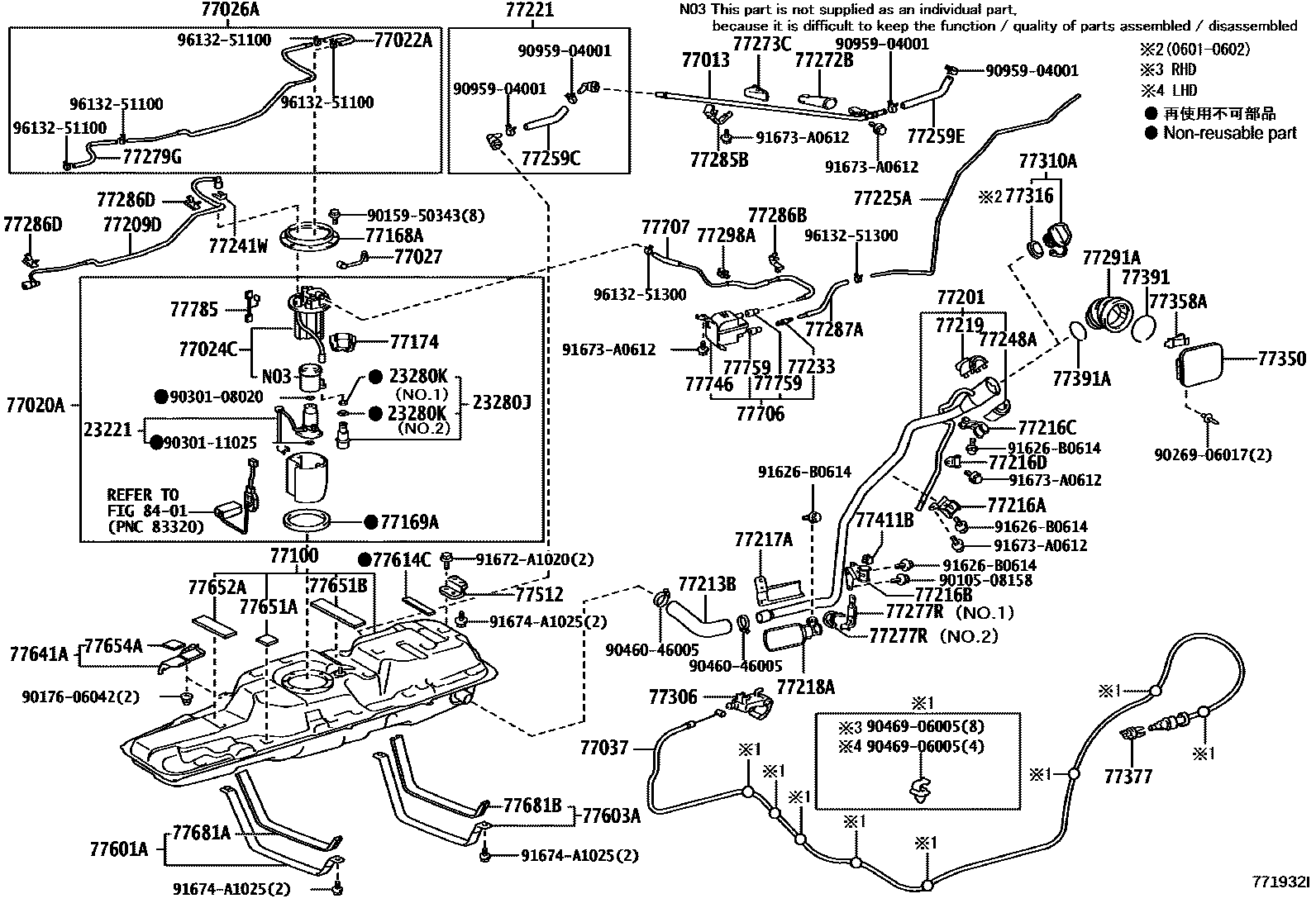

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE

23221PUMP, FUEL

main23220-28230i2AZFE..ACR50..LHD..GL..GEN200601-200812

JORDAN SPEC

sub23220-28210

main23220-28300i2AZFE..ACR50..LHD..GL..GEN200812-201111

JORDAN SPEC

main23220-28301supersedes 23220-28301i2AZFE..ACR50..RHD;2AZFE..ACR50..GCC;2AZFE..ACR50..LHD..DLX..GEN201111-201205

main23220-31230i2GRFE..GSR50..LHD..GEN200611-200812

JORDAN SPEC

main23220-31350supersedes 23220-31240i2GRFE..GSR50..LHD..GEN200812-201111

TAIWAN SPEC

main23220-31351i2GRFE..GSR50201111-201205

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2GRFE..GSR50..RHD..GEN201204-201409

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2AZFE..ACR50..AERAS201605-201906

NO.1

main90301-15024i2AZFE,2GRFE..ACR50,GSR50..DLX,GL201605

NO.2

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-28080iGSR50..RHD..GEN201204-201409

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-28080iACR50..RHD;ACR50..GCC;ACR50..LHD..DLX..GEN200601-200812

JORDAN SPEC

sub77020-28081

main77020-28091iACR50..CVT;ACR50..4FC..(GCC,GEN)201204-201605

main77020-28092iACR50..DLX,GL201805

main77020-28100iGSR50..LHD..GEN200611-200812

JORDAN SPEC

main77020-28111iGSR50201605-201804

main77020-28112iGSR50201805

main77020-58010supersedes 77020-28111iGSR50..LHD..GEN200812-201110

TAIWAN SPEC

main77020-58020supersedes 77020-28091iACR50..RHD;ACR50..GCC;ACR50..LHD..DLX..GEN200812-201110

JORDAN SPEC

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77279-28090iACR50..ARL;GSR50..RHD200812-201205

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-28020iACR50..RHD;ACR50..GCC;ACR50..LHD..DLX..GEN200601-200604

main77024-28021iGSR50..LHD..GEN200604-200702

sub77024-28022

main77024-28050iGSR50..LHD..GEN200812-200902

sub77024-28051

main77024-28060iACR50,GSR50201605-201804

main77024-28061iACR50,GSR50201805-201910

main77024-58010supersedes 77024-28040iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-200901

JORDAN SPEC

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-28130iACR50,GSR50200601-200812

main77026-28131iACR50,GSR50..DLX,GL201605

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-28010iGSR50..LHD;ACR50..GCC,GEN200812-201204

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-28080iGSR50..RHD..GEN201204-201409

main77037-28090iACR50,GSR50..LHD201204-201605

77100TANK ASSY, FUEL

main77001-28550iACR50,GSR50200601-200704

main77001-28551iACR50..ARL;GSR50..RHD200812-201205

main77001-28552iACR50..AERAS201612-201906

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iACR50,GSR50200601-200812

77174SUPPORT, FUEL SUCTION, NO.1

main77174-12020iACR50,GSR50200601-200812

main77174-72020supersedes 77174-72020iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28260iGSR50..LHD;ACR50..GCC,GEN200812-201204

main77201-28270iACR50200601-200604

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-28050iACR50,GSR50200601-200812

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-28050iGSR50..LHD;ACR50..GCC,GEN200812-201204

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-28160iACR50,GSR50200601-200812

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-28170iACR50,GSR50200601-200812

77216CSUPPORT, FUEL TANK FILLER PIPE NO.3

main77216-28180iACR50,GSR50200601-200812

77216DSUPPORT, FUEL TANK FILLER PIPE NO.4

main77216-28190iACR50,GSR50..DLX,GL201605

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-28200iACR50,GSR50200601-200812

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77216-28220iACR50,GSR50200601-200812

main77216-28221iACR50,GSR50201110-201111

main77216-28320iGSR50..LHD;ACR50..GCC,GEN201111-201204

77219COVER, FUEL TANK FILLER PIPE

main77219-33040iACR50200601-200604

77221TUBE, FUEL TANK BREATHER, NO.1

main77221-28110iACR50,GSR50200601-200812

77225ATUBE, FUEL TANK BREATHER, NO.5

main77225-28040iACR50..AERAS201605-201906

main77225-28050iACR50200601-200604

77233JOINT, FUEL HOSE

main77233-28020iACR50200601-200604

77241WCLIP, TUBE JOINT

main77241-33011iACR50,GSR50..DLX,GL201605

main77241-60320iACR50,GSR50200601-200812

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-33040iACR50200601-200604

77259CHOSE, FUEL

main77259-28090iACR50..LHD..GL..GEN200601-200812

JORDAN SPEC

77259EHOSE, FUEL

main77259-28080iGSR50..LHD;ACR50..GCC,GEN200812-201204

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-28050iGSR50..RHD..GEN201204-201409

77273CSUPPORT, BREATHER TUBE, NO.2

main77273-28010iACR50..ARL;GSR50..RHD200812-201205

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-28050iGSR50..RHD..GEN201204-201409

NO.1

main77277-28060iGSR50..LHD;ACR50..GCC,GEN200812-201204

NO.2

77279GHOSE, FUEL, NO.2

main77279-28100iACR50,GSR50200812-201202

main77279-28101iGSR50..LHD;ACR50..GCC,GEN201203-201204

77285BCLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-28030iACR50,GSR50200601-200812

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77285-28040iACR50,GSR50200601-200812

77286DCLAMP, FUEL TUBE, NO.2

main77286-32070×2iACR50,GSR50200601-200810

main77286-58010×2iACR50,GSR50200811-200812

77287AHOSE, FUEL

main95325-09020iACR50200601-200604

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-28040iACR50,GSR50200601-200812

77298ACLAMP, FUEL TUBE, NO.4

main77298-30170iACR50..ARL;GSR50..RHD200812-201205

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28060-C0iACR50,GSR50200601-200812

BLACK

main77306-58020-C0iGSR50..LHD;ACR50..GCC,GEN201004-201204

BLACK

77310ACAP ASSY, FUEL TANK

main77300-52030iACR50,GSR50200601-200812

77316GASKET, FUEL TANK CAP

main77316-52020iACR50200601-200602

main77316-52040iGSR50..LHD;ACR50..GCC,GEN200812-201204

77350LID ASSY, FUEL FILLER OPENING

main77350-28030iACR50,GSR50200601-200812

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-30060iACR50,GSR50200601-200812

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iACR50,GSR50200601-200812

77391RING, FUEL INLET BOX

main77391-28010iACR50,GSR50200601-200812

77391ARING, FUEL INLET BOX

main77391-28020iACR50,GSR50200601-200812

77411BSUPPORT, FUEL TUBE GROMMET, NO.1

main77411-20050×2iACR50,GSR50200601-200812

77512BRACKET, FUEL TANK, REAR

main77512-28020iACR50,GSR50200601-200812

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-28100iACR50,GSR50200601-200812

main77601-28150iACR50,GSR50201603-201605

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-28030iACR50,GSR50200601-200812

main77602-28070iACR50,GSR50201603-201605

77614CSEAL, FUEL TANK COVER

main77614-52020×2iACR50,GSR50200601-200807

77641APROTECTOR, FUEL TANK, NO.1

main77641-28120iACR50,GSR50200601-200812

77651ACUSHION, FUEL TANK, NO.1

main77651-20090×4iACR50..LHD..GL..GEN200601-200704

JORDAN SPEC

77651BCUSHION, FUEL TANK

main77651-35060iACR50..LHD..GL..GEN200601-200704

JORDAN SPEC

77652ACUSHION, FUEL TANK, NO.2

main77652-30070iACR50..LHD..GL..GEN200601-200704

JORDAN SPEC

77654ACUSHION, FUEL TANK, NO.4

main77651-21020iACR50..LHD..GL..GEN200601-200812

JORDAN SPEC

77681ASEAT, FUEL TANK BAND

main77616-68010iACR50,GSR50200601-200812

77681BSEAT, FUEL TANK BAND

main77681-28060iGSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN)201204-201605

77706FILTER SUB-ASSY, CHARCOAL CANISTER

main77706-28010iACR50200601-200604

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-28010iACR50..RHD;ACR50..GCC;ACR50..LHD..DLX..GEN200601-200604

main77707-28020supersedes 77707-28020iGSR50;ACR50..RHD;ACR50..GCC;ACR50..LHD..DLX..GEN200604-200812

JORDAN SPEC

77746FILTER, CHARCOAL CANISTER, NO.2

main77745-12050iGSR50..RHD..GEN201302-201409

main77745-52030iGSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN)201204-201301

main77746-33010iACR50200601-200604

77759HOSE, CHARCOAL CANISTER

main77759-52010×2iACR50200601-200604

77785HARNESS, FUEL PUMP

main77785-28010iACR50,GSR50200601-200812

main77785-28030supersedes 77785-28030iGSR50;ACR50..RHD;ACR50..GCC;ACR50..LHD..DLX..GEN201111-201205

8401

9010508158

main90105-08158

9015950343

main90159-50343

9017606042

main90176-06042

9026906017

main90269-06017

9030108020

main90301-08020

9030111025

main90301-11025

9046046005

main90460-46005

9046906005

main90469-06005

9095904001

main90959-04001

91626B0614

main91626-B0614

91672A1020

main91672-A1020

91673A0612

main91673-A0612

91674A1025

main91674-A1025

9613251100

main96132-51100

9613251300

main96132-51300

82 parts on this diagram · 4 diagrams in section
