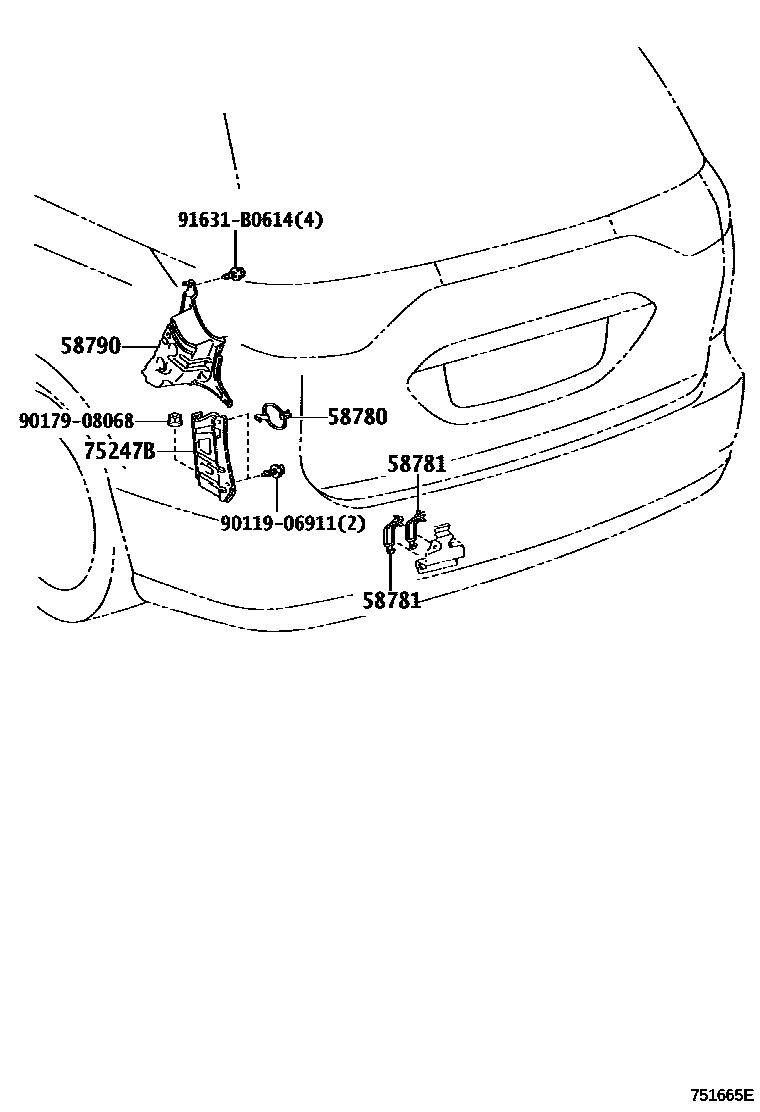

TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-95J01iACR50,GSR50200601-201906

58781BAND, TOOL BAG

main58780-58010iGSR50..ARL;ACR50,GSR50..LHD..GEN200601-201205

SPARE TIRE-T145 90D16

main58780-58010iACR50..CVT..GL201003-201906

main58780-58010iGSR50..ARL;ACR50..AERAS;ACR50..LHD..CVT;GSR50..LHD..GEN201204-201605

SPARE TIRE-GROUND TIRE

58790CARRIER ASSY, JACK

main58790-28040iACR50,GSR50200601-200912

main58790-28041iGSR50..LHD;ACR50..GCC,GEN200912-201906

75247BSUPPORT, TOOL BOX

main75247-28040iACR50,GSR50200601-201906

9011906911

main90119-06911

9017908068

main90179-08068

91631B0614

main91631-B0614

7 parts on this diagram · 1 diagram in section
