MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-28040iGSR50..LHD;ACR50..GCC,GEN200601-201906

75533MOULDING, WINDSHIELD, OUTSIDE RH

main76003-28010iACR50,GSR50200601-201906

75534MOULDING, WINDSHIELD, OUTSIDE LH

main76004-28010iACR50,GSR50200601-201906

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-28040iACR50,GSR50200601-201906

75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-28050iACR50,GSR50200601-201906

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75545-28061iACR50,GSR50200601-201906

RH,NO.1

main75545-28070iGSR50..LHD;ACR50..GCC,GEN200601-201906

NO.2

main75545-28080iACR50..ARL;GSR50..RHD200601-201906

NO.3

main75545-28090iACR50..AERAS200601-201906

NO.4

main75545-28101iGSR50..RHD..GEN200601-201906

RH,NO.5

main75546-28030iACR50..AERAS200601-201906

LH,NO.1

main75546-28050iACR50,GSR50200601-201906

LH,NO.5

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-28070iACR50,GSR50200601-201906

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-28070iACR50,GSR50200601-201906

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52040iACR50,GSR50200601-201906

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-28010iACR50,GSR50200601-201906

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-28010iACR50,GSR50200601-201906

9026906013

main90269-06013

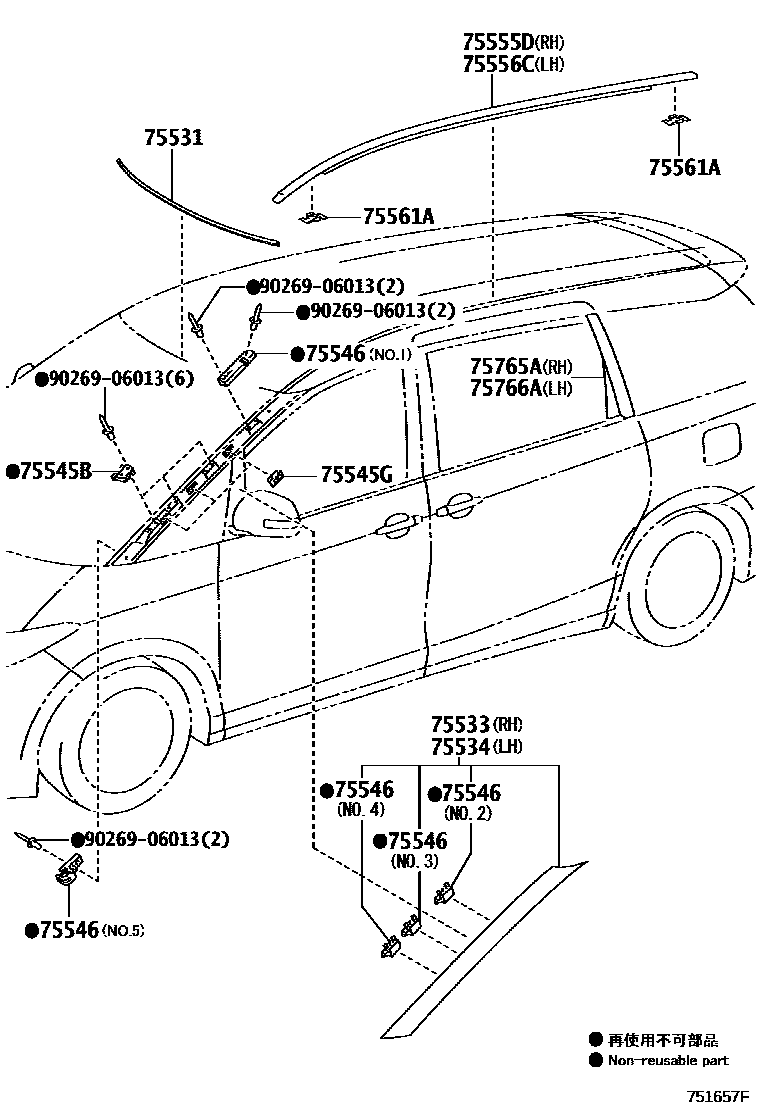

12 parts on this diagram · 1 diagram in section
