EPC Data

SEAT BELT

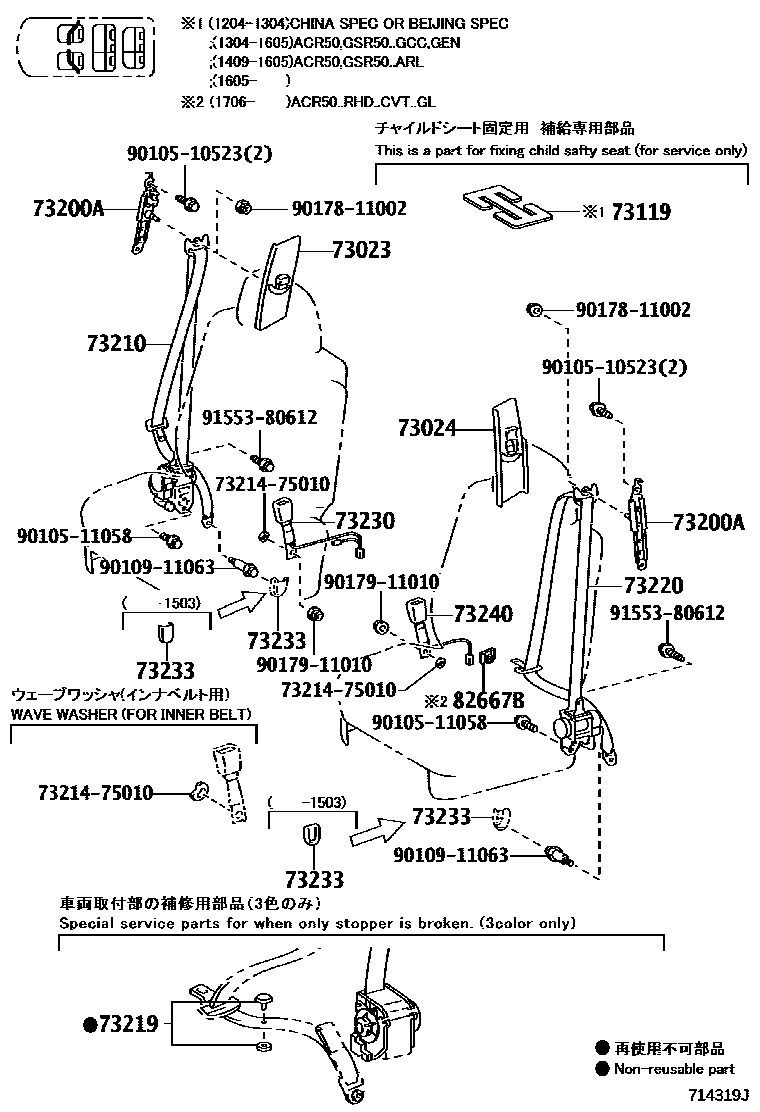

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-30010-A3i201204-201605
SHELL,TRIM0#
sub73023-30010
main73023-30010-B2i201204-201605
LT.GRAY,TRIM2#
sub73023-30010
main73023-30010-B2i200601-201205
LT.GRAY,TRIM1#
sub73023-30010
main73023-30010-C0i201605-201906
BLACK,TRIM2#
sub73023-30010
main73023-30010-E0i200601-201205
GREGE,TRIM4#
sub73023-30010
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-30010-A3i201204-201605
SHELL,TRIM0#
sub73024-30010
main73024-30010-B2i201204-201605
LT.GRAY,TRIM2#
sub73024-30010
main73024-30010-B2i200601-201205
LT.GRAY,TRIM1#
sub73024-30010
main73024-30010-C0i201605-201906
BLACK,TRIM2#
sub73024-30010
main73024-30010-E0i200601-201205
GREGE,TRIM4#
sub73024-30010
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i201304-201906
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i201507-201906
main73200-53010i200601-201506
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-28320-C1i200601-201006
BLACK,TRIM1#
sub73210-28320
main73210-28320-C2i201006-201205
BLACK,TRIM1#
sub73210-28320
main73210-28320-E0i200601-200812
SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200601-201205
GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200601-200812
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200601-200812
PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200601-200812
PHILIPPINES SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200601-200812
JORDAN SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200601-200812
GUATEMALA SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200601-200812
HONDURAS SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200601-200812
EL SALVADOR SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200812-201204
TAIWAN SPEC,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200812-201204
PHILIPPINES SPEC,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200812-201204
JORDAN SPEC,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200812-201204
GUATEMALA SPEC,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200812-201204
HONDURAS SPEC,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200812-201204
EL SALVADOR SPEC,GREGE,TRIM4#
sub73210-28320
main73210-28320-E0i200812-201204
VENEZUELA SPEC,GREGE,TRIM4#
sub73210-28320
main73210-28790-E0i200601-200812
GREGE,TRIM4#
main73210-28800-A1i201204-201308
IVORY,TRIM0#
sub73210-28801
main73210-28800-C1i201204-201308
BLACK,TRIM2#
sub73210-28801
main73210-28801-A1i201309-201605
IVORY,TRIM0#
main73210-28801-C1i201309-201409
BLACK,TRIM2#
main73210-28801-C2i201409-201605
BLACK,TRIM2#
main73210-28802-A1i201605
IVORY,TRIM0#
main73210-28802-C2i201605-201906
BLACK,TRIM2#
main73210-28810-E0i200812-201204
GREGE,TRIM4#
73219STOPPER, TONGUE PLATE
main73219-33010i200601-201906
BLACK
main73219-33020i200601-201906
GRAY
main73219-33030i200601-201906
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-28220-C1i200601-201006
BLACK,TRIM1#
sub73220-28220
main73220-28220-C2i201006-201205
BLACK,TRIM1#
sub73220-28220
main73220-28220-E0i200601-201205
GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200601-200812
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200601-200812
PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200601-200812
PHILIPPINES SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200601-200812
JORDAN SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200601-200812
GUATEMALA SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200601-200812
HONDURAS SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200601-200812
EL SALVADOR SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200601-200812
SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200812-201204
TAIWAN SPEC,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200812-201204
PHILIPPINES SPEC,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200812-201204
JORDAN SPEC,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200812-201204
GUATEMALA SPEC,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200812-201204
HONDURAS SPEC,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200812-201204
EL SALVADOR SPEC,GREGE,TRIM4#
sub73220-28220
main73220-28220-E0i200812-201204
VENEZUELA SPEC,GREGE,TRIM4#
sub73220-28220
main73220-28760-E0i200601-200812
GREGE,TRIM4#
main73220-28770-A1i201204-201308
IVORY,TRIM0#
sub73220-28771
main73220-28770-C1i201204-201308
BLACK,TRIM2#
sub73220-28771
main73220-28771-A1i201309-201605
IVORY,TRIM0#
main73220-28771-C1i201309-201409
BLACK,TRIM2#
main73220-28771-C2i201409-201605
BLACK,TRIM2#
main73220-28772-A1i201605
IVORY,TRIM0#
main73220-28772-C2i201605-201906
BLACK,TRIM2#
main73220-28810-E0i200812-201204
GREGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-28390-E0i200601-200812
PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200601-200812
PHILIPPINES SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200601-200812
JORDAN SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200601-200812
GUATEMALA SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200601-200812
HONDURAS SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200601-200812
EL SALVADOR SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200601-201204
GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200601-200812
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200812-201204
GUATEMALA SPEC,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200812-201204
HONDURAS SPEC,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200812-201204
EL SALVADOR SPEC,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200812-201204
VENEZUELA SPEC,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200812-201204
TAIWAN SPEC,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200812-201204
PHILIPPINES SPEC,GREGE,TRIM4#
sub73230-28390
main73230-28390-E0i200812-201204
JORDAN SPEC,GREGE,TRIM4#
sub73230-28390
main73230-28440-E0i200601-201205
GREGE,TRIM4#
sub73230-28440
main73230-28450-E0i200812-201204
GREGE,TRIM4#
sub73230-28450
main73230-28480-E0i200601-200812
GREGE,TRIM4#
main73230-28480-E0i200601-200812
PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT,GREGE,TRIM4#
main73230-28490-B0i200601-201006
DK.GRAY,TRIM1#
sub73230-28490
main73230-28490-C0i201006-201205
BLACK,TRIM1#
sub73230-28490
main73230-28490-E0i200601-201205
GREGE,TRIM4#
sub73230-28490
main73230-28570-A0i201204-201605
SHELL,TRIM0#
main73230-28570-C0i201204-201605
BLACK,TRIM2#
main73230-28571-C0i201605-201910
BLACK,TRIM2#
main73230-28590-A0i201204-201605
SHELL,TRIM0#
main73230-28590-C0i201205-201605
BLACK,TRIM2#
main73230-28591-C0i201605-201910
BLACK,TRIM2#
main73230-28620-A0i201204-201605
SHELL,TRIM0#
sub73230-12710
main73230-28620-C0i201204-201605
BLACK,TRIM2#
sub73230-12710
main73230-28621-A0i201605-201910
SHELL,TRIM0#
main73230-28621-C0i201605-201910
BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-52010-A1i201204-201504
SHELL,TRIM0#
sub73233-60020
sub73233-0C010
main73233-52010-B1i200601-200605
DK.GRAY,TRIM1#
sub73233-60020
sub73233-0C010
main73233-52010-C0i200605-201205
BLACK,TRIM1#
sub73233-60020
sub73233-0C010
main73233-52010-C0i201204-201503
BLACK,TRIM2#
sub73233-60020
sub73233-0C010
main73233-52010-E3i200601-201205
GREGE,TRIM4#
sub73233-60020
sub73233-0C010
main73233-60020-A1i201504-201605
BEIJING SPEC,SHELL,TRIM0#
sub73233-60020
sub73233-35010
main73233-60020-A1i201504-201605
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
sub73233-60020
sub73233-35010
main73233-60020-A1i201504-201605
SHELL,TRIM0#
sub73233-60020
sub73233-35010
main73233-60020-A1i201504-201605
CHINA SPEC,SHELL,TRIM0#
sub73233-60020
sub73233-35010
main73233-60020-A1i201504-201605
CHINA SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
sub73233-60020
sub73233-35010
main73233-60020-C0i201503-201610
BLACK,TRIM2#
sub73233-60020
sub73233-35010
main73233-60020-C1i201610-201906
BLACK,TRIM2#
sub73233-60020
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-28430-E0i200601-201204
GREGE,TRIM4#
sub73230-28430
main73230-28440-E0i200601-200812
HONDURAS SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28440
main73230-28440-E0i200601-200812
EL SALVADOR SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28440
main73230-28440-E0i200601-201204
GREGE,TRIM4#
sub73230-28440
main73230-28440-E0i200601-200812
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28440
main73230-28440-E0i200601-200812
PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28440
main73230-28440-E0i200601-200812
PHILIPPINES SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28440
main73230-28440-E0i200601-200812
JORDAN SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28440
main73230-28440-E0i200601-200812
GUATEMALA SPEC&PRE-COLLISION SYSTEM-WITHOUT,GREGE,TRIM4#
sub73230-28440
main73230-28470-E0i200601-200812
GREGE,TRIM4#
main73230-28470-E0i200601-200812
PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT,GREGE,TRIM4#
main73230-28500-B0i200601-201006
DK.GRAY,TRIM1#
sub73230-28500
main73230-28500-C0i201006-201205
BLACK,TRIM1#
sub73230-28500
main73230-28500-E0i200601-201205
GREGE,TRIM4#
sub73230-28500
main73230-28570-A0i201204-201605
SHELL,TRIM0#
main73230-28571-A0i201605-201910
SHELL,TRIM0#
main73230-28580-A0i201204-201605
SHELL,TRIM0#
main73230-28580-A0i201204-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
main73230-28580-C0i201204-201605
BLACK,TRIM2#
main73230-28581-C0i201605-201910
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,BLACK,TRIM2#
main73230-28581-C0i201605-201910
BLACK,TRIM2#
main73230-28590-A0i201204-201605
SHELL,TRIM0#
main73230-28590-C0i201204-201605
BLACK,TRIM2#
main73230-28591-A0i201605-201910
SHELL,TRIM0#
main73230-28591-C0i201605-201910
BLACK,TRIM2#
main73230-28640-A0i201204-201605
SHELL,TRIM0#
main73230-28641-C0i201605-201706
BLACK,TRIM2#
main73230-28642-C0i201706-201910
BLACK,TRIM2#
82667BHOLDER, CONNECTOR
main82666-30830i201706
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
9010911063
main90109-11063
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

18 parts on this diagram · 4 diagrams in section

SEAT BELT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
