EPC Data

LOCK CYLINDER SET

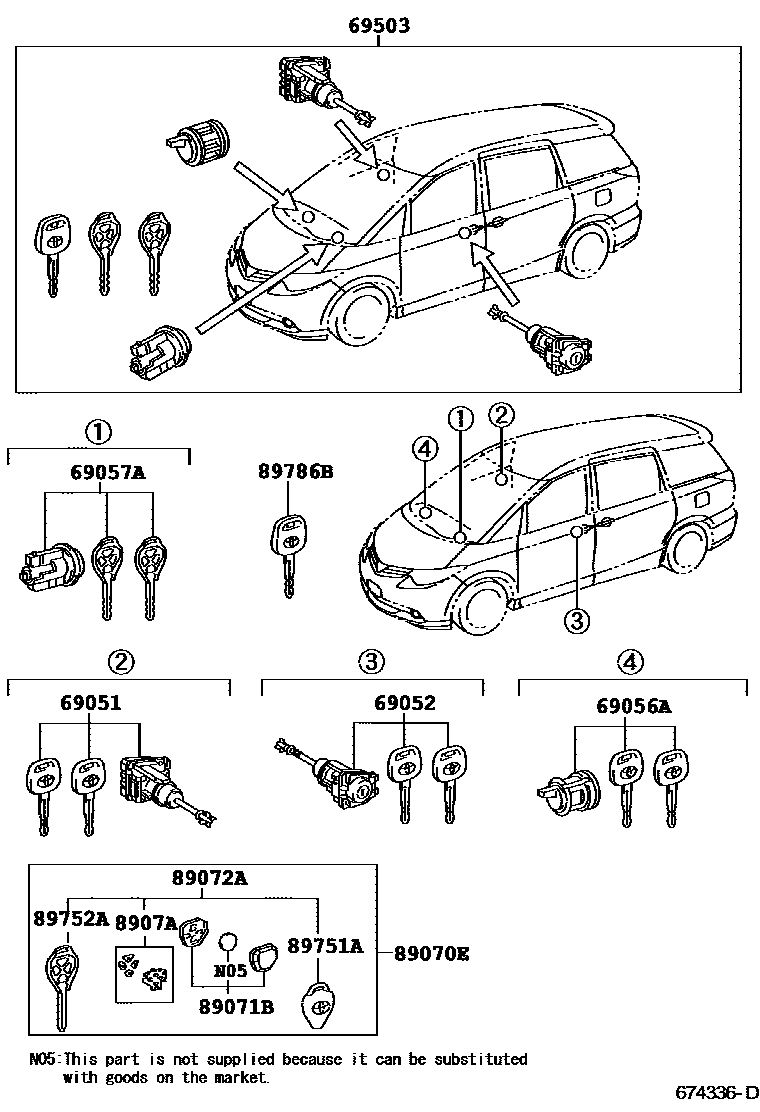

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69005-28B60i201205-201605
main69051-28330i200601-201205
main69051-28330i200812-201204
WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main69051-28330i200812-201204
WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main69051-28370i201205-201906
main69051-28380i201003-201605
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-28310i201204-201605
main69052-28310i200812-201204
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEADLAMP-DISCHARGE & AFS
main69052-28320i200812-201204
WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main69052-28320i200812-201204
WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main69052-28320i200601-201205
main69052-28330i201409-201605
main69052-28330i201605
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
main69052-28350i201205-201605
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-28080i201205-201304
main69056-33190i200812-201204
WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main69056-33190i200601-201205
main69056-33190i200812-201204
WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main69056-33200i201011-201605
main69056-33200i200812-201204
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEADLAMP-DISCHARGE & AFS
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-28370i200812-201205
SLIDE DOOR-*ECS(RH,LH)
main69057-28370i200601-201204
main69057-33341i200812-201205
main69057-33381i200812-201204
main69057-42221i200812-201204
WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
69503CYLINDER SET, LOCK
main69005-28A40i201204-201605
main69005-28A40i200812-201204
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEADLAMP-DISCHARGE & AFS
main69005-28A50i200601-201204
main69005-28A50i200812-201205
SLIDE DOOR-*ECS(RH,LH)
main69005-28B50i200812-201205
main69005-28C20i201605
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
main69005-28C20i201409-201605
main69005-28C40i200812-201204
main69005-28C50i200812-201204
WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main69005-28C60i201304-201906
main69005-28C70i201003-201605
main69005-28C80i201205-201605
main69005-28C90i201205-201304
sub69005-28D00
main69005-28E00i201304-201906
89070ETRANSMITTER ASSY, DOOR CONTROL
main89070-26300i200912-201205
SLIDE DOOR-*ECS(RH,LH)
main89070-26310i200912-201005
sub89072-26080
sub89071-28202
main89070-28810i200601-200605
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28811
main89070-28810i200601-200605
PHILIPPINES SPEC
sub89070-28811
main89070-28810i200601-200605
JORDAN SPEC
sub89070-28811
main89070-28810i200601-200605
GUATEMALA SPEC
sub89070-28811
main89070-28810i200601-200605
HONDURAS SPEC
sub89070-28811
main89070-28810i200601-200605
EL SALVADOR SPEC
sub89070-28811
main89070-28811i200606-200805
EL SALVADOR SPEC
sub89070-28812
main89070-28811i200606-200805
HONDURAS SPEC
sub89070-28812
main89070-28811i200606-200805
GUATEMALA SPEC
sub89070-28812
main89070-28811i200606-200805
JORDAN SPEC
sub89070-28812
main89070-28811i200606-200805
PHILIPPINES SPEC
sub89070-28812
main89070-28811i200606-200805
VENEZUELA SPEC
sub89070-28812
main89070-28811i200606-200805
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28812
main89070-28812i200806-200812
HONDURAS SPEC
sub89070-12D90
main89070-28812i200806-200812
GUATEMALA SPEC
sub89070-12D90
main89070-28812i200806-200812
EL SALVADOR SPEC
sub89070-12D90
main89070-28812i200806-200812
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-12D90
main89070-28812i200806-200812
VENEZUELA SPEC
sub89070-12D90
main89070-28812i200806-200812
PHILIPPINES SPEC
sub89070-12D90
main89070-28812i200806-200812
JORDAN SPEC
sub89070-12D90
main89070-28812i200812-200912
sub89070-12D90
main89070-28830i200601-200811
HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28830i200601-200811
HONG KONG SPEC
sub89070-28831
main89070-28830i200601-200811
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28830i200601-200811
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28830i200601-200811
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS&SEAT COVER MATERIAL-NATURAL LEATHER
sub89070-28831
main89070-28830i200601-200811
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28830i200601-200811
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AF
sub89070-28831
main89070-28830i200601-200811
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28830i200601-200811
JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28830i200601-200811
GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28830i200601-200811
EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28830i200601-200811
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28830i200601-200811
VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89070-28831
main89070-28850i200812-200912
SLIDE DOOR-*ECS(RH,LH)
main89070-28860i200812-200912
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
sub89072-28310
sub89071-28191
main89070-28860i200812-200912
MALAYSIA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
sub89072-28310
sub89071-28191
main89070-28B20i200812-200912
sub89072-58030
sub89071-28230
main89070-28B30i200812-200912
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28460
sub89071-28251
main89070-28B30i200812-200912
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28460
sub89071-28251
main89070-28B30i200812-200912
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28460
sub89071-28251
main89070-28B30i200812-200912
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28460
sub89071-28251
main89070-28B30i200812-200912
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28460
sub89071-28251
main89070-28B30i200812-200912
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28460
sub89071-28251
main89070-28B30i200812-200912
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28460
sub89071-28251
main89070-28C20i200912-201204
sub89072-26090
sub89071-28230
main89070-28C31i200912-201004
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89070-28C32
main89070-28C31i200912-201004
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89070-28C32
main89070-28C31i200912-201004
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89070-28C32
main89070-28C31i200912-201004
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89070-28C32
main89070-28C31i200912-201004
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89070-28C32
main89070-28C31i200912-201004
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89070-28C32
main89070-28C31i200912-201004
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89070-28C32
main89070-28C32i201005-201204
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
sub89071-28251
main89070-28C32i201005-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
sub89071-28251
main89070-28C32i201005-201204
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
sub89071-28251
main89070-28C32i201005-201204
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
sub89071-28251
main89070-28C32i201005-201204
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
sub89071-28251
main89070-28C32i201005-201204
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
sub89071-28251
main89070-28C32i201005-201204
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
sub89071-28251
main89070-28C71i200912-201205
sub89072-52490
sub89071-28191
main89070-28C90i201005-201204
sub89072-28500
sub89071-28202
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-28190i200812-200912
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
sub89071-28191
main89071-28190i200812-200912
MALAYSIA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
sub89071-28191
main89071-28191i200912-201205
main89071-28200i200601-200602
HONDURAS SPEC
sub89071-28201
main89071-28200i200601-200602
EL SALVADOR SPEC
sub89071-28201
main89071-28200i200601-200602
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89071-28201
main89071-28200i200601-200602
PHILIPPINES SPEC
sub89071-28201
main89071-28200i200601-200602
JORDAN SPEC
sub89071-28201
main89071-28200i200601-200602
GUATEMALA SPEC
sub89071-28201
main89071-28201i200603-200806
EL SALVADOR SPEC
sub89071-28202
main89071-28201i200603-200806
PHILIPPINES SPEC
sub89071-28202
main89071-28201i200603-200806
JORDAN SPEC
sub89071-28202
main89071-28201i200603-200806
GUATEMALA SPEC
sub89071-28202
main89071-28201i200603-200806
HONDURAS SPEC
sub89071-28202
main89071-28201i200603-200806
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89071-28202
main89071-28202i200812-201204
main89071-28202i200806-200812
VENEZUELA SPEC
main89071-28202i200806-200812
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89071-28202i200806-200812
EL SALVADOR SPEC
main89071-28202i200806-200812
HONDURAS SPEC
main89071-28202i200806-200812
GUATEMALA SPEC
main89071-28202i200806-200812
JORDAN SPEC
main89071-28202i200806-200812
PHILIPPINES SPEC
main89071-28220i200601-200812
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
main89071-28220i200601-200812
HONG KONG SPEC
main89071-28220i200601-200812
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
main89071-28220i200601-200812
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89071-28220i200601-200812
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS&SEAT COVER MATERIAL-NATURAL LEATHER
main89071-28220i200601-200812
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89071-28220i200601-200812
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AF
main89071-28220i200601-200812
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89071-28220i200601-200812
JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89071-28220i200601-200812
GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89071-28220i200601-200812
HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89071-28220i200601-200812
EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89071-28220i200601-200812
VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89071-28230i200912-201204
sub89071-28231
main89071-28240i200812-201205
SLIDE DOOR-*ECS(RH,LH)
main89071-28250i200812-200912
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89071-28251
main89071-28250i200812-200912
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89071-28251
main89071-28250i200812-200912
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89071-28251
main89071-28250i200812-200912
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89071-28251
main89071-28250i200812-200912
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89071-28251
main89071-28250i200812-200912
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89071-28251
main89071-28250i200812-200912
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89071-28251
main89071-28251i200912-201204
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89071-28251i200912-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89071-28251i200912-201204
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89071-28251i200912-201204
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89071-28251i200912-201204
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89071-28251i200912-201204
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89071-28251i200912-201204
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
main89072-26080i200912-201005
main89072-26080i200912-201205
SLIDE DOOR-*ECS(RH,LH)
main89072-26090i200912-201204
main89072-28300i200601-200812
EL SALVADOR SPEC
main89072-28300i200601-200812
HONDURAS SPEC
main89072-28300i200601-200812
GUATEMALA SPEC
main89072-28300i200601-200812
JORDAN SPEC
main89072-28300i200601-200812
PHILIPPINES SPEC
main89072-28300i200601-200812
TAIWAN SPEC
main89072-28300i200601-200812
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89072-28300i200812-200912
SLIDE DOOR-*ECS(RH,LH)
main89072-28310i200812-200912
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89072-28310i200812-200912
MALAYSIA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89072-28310i200812-200912
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89072-28310i200812-200912
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89072-28310i200812-200912
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89072-28310i200812-200912
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89072-28310i200812-200912
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89072-28310i200812-200912
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89072-28310i200812-200912
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89072-28310i200812-200912
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89072-28320i200601-200811
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28320i200601-200811
VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28320i200601-200811
HONG KONG SPEC
sub89072-28321
main89072-28320i200601-200811
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28320i200601-200811
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS&SEAT COVER MATERIAL-NATURAL LEATHER
sub89072-28321
main89072-28320i200601-200811
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28320i200601-200811
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AF
sub89072-28321
main89072-28320i200601-200811
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28320i200601-200811
JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28320i200601-200811
GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28320i200601-200811
HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28320i200601-200811
EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28320i200601-200811
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
sub89072-28321
main89072-28460i200812-200912
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28460i200812-200912
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28460i200812-200912
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28460i200812-200912
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28460i200812-200912
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28460i200812-200912
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28460i200812-200912
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28460i200812-200912
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28471i200912-201004
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
main89072-28471i200912-201004
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
main89072-28471i200912-201004
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
main89072-28471i200912-201004
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
main89072-28471i200912-201004
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
main89072-28471i200912-201004
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
main89072-28471i200912-201004
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89072-28472
main89072-28472i201005-201204
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28472i201005-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28472i201005-201204
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28472i201005-201204
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28472i201005-201204
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28472i201005-201204
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28472i201005-201204
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89072-28500i201005-201204
main89072-52490i200912-201205
main89072-58030i200812-200912
8907ASWITCH SET, TRANSMITTER
main8907A-28010i200601-200812
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS&SEAT COVER MATERIAL-NATURAL LEATHER
main8907A-28010i200601-200812
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AF
main8907A-28010i200601-200812
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200601-200812
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main8907A-28010i200812-201205
SLIDE DOOR-*ECS(RH,LH)
main8907A-28020i200812-201205
main8907A-28030i200812-201204
main8907A-28050i200812-201204
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main8907A-28050i200812-201204
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main8907A-28050i200812-201204
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main8907A-28050i200812-201204
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main8907A-28050i200812-201204
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main8907A-28050i200812-201204
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main8907A-28050i200812-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main8907A-28050i200812-201204
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
89751ACOVER, TRANSMITTER HOUSING
main89751-12060i201005-201204
main89751-28070i200601-200812
JORDAN SPEC
main89751-28070i200601-200812
TAIWAN SPEC
main89751-28070i200601-200812
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89751-28070i200601-200812
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89751-28070i200601-200812
PHILIPPINES SPEC
main89751-28070i200601-200812
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89751-28070i200601-200812
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89751-28070i200601-200812
GUATEMALA SPEC
main89751-28070i200601-200812
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89751-28070i200601-200812
HONDURAS SPEC
main89751-28070i200601-200812
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89751-28070i200601-200812
EL SALVADOR SPEC
main89751-28070i200601-200812
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89751-28070i200601-200812
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89751-28070i200812-200912
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-28070i200812-200912
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-28080i200601-200811
VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS&SEAT COVER MATERIAL-NATURAL LEATHER
sub89751-28081
main89751-28080i200601-200811
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AF
sub89751-28081
main89751-28080i200601-200811
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
sub89751-28081
main89751-28080i200601-200811
HONG KONG SPEC
sub89751-28081
main89751-52140i200912-201205
main89751-60080i200912-201004
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89751-60081
main89751-60080i200912-201004
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89751-60081
main89751-60080i200912-201004
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89751-60081
main89751-60080i200912-201004
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89751-60081
main89751-60080i200912-201004
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89751-60081
main89751-60080i200912-201004
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89751-60081
main89751-60080i200912-201004
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
sub89751-60081
main89751-60081i201005-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89751-60081i201005-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main89751-60081i201005-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
89752ACASE, TRANSMITTER HOUSING
main89752-28050i200601-200812
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS&SEAT COVER MATERIAL-NATURAL LEATHER
main89752-28050i200601-200812
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AF
main89752-28050i200601-200812
PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200601-200812
VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS
main89752-28050i200812-201205
SLIDE DOOR-*ECS(RH,LH)
main89752-28071i200812-201205
main89752-33151i200812-201204
main89752-71071i200812-201204
PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89752-71071i200812-201204
JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89752-71071i200812-201204
GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89752-71071i200812-201204
HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89752-71071i200812-201204
VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89752-71071i200812-201204
EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89752-71071i200812-201204
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89752-71071i200812-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
89786BTRANSMITTER, TRANSPONDER KEY SUB
main89786-60170i200812-201204
BLANK KEY,HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
main89786-60170i200601-201205
BLANK KEY
main89786-60170i200812-201204
BLANK KEY,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEADLAMP-DISCHARGE & AFS
main89786-60170i200812-201204
BLANK KEY,WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main89786-60170i200812-201204
BLANK KEY,WIRELESS DOOR LOCK-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

12 parts on this diagram · 5 diagrams in section

LOCK CYLINDER SET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
