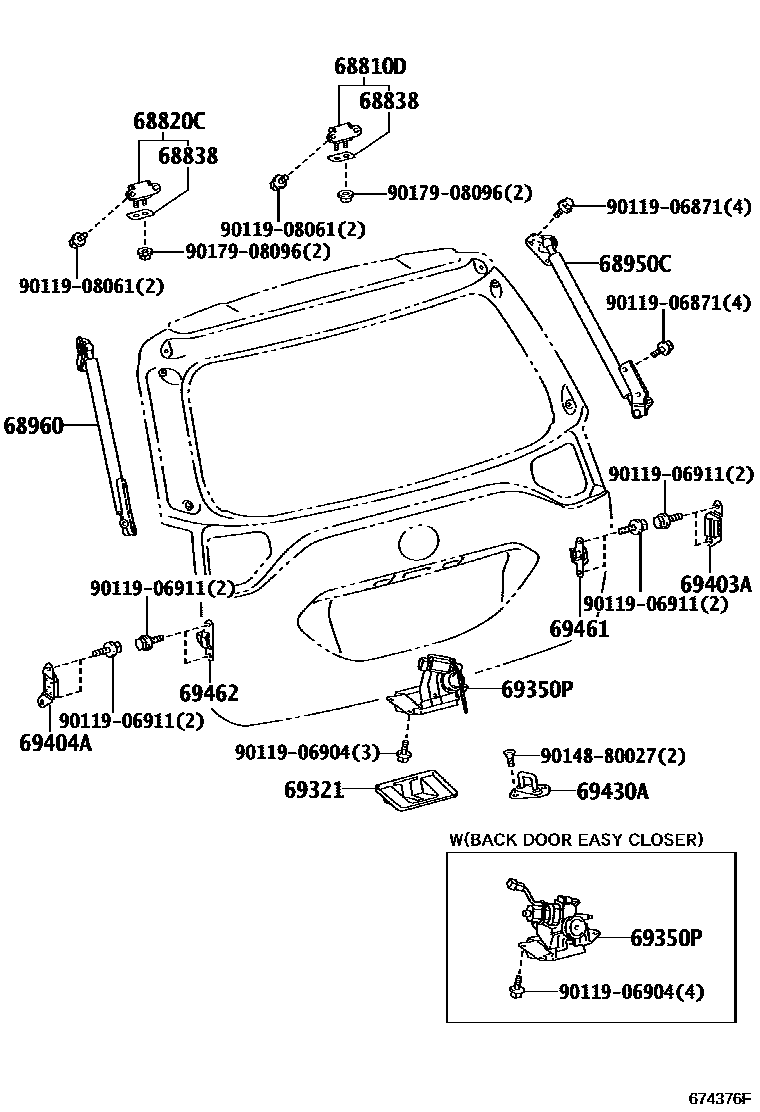

BACK DOOR LOCK & HINGE

0001 1 0002 1POWER BACK DOOR PARTS 0003 1POWER BACK DOOR PARTS

68810DHINGE ASSY, BACK DOOR, RH

main68810-21050iACR50..ARL;GSR50..RHD200601-201512

main68810-21051iACR50,GSR50..DLX,GL201601-201906

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iACR50..ARL;GSR50..RHD200601-201512

main68810-21051iACR50,GSR50201601-201906

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020iACR50,GSR50200601-201605

T=1.0

68950CSTAY ASSY, BACK DOOR, RH

main68950-28300iACR50200601-200610

sub68950-28301

main68950-28301iACR50..LHD..GL..GEN200812-201001

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

sub68950-28302

main68950-28301iACR50,GSR50200611-200812

sub68950-28302

main68950-28301iACR50..GCC;ACR50,GSR50..RHD;ACR50..LHD..DLX..GEN200812-201001

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub68950-28302

main68950-28302iACR50..LHD..GL..GEN201002-201008

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

sub68950-28303

main68950-28302iACR50..LHD..GL..GEN201002-201008

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub68950-28303

main68950-28303iACR50..LHD..GL..GEN201009-201111

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

sub68950-28304

main68950-28303iACR50..GCC;ACR50,GSR50..RHD;ACR50..LHD..DLX..GEN201009-201111

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub68950-28304

main68950-28304iACR50..LHD..GL..GEN201112-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

sub68950-28305

main68950-28304iACR50..LHD..GL..GEN201112-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub68950-28305

main68950-28304iACR50..ARL;GSR50..RHD201112-201208

sub68950-28305

main68950-28305iGSR50..ARL;ACR50..DLX,GL201209-201605

main68950-28320iACR50..LHD..GL200601-200610

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub68950-28321

main68950-28321iACR50..GL..GCC;ACR50,GSR50..RHD..GL..GEN200611-201001

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub68950-28322

main68950-28322iGSR50..LHD;ACR50..LHD..GL..GEN201002-201111

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main68950-28323iACR50..LHD..CVT201204-201208

CHINA SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

sub68950-28324

main68950-28323iACR50..LHD..CVT201204-201208

BEIJING SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

sub68950-28324

main68950-28323iACR50..LHD..CVT201112-201208

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub68950-28324

main68950-28323iACR50..LHD..CVT201204-201208

HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(POWER STOW)

sub68950-28324

main68950-28324iACR50..LHD..CVT201209-201605

HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(POWER STOW)

main68950-28324iGSR50..RHD..GEN201209-201409

main68950-28324iGSR50..LHD;ACR50..AERAS201209-201811

CHINA SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

main68950-28324iGSR50..LHD;ACR50..AERAS201209-201811

BEIJING SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

main68950-28324iGSR50..LHD;ACR50..AERAS201209-201605

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main68950-28440iACR50..AERAS201605-201906

68960STAY ASSY, BACK DOOR, LH

main68960-28300iACR50200601-200610

sub68960-28301

main68960-28301iACR50..LHD..GL..GEN200812-201001

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub68960-28302

main68960-28301iACR50..LHD..GL..GEN200812-201001

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

sub68960-28302

main68960-28301iACR50,GSR50200611-200812

sub68960-28302

main68960-28302iACR50..LHD..GL..GEN201002-201008

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

sub68960-28303

main68960-28302iACR50..LHD..GL..GEN201002-201008

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub68960-28303

main68960-28303iACR50..LHD..GL..GEN201009-201111

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub68960-28304

main68960-28303iACR50..GCC;ACR50,GSR50..RHD;ACR50..LHD..DLX..GEN201009-201111

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

sub68960-28304

main68960-28304iACR50..GCC;ACR50..RHD..GEN;ACR50..LHD..DLX..GEN201112-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

sub68960-28305

main68960-28304iACR50..LHD..GL..GEN201112-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub68960-28305

main68960-28304iACR50..ARL;GSR50..RHD201112-201208

sub68960-28305

main68960-28305iGSR50..ARL;ACR50..DLX,GL201209-201605

main68960-28320iACR50..LHD..GL200601-200610

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub68960-28321

main68960-28321iGSR50..LHD;ACR50..LHD..GL..GEN200611-201001

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub68960-28322

main68960-28322iACR50..RHD..GL201002-201111

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main68960-28323iACR50..LHD..CVT201204-201208

BEIJING SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

sub68960-28324

main68960-28323iACR50..LHD..CVT201112-201208

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub68960-28324

main68960-28323iACR50..LHD..CVT201204-201208

HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(POWER STOW)

sub68960-28324

main68960-28323iACR50..LHD..CVT201204-201208

CHINA SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

sub68960-28324

main68960-28324iACR50..LHD..CVT201209-201811

BEIJING SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

main68960-28324iGSR50..RHD..GEN201209-201409

main68960-28324iGSR50..LHD;ACR50..AERAS201209-201811

CHINA SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

main68960-28324iGSR50..LHD;ACR50..AERAS201209-201605

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main68960-28324iGSR50..LHD;ACR50..AERAS201209-201605

HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(POWER STOW)

main68960-28440iACR50..AERAS201605-201906

69321COVER, BACK DOOR LOCK

main69321-28020iACR50,GSR50200601-201906

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iGSR50..ARL;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)200601-201512

sub69350-28151

main69350-28150iACR50..LHD..GL..GEN200812-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

sub69350-28151

main69350-28150iACR50..GCC;ACR50..RHD..GEN;ACR50..LHD..DLX..GEN200812-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub69350-28151

main69350-28151iGSR50..ARL;ACR50..DLX,GL201601-201605

main69350-28160iACR50..RHD..GL;ACR50..LHD..4FC..GL201204-201512

HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(POWER STOW)

sub69350-28161

main69350-28160iACR50..LHD..CVT201204-201512

CHINA SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

sub69350-28161

main69350-28160iACR50..LHD..CVT201204-201512

BEIJING SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

sub69350-28161

main69350-28160iACR50..LHD..CVT200601-201512

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub69350-28161

main69350-28161iACR50..LHD..CVT201601-201605

HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(POWER STOW)

main69350-28161iGSR50..LHD;ACR50..AERAS201601-201811

CHINA SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

main69350-28161iGSR50..LHD;ACR50..AERAS201601-201811

BEIJING SPEC&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

main69350-28161iGSR50..LHD;ACR50..AERAS201601-201605

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main69350-28161iACR50..AERAS201605-201906

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-28030iACR50,GSR50200601-201906

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-28020iACR50,GSR50200601-201906

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-28050iACR50,GSR50200601-201906

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-28010iACR50,GSR50200601-201906

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-28010iACR50,GSR50200601-201906

9011906871

main90119-06871

9011906904

main90119-06904

9011906911

main90119-06911

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096
