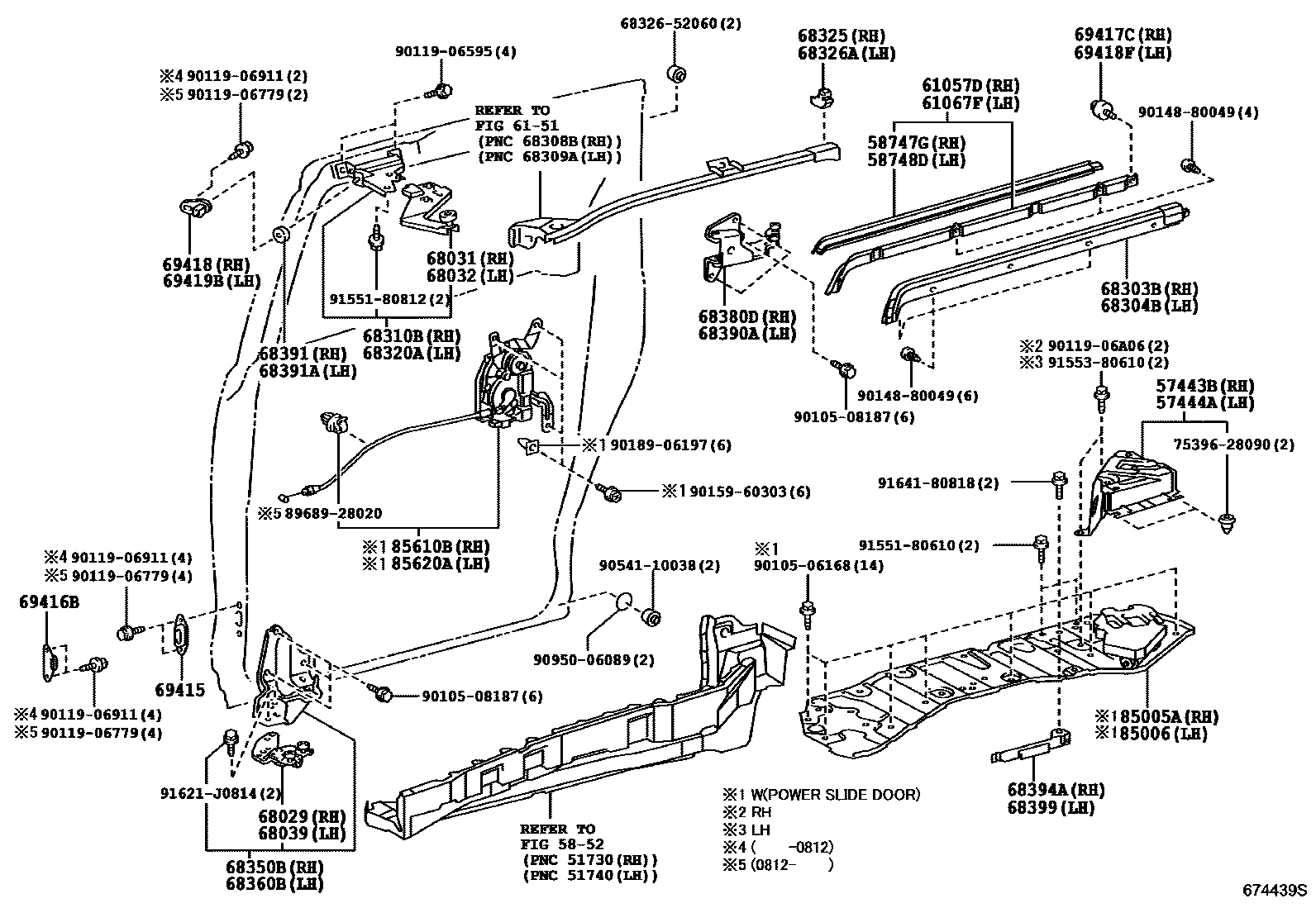

SLIDE ROLLER & RAIL

57443BSUPPORT, SIDE STEP, REAR RH

main51078-28020iACR50,GSR50¥2,650200601-201906

57444ASUPPORT, SIDE STEP, REAR LH

main51079-28040iACR50,GSR50¥2,640200601-201906

5852

58747GPROTECTOR, QUARTER PANEL, REAR RH

main58747-28040iACR50,GSR50¥1,320200601-201906

58748DPROTECTOR, QUARTER PANEL, REAR LH

main58748-28020iACR50,GSR50¥1,320200601-201906

61057DRAIL SUB-ASSY, REAR SIDE, RH

main61057-28030iACR50,GSR50¥3,350200601-201906

61067FRAIL SUB-ASSY, REAR SIDE, LH

main61067-28040iACR50,GSR50¥3,350200601-201906

6151

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-28060iACR50,GSR50¥4,280200601-201906

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68031-28020iACR50,GSR50¥1,540200601-201406

sub68031-28021¥1,280

main68031-28021iACR50,GSR50¥1,280201407-201906

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68032-28020iACR50,GSR50¥1,540200601-201406

sub68032-28021¥1,280

main68032-28021iACR50,GSR50¥1,280201407-201906

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-28070iACR50,GSR50¥4,280200601-201906

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-28080iACR50,GSR50¥9,700200601-201205

main68303-28100iGSR50..RHD..GEN¥9,600201204-201906

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-28110iACR50,GSR50¥9,700200601-201205

main68304-28130iGSR50..RHD..GEN¥9,600201204-201906

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-28060iACR50,GSR50¥7,100200601-201010

sub68310-28101¥6,400

main68310-28100iGSR50..LHD;ACR50..GCC,GEN¥7,700201010-201406

sub68310-28101¥6,400

main68310-28101iGSR50..RHD..GEN¥6,400201407-201906

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-28070iACR50,GSR50¥7,100200601-201010

sub68320-28121¥6,400

main68320-28120iGSR50..LHD;ACR50..GCC,GEN¥7,700201010-201406

sub68320-28121¥6,400

main68320-28121iGSR50..RHD..GEN¥6,400201407-201906

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-28030iACR50,GSR50¥500200601-201906

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-28030iACR50,GSR50¥500200601-201906

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-28060iACR50,GSR50¥9,300200601-201906

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-28080iACR50,GSR50¥9,300200601-201906

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-28050iACR50,GSR50¥6,100200601-201009

sub68380-28051¥6,100

main68380-28051iGSR50..LHD;ACR50..GCC,GEN¥6,100201010-201205

main68380-28110iGSR50..RHD..GEN¥6,000201204-201610

sub68380-28111¥4,980

main68380-28111iACR50,GSR50¥4,980201611-201703

sub68380-28112¥4,980

main68380-28112iACR50..AERAS¥4,980201704-201906

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-28070iACR50,GSR50¥6,100200601-201009

sub68390-28071¥6,100

main68390-28071iGSR50..LHD;ACR50..GCC,GEN¥6,100201010-201205

main68390-28130iGSR50..RHD..GEN¥6,000201204-201610

sub68390-28131¥4,980

main68390-28131iACR50,GSR50¥4,980201611-201703

sub68390-28132¥4,980

main68390-28132iACR50..AERAS¥4,980201704-201906

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iACR50,GSR50¥200200601-201906

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iACR50,GSR50¥200200601-201906

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-28030iACR50,GSR50¥500200601-201906

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-28040iACR50,GSR50¥380200601-201906

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-28021iACR50,GSR50¥1,040200601-201906

sub69415-58020¥780

main69415-58020iACR50,GSR50¥780201907

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-28020iACR50,GSR50..DLX,GL¥270200812-201906

main69046-28080iACR50,GSR50¥380200601-200811

sub69046-58010¥450

main69046-58010iACR50,GSR50¥450200811-200812

sub69046-28020¥270

69417CCUSHION, SLIDE DOOR OPEN STOPPER, RH

main69417-44010iGSR50..LHD;ACR50..GCC,GEN¥850200601-201906

69418STOP, SLIDE DOOR OPEN

main69418-28100iACR50,GSR50¥540200601-201906

69418FCUSHION, SLIDE DOOR OPEN STOPPER, LH

main69417-44010iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)¥850200601-201906

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-28040iACR50,GSR50¥540200601-201906

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-28060iGSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..GEN¥136,000200812-201009

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub85005-28061¥136,000

main85005-28060iGSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..GEN¥136,000200812-201009

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub85005-28061¥136,000

main85005-28061iGSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..GEN¥136,000201010-201011

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub85005-28120¥136,000

main85005-28061iGSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..GEN¥136,000201010-201011

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub85005-28120¥136,000

main85005-28120iGSR50..LHD;ACR50..LHD..GEN¥136,000201012-201205

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

main85005-28120iGSR50..LHD;ACR50..LHD..GEN¥136,000201012-201205

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main85005-28170iACR50..LHD..CVT¥71,800201204-201605

HEADLAMP-DISCHARGE & AFS

main85005-28170iGSR50..RHD..GEN¥71,800201204-201906

main85005-28170iACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN¥71,800201204-201605

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-28080iGSR50..GL;ACR50..RHD..GEN;ACR50..LHD..GL..GEN¥136,000200812-201009

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub85006-28081¥136,000

main85006-28080iGSR50..GL;ACR50..RHD..GEN;ACR50..LHD..GL..GEN¥136,000200812-201009

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub85006-28081¥136,000

main85006-28081iGSR50..GL;ACR50..RHD..GEN;ACR50..LHD..GL..GEN¥136,000201010-201011

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

sub85006-28110¥136,000

main85006-28081iGSR50..GL;ACR50..RHD..GEN;ACR50..LHD..GL..GEN¥136,000201010-201011

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

sub85006-28110¥136,000

main85006-28110iGSR50..LHD;ACR50..RHD..GEN;ACR50..LHD..GL..GEN¥136,000201012-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

main85006-28110iGSR50..LHD;ACR50..RHD..GEN;ACR50..LHD..GL..GEN¥136,000201012-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main85006-28110iGSR50..RHD..GL¥136,000201012-201205

main85006-28150iGSR50..RHD..GEN¥71,800201204-201906

main85006-28150iACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN¥71,800201204-201605

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main85006-28150iACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN¥71,800201204-201605

HEADLAMP-DISCHARGE & AFS

85610BMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH

main85610-28031iGSR50..LHD;ACR50..LHD..GEN¥21,700200812-201205

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

main85610-28031iGSR50..LHD;ACR50..LHD..GEN¥21,700200812-201605

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main85610-28031iGSR50..RHD..GEN¥21,700201204-201906

main85610-28031iACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN¥21,700201204-201605

HEADLAMP-DISCHARGE & AFS

85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH

main85620-28051iGSR50..LHD;ACR50..RHD..GEN;ACR50..LHD..GL..GEN¥21,700200812-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

main85620-28051iGSR50..LHD;ACR50..RHD..GEN;ACR50..LHD..GL..GEN¥21,700200812-201605

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main85620-28051iGSR50..RHD..GL¥21,700200812-201906

main85620-28051iACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN¥21,700201204-201605

HEADLAMP-DISCHARGE & AFS

6832652060CLIP(FOR TAIL GATE REMOTE CONTROL LINK)

main68326-52060¥280

7539628090CLIP, OUTSIDE MOULDING, NO.2

main75396-28090¥90

8968928020CLAMP, WIRELESS DOOR LOCK

main89689-28020¥90

9010506168

main90105-06168¥120

9010508187

main90105-08187¥90

9011906595

main90119-06595¥220

9011906779

main90119-06779¥60

9011906911

main90119-06911¥80

9011906A06

main90119-06A06¥60

9014880049

main90148-80049¥60

9015960303

main90159-60303¥70

9018906197

main90189-06197¥70

9054110038

main90541-10038¥100

9095006089

main90950-06089¥160

9155180610

main91551-80610¥60

9155180812

main91551-80812¥80

9155380610

main91553-80610¥60

91621J0814

main91621-J0814¥60

9164180818

main91641-80818¥80

55 parts on this diagram · 1 diagram in section
