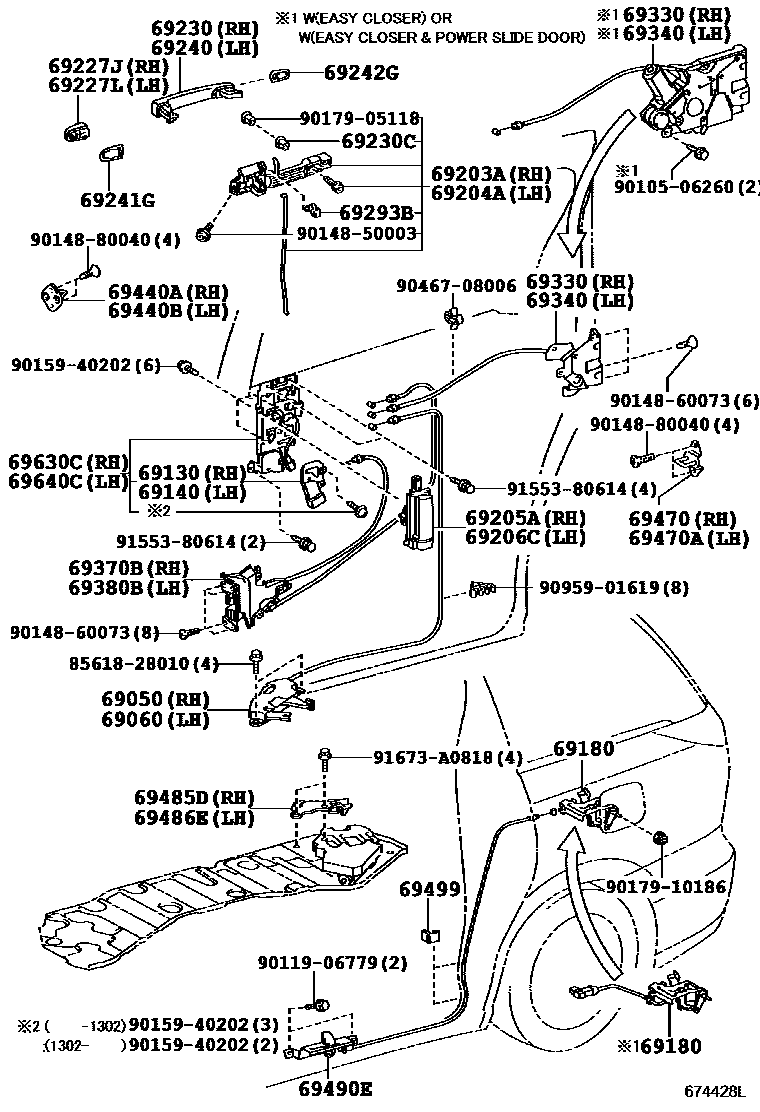

REAR DOOR LOCK & HANDLE

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-28040iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200709

main69050-28041supersedes 69050-28062iACR50,GSR50..GCC;ACR50..RHD..4FC..GEN;ACR50..LHD..DLX..GEN200812-201204

VENEZUELA SPEC

main69050-28061iACR50,GSR50..RHD..GEN200706-200707

COLD SPEC(BATTERY SIZE:80D26L)

main69050-28062supersedes 69050-28041iACR50..CVT;ACR50,GSR50..LHD..GL..GEN200812-201204

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-28070iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200709

main69060-28071supersedes 69060-28102iACR50..LHD..GL..GEN200710-200812

HONDURAS SPEC

main69060-28101iACR50,GSR50..RHD..GEN200706-200707

COLD SPEC(BATTERY SIZE:80D26L)

main69060-28102supersedes 69060-28102iACR50..CVT;ACR50,GSR50..LHD..GL..GEN200812-201204

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-58020iGSR50..LHD;ACR50..GCC,GEN200812-201204

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-58020iGSR50..LHD;ACR50..GCC,GEN200812-201204

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-28080iACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN201204-201605

HEADLAMP-DISCHARGE & AFS

main69180-28090iACR50,GSR50200601-200812

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-28020iACR50,GSR50..DLX,GL201605

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-28020iGSR50..LHD;ACR50..GCC,GEN200812-201204

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-58010-B0iACR50,GSR50..RHD..DLX200601-200812

DK.GRAY,TRIM1#,W(CHILD LOCK LEVER)

sub69281-58010

main69207-58010-C0supersedes 69207-58010-C0iGSR50;ACR50..CVT;ACR50..RHD..4FC201605-201910

BLACK,TRIM2#,W(CHILD LOCK LEVER)

sub69281-58010

main69207-58010-E2iGSR50;ACR50..RHD..GL;ACR50..LHD..4FC200812-201205

ASH BROWN,TRIM4#,W(CHILD LOCK LEVER)

sub69281-58010

main69207-58010-E3iACR50,GSR50..LHD201605-201910

DK. BROWN,TRIM0#,W(CHILD LOCK LEVER)

sub69281-58010

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-58010-B0iACR50,GSR50..RHD..DLX200601-200812

DK.GRAY,TRIM1#,W(CHILD LOCK LEVER)

sub69282-58010

main69208-58010-C0supersedes 69208-58010-C0iACR50..RHD..DLX200812-201205

BLACK,TRIM1#,W(CHILD LOCK LEVER)

sub69282-58010

main69208-58010-E2iGSR50;ACR50..RHD..GL;ACR50..LHD..4FC200812-201205

ASH BROWN,TRIM4#,W(CHILD LOCK LEVER)

sub69282-58010

main69208-58010-E3iACR50,GSR50..LHD201605-201910

DK. BROWN,TRIM0#,W(CHILD LOCK LEVER)

sub69282-58010

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-28050-A0iGSR50..LHD;ACR50..GCC,GEN200812-201204

SUPER WHITE 2,040

main69227-28050-A5iGSR50..RHD..GEN201204-201409

WHITE PEARL CS.,070

main69227-28050-B8iACR50..AERAS201605-201906

SILVER ME.,1F7

main69227-28050-C1iGSR50..LHD;ACR50..GCC,GEN200812-201204

BLACK,202

main69227-28050-C3iACR50..AERAS201605-201906

SPARKLING BLACK PEARL CS.,220

main69227-28050-D7iACR50,GSR50200601-200812

DK. RED M.M.,3Q3

main69227-28050-D8iACR50..AERAS201605-201906

RED M.M.,3R3

main69227-28050-E6iACR50,GSR50..DLX,GL201409-201605

DARK SHERRY M.M.,4W4

main69227-28050-F4iACR50,GSR50200601-200812

SILKY GOLD M.M.,5A4

main69227-28050-J9iGSR50..LHD;ACR50..GCC,GEN200812-201204

DK.BLUE MC.,8S6

main69227-28050-K2iGSR50..LHD;ACR50..GCC,GEN200812-201204

LT.PURPLE M.M.,9AE

main69227-28050-P0iACR50..ARL;GSR50..RHD200812-201205

MEDIUM SILVER ME.,1F8

main69227-28050-P6iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

ICE TITANIUM M.M.,1H4

main69227-28050-R1iACR50,GSR50200601-200812

LT.BLUE M.M.,8S7

main69227-28050-R3iACR50..AERAS201205-201605

GRAYISH BLUE M.M.,8V5

main69227-28050-X0iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

DEEP RED M.M.,3R9

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-28050-A0iGSR50;ACR50..DLX;ACR50..GL..GCC201605

SUPER WHITE 2,040

main69227-28050-A5iACR50,GSR50200601-200812

WHITE PEARL CS.,070

main69227-28050-B8iGSR50..RHD..GEN201204-201409

SILVER ME.,1F7

main69227-28050-C1iGSR50..LHD;ACR50..GCC,GEN200812-201204

BLACK,202

main69227-28050-C3iACR50..AERAS201605-201906

SPARKLING BLACK PEARL CS.,220

main69227-28050-D7iACR50..ARL;GSR50..RHD200812-201205

DK. RED M.M.,3Q3

main69227-28050-D8iACR50,GSR50..DLX,GL201605

RED M.M.,3R3

main69227-28050-E6iACR50,GSR50..DLX,GL201409-201605

DARK SHERRY M.M.,4W4

main69227-28050-F4iACR50,GSR50200601-200812

SILKY GOLD M.M.,5A4

main69227-28050-J9iGSR50..LHD;ACR50..GCC,GEN200812-201204

DK.BLUE MC.,8S6

main69227-28050-K2iACR50..ARL;GSR50..RHD200812-201205

LT.PURPLE M.M.,9AE

main69227-28050-P0iACR50,GSR50200601-200812

MEDIUM SILVER ME.,1F8

main69227-28050-P6iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

ICE TITANIUM M.M.,1H4

main69227-28050-R1iACR50,GSR50200601-200812

LT.BLUE M.M.,8S7

main69227-28050-R3iACR50..AERAS201205-201605

GRAYISH BLUE M.M.,8V5

main69227-28050-X0iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

DEEP RED M.M.,3R9

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69213-28010-A0iACR50..ARL;GSR50..RHD200812-201205

SUPER WHITE 2,040

main69213-28010-A5iACR50..AERAS201605-201906

WHITE PEARL CS.,070

main69213-28010-B8iACR50,GSR50..DLX,GL201605

SILVER ME.,1F7

main69213-28010-C1iACR50..ARL;GSR50..RHD200812-201205

BLACK,202

main69213-28010-C3iACR50..AERAS201605-201906

SPARKLING BLACK PEARL CS.,220

main69213-28010-D7iACR50..ARL;GSR50..RHD200812-201205

DK. RED M.M.,3Q3

main69213-28010-D8iACR50,GSR50..DLX,GL201605

RED M.M.,3R3

main69213-28010-E6iACR50,GSR50..DLX,GL201605

DARK SHERRY M.M.,4W4

main69213-28010-F4iACR50,GSR50200601-200812

SILKY GOLD M.M.,5A4

main69213-28010-J9iACR50..ARL;GSR50..RHD200812-201205

DK.BLUE MC.,8S6

main69213-28010-K2iACR50..ARL;GSR50..RHD200812-201205

LT.PURPLE M.M.,9AE

main69213-28010-P0iACR50,GSR50200601-200812

MEDIUM SILVER ME.,1F8

main69213-28010-P6iGSR50..RHD..GEN201204-201409

ICE TITANIUM M.M.,1H4

main69213-28010-R1iACR50,GSR50200601-200812

LT.BLUE M.M.,8S7

main69213-28010-R3iACR50..AERAS201205-201605

GRAYISH BLUE M.M.,8V5

main69213-28010-X0iGSR50..RHD..GEN201204-201409

DEEP RED M.M.,3R9

69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)

main90386-08066×2iGSR50..RHD..GEN201204-201409

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69213-28010-A0iGSR50;ACR50..DLX;ACR50..GL..GCC201605

SUPER WHITE 2,040

main69213-28010-A5iACR50..AERAS201605-201906

WHITE PEARL CS.,070

main69213-28010-B8iACR50..ARL;GSR50..RHD200812-201205

SILVER ME.,1F7

main69213-28010-C1iACR50..ARL;GSR50..RHD200812-201205

BLACK,202

main69213-28010-C3iACR50..AERAS201605-201906

SPARKLING BLACK PEARL CS.,220

main69213-28010-D7iACR50,GSR50200601-200812

DK. RED M.M.,3Q3

main69213-28010-D8iACR50,GSR50..DLX,GL201605

RED M.M.,3R3

main69213-28010-E6iACR50,GSR50..DLX,GL201409-201605

DARK SHERRY M.M.,4W4

main69213-28010-F4iACR50..ARL;GSR50..RHD200812-201205

SILKY GOLD M.M.,5A4

main69213-28010-J9iGSR50..LHD;ACR50..GCC,GEN200812-201204

DK.BLUE MC.,8S6

main69213-28010-K2iACR50..ARL;GSR50..RHD200812-201205

LT.PURPLE M.M.,9AE

main69213-28010-P0iGSR50..LHD;ACR50..GCC,GEN200812-201204

MEDIUM SILVER ME.,1F8

main69213-28010-P6iACR50,GSR50..DLX,GL201605

ICE TITANIUM M.M.,1H4

main69213-28010-R1iACR50,GSR50200601-200812

LT.BLUE M.M.,8S7

main69213-28010-R3iACR50..AERAS201205-201605

GRAYISH BLUE M.M.,8V5

main69213-28010-X0iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

DEEP RED M.M.,3R9

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69242-60030×2iACR50..AERAS201605-201906

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-28060×2iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iGSR50..RHD..GEN201204-201409

LH

main69293-12040iACR50,GSR50200601-200812

RH

69330LOCK ASSY, REAR DOOR, RH

main69200-28041iACR50,GSR50200812-200911

main69200-28042iGSR50..LHD;ACR50..GCC,GEN200912-201204

main69200-28043iACR50,GSR50..DLX,GL201605

main69330-28090iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200612

main69330-28091iACR50,GSR50200701-200812

main69200-28040supersedes 69330-28090iACR50,GSR50..LHD..GL..GEN200611-200612

VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

69340LOCK ASSY, REAR DOOR, LH

main69300-28081iACR50,GSR50200812-200911

main69300-28082iGSR50..LHD;ACR50..GCC,GEN200912-201204

main69300-28083iGSR50..RHD..GEN201205-201409

main69340-28180supersedes 69340-28180iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200612

main69340-28181iACR50,GSR50200701-200812

main69300-28080supersedes 69340-28180iACR50,GSR50..LHD..GL..GEN200611-200612

VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28100iACR50,GSR50..LHD..GL..GEN200601-200702

main69370-28101iACR50..ARL;GSR50..RHD200812-201205

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28110iACR50..LHD..GL..GEN200601-200611

main69380-28111iACR50,GSR50200702-200812

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-58011iACR50,GSR50200601-200812

69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-58011iACR50,GSR50200601-200812

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28120iACR50,GSR50..DLX,GL201605

69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH

main69470-28120iGSR50..LHD;ACR50..GCC,GEN200812-201204

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-28040iGSR50..LHD;ACR50..GCC,GEN200812-201204

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-28060iGSR50..LHD;ACR50..GCC,GEN200812-201204

69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN

main69490-28040iGSR50..LHD;ACR50..GCC,GEN200812-201204

69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE

main69499-28020×2iACR50,GSR50200601-200812

69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH

main69630-28150supersedes 69630-28160iACR50,GSR50200601-200812

main69630-28160supersedes 69630-28160iACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN201204-201605

HEADLAMP-DISCHARGE & AFS

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28230iACR50,GSR50200601-200812

main69640-28240iGSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN201605

HEADLAMP-DISCHARGE & AFS

main69640-28260iGSR50..DLX;ACR50..GCC;ACR50..LHD..CVT;ACR50..CVT..ARL201204-201605

8561828010SCREW, SLIDE ROOF MOTOR THRUST

main85618-28010

9010506260

main90105-06260

9011906779

main90119-06779

9014850003

main90148-50003

9014860073

main90148-60073

9014880040

main90148-80040

9015940202

main90159-40202

9017905118

main90179-05118

9017910186

main90179-10186

9046708006

main90467-08006

9095901619

main90959-01619

9155380614

main91553-80614

91673A0818

main91673-A0818

44 parts on this diagram · 1 diagram in section
