DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(FOR MANUAL STOW SEAT(DOP)),SHELL,TRIM0#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(MANUAL STOW SEAT(DOP)),DK.GRAY,TRIM2#
WITH(POWER STOW SEAT)&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW)
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(FOR POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),SHELL,TRIM0#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(FOR POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),DK.GRAY,TRIM2#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),GREGE,TRIM4#
58470CHANDLE ASSY, DECK BOARD
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(FOR MANUAL STOW SEAT(DOP)),SHELL,TRIM0#
GRAY,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW)&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
58477CPROTECTOR, DECK BOARD, NO.1
TAIWAN SPEC&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW)&SEAT COVER MATERIAL-NATURAL LEATHER
58492BHOOK, DECK BOARD LOCK
62674BPLATE, QUARTER TRIM SET, NO.1
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),SHELL,TRIM0#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),BLACK,TRIM2#
WITH(POWER STOW SEAT)&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW),GREGE,TRIM4#
62675APLATE, QUARTER TRIM SET, NO.2
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(FOR POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),SHELL,TRIM0#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),BLACK,TRIM2#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),GREGE,TRIM4#
62676PLATE, QUARTER TRIM SET, NO.3
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(FOR POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),SHELL,TRIM0#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(FOR POWER STOW SEAT(DOP)),BLACK,TRIM2#
WITH(POWER STOW SEAT)&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW),GREGE,TRIM4#
62678PLATE, QUARTER TRIM SET, NO.5
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(POWER STOW SEAT(DOP)),SHELL,TRIM0#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),BLACK,TRIM2#
WITH(POWER STOW SEAT)&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW),GREGE,TRIM4#
64420ALID ASSY, LUGGAGE ROOM BOX
SHELL,TRIM0#
GRAY,TRIM1#
MD.GRAY,TRIM1#
DK. GREY,TRIM2#
REAR NO.2 SEAT-WITH(POWER STOW),GREGE,TRIM4#
SHELL,TRIM0#
DK. GREY,TRIM2#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(FOR MANUAL STOW SEAT(DOP)),SHELL,TRIM0#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(MANUAL STOW SEAT(DOP)),GREGE,TRIM4#
TAIWAN SPEC&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW)&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM45
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(POWER STOW SEAT(DOP)),SHELL,TRIM0#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(FOR POWER STOW SEAT(DOP)),DK. GREY,TRIM2#
PACKAGE TRAY TRIM & TONNEAU COVER-WITH(POWER STOW SEAT(DOP))&REAR NO.2 SEAT-WITH(POWER STOW),GREGE,TRIM4#
64429ABOX, LUGGAGE COMPARTMENT TRIM
REAR NO.2 SEAT-WITH(POWER STOW),SHELL,TRIM0#
DK. GREY,TRIM2#
REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)
TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
REAR NO.2 SEAT-WITH(POWER STOW),GREGE,TRIM4#
64771GCOVER, SPARE WHEEL
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
9046709037
main90467-09037
9054103112
main90541-03112
9356054012
main93560-54012
9356056012
main93560-56012
9356855014
main93568-55014

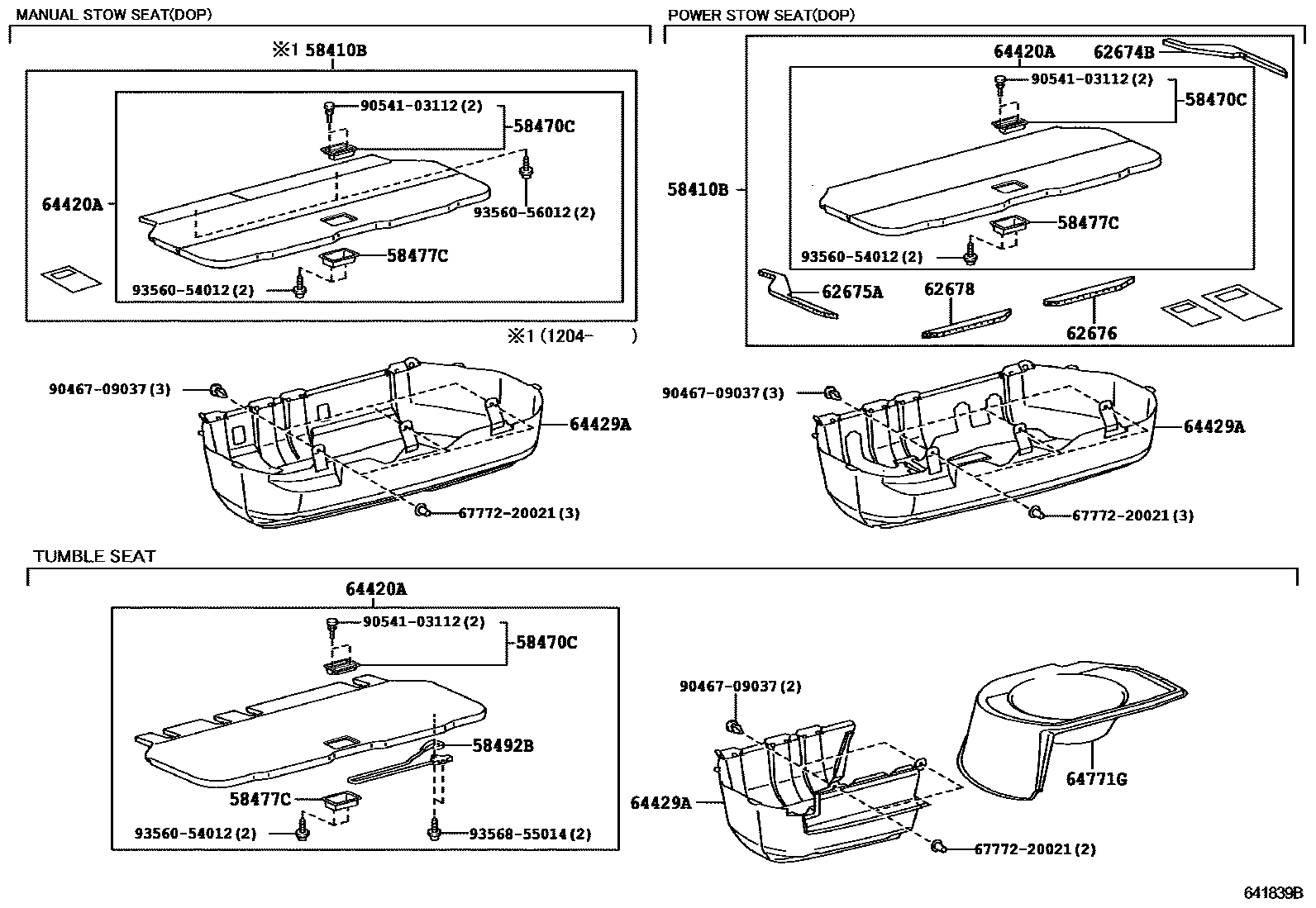

17 parts on this diagram · 1 diagram in section
