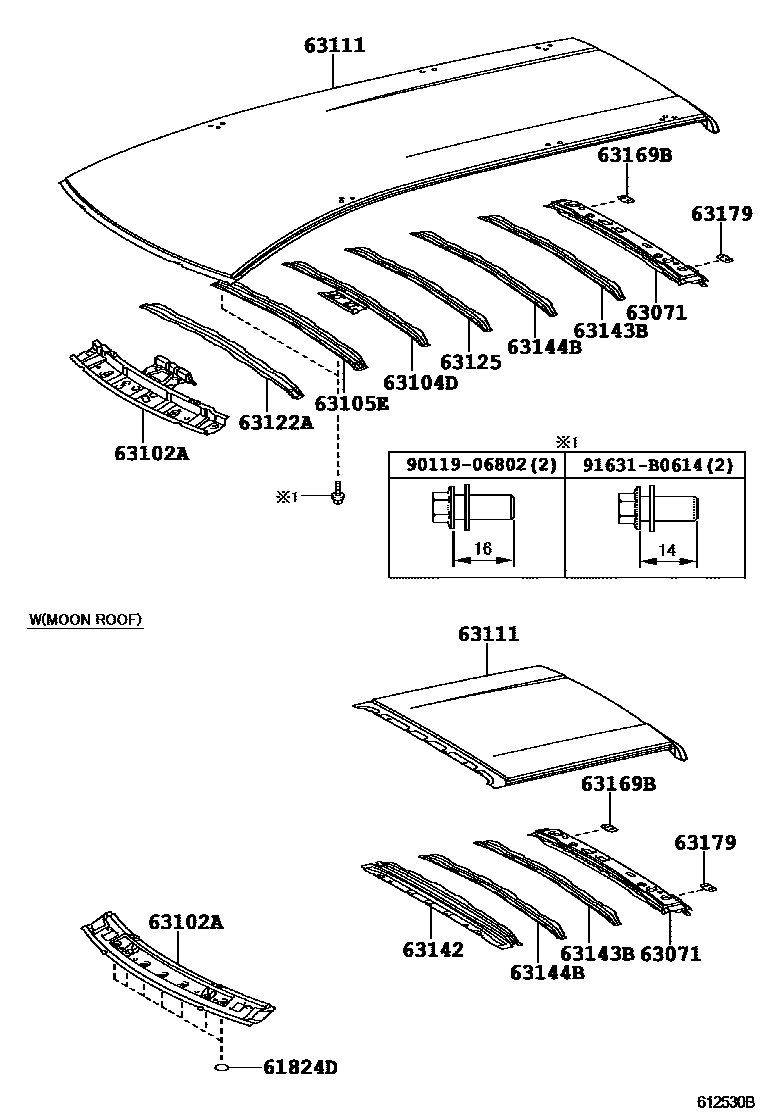

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

61824DPLATE, NOISE CONTROL, NO.1

main61824-12050iACR50,GSR50..RHD..GEN200601-200812

JORDAN SPEC&MOON ROOF-WITH

main61824-12050iACR50,GSR50..RHD..GEN200601-200812

HONDURAS SPEC&MOON ROOF-WITH

main61824-12050iACR50,GSR50..RHD..GEN200601-200812

EL SALVADOR SPEC&MOON ROOF-WITH

main61824-12050iACR50,GSR50..RHD..GEN200601-201011

HONG KONG SPEC&MOON ROOF-WITH

main61824-12050iACR50,GSR50..RHD..GEN200601-201906

MOON ROOF-WITH

main61824-12050iACR50..LHD..GL..GEN200606-200812

VENEZUELA SPEC&MOON ROOF-WITH

main61824-12050iGSR50..GL..ARL200611-200812

COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH

main61824-12050iGSR50..GL..ARL200812-201605

COLD AREA SPEC&MOON ROOF-WITH

main61824-12050iACR50..DLX..GEN201204-201811

CHINA SPEC&MOON ROOF-WITH

main61824-12050iACR50..DLX..GEN201204-201811

BEIJING SPEC&MOON ROOF-WITH

main61824-12050iACR50,GSR50..RHD..GEN200601-200812

TAIWAN SPEC&MOON ROOF-WITH

main61824-12050iACR50,GSR50..RHD..GEN200601-200812

PHILIPPINES SPEC&MOON ROOF-WITH

main61824-12050iACR50,GSR50..RHD..GEN200601-200812

GUATEMALA SPEC&MOON ROOF-WITH

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28040iACR50,GSR50200601-201906

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-28030iACR50,GSR50..LHD..GL..GEN200812-201204

ROOF RAIL-WITH&MOON ROOF-WITHOUT

main63102-28030iACR50,GSR50..LHD..GL..GEN200812-201204

MOON ROOF-WITHOUT

main63102-28030iACR50,GSR50200601-201906

main63102-28040iACR50..07S;ACR50..DLX..GCC;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC)200601-201906

MOON ROOF-WITH

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-28070iACR50,GSR50..LHD..GL..GEN200812-201204

ROOF RAIL-WITH&MOON ROOF-WITHOUT

main63104-28070iACR50,GSR50..LHD..GL..GEN200812-201204

MOON ROOF-WITHOUT

main63104-28070iACR50,GSR50200601-201906

63105EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63105-28080iACR50,GSR50..LHD..GL..GEN200812-201204

MOON ROOF-WITHOUT

main63105-28080iACR50,GSR50..LHD..GL..GEN200812-201204

ROOF RAIL-WITH&MOON ROOF-WITHOUT

main63105-28080iACR50..ARL;GSR50..RHD200601-201906

63111PANEL, ROOF

main63111-28250iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

MOON ROOF-WITHOUT

main63111-28250iGSR50;ACR50..GL;ACR50..DLX..(ARL,GCC)200601-201906

main63111-28260iACR50,GSR50..LHD..GL..GEN200601-201906

ROOF RAIL-WITH

main63111-28260iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

ROOF RAIL-WITH&MOON ROOF-WITHOUT

main63111-28270iACR50..07S;ACR50..DLX..GCC;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC)200601-201906

MOON ROOF-WITH

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-28090iACR50,GSR50200601-201906

main63122-28090iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

ROOF RAIL-WITH&MOON ROOF-WITHOUT

main63122-28090iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

MOON ROOF-WITHOUT

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-28080iACR50,GSR50..LHD..GL..GEN200812-201204

MOON ROOF-WITHOUT

main63125-28080iACR50,GSR50200601-201906

main63125-28080iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

ROOF RAIL-WITH&MOON ROOF-WITHOUT

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28090iGSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC200601-201906

MOON ROOF-WITH

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28080iACR50,GSR50200601-201906

main63143-28080iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

ROOF RAIL-WITH&MOON ROOF-WITHOUT

main63143-28080iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

MOON ROOF-WITHOUT

main63143-28090iGSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC200601-201906

MOON ROOF-WITH

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-28070iACR50,GSR50..LHD..GL..GEN200812-201204

ROOF RAIL-WITH&MOON ROOF-WITHOUT

main63144-28070iACR50,GSR50200601-201906

main63144-28070iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

MOON ROOF-WITHOUT

main63144-28080iACR50..RHD..GEN;ACR50,GSR50..GCC200601-201906

MOON ROOF-WITH

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35020iGSR50..RHD..GEN200601-201906

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35020iGSR50..LHD;ACR50..GCC,GEN200601-201906

9011906802

main90119-06802

91631B0614

main91631-B0614

15 parts on this diagram · 3 diagrams in section
