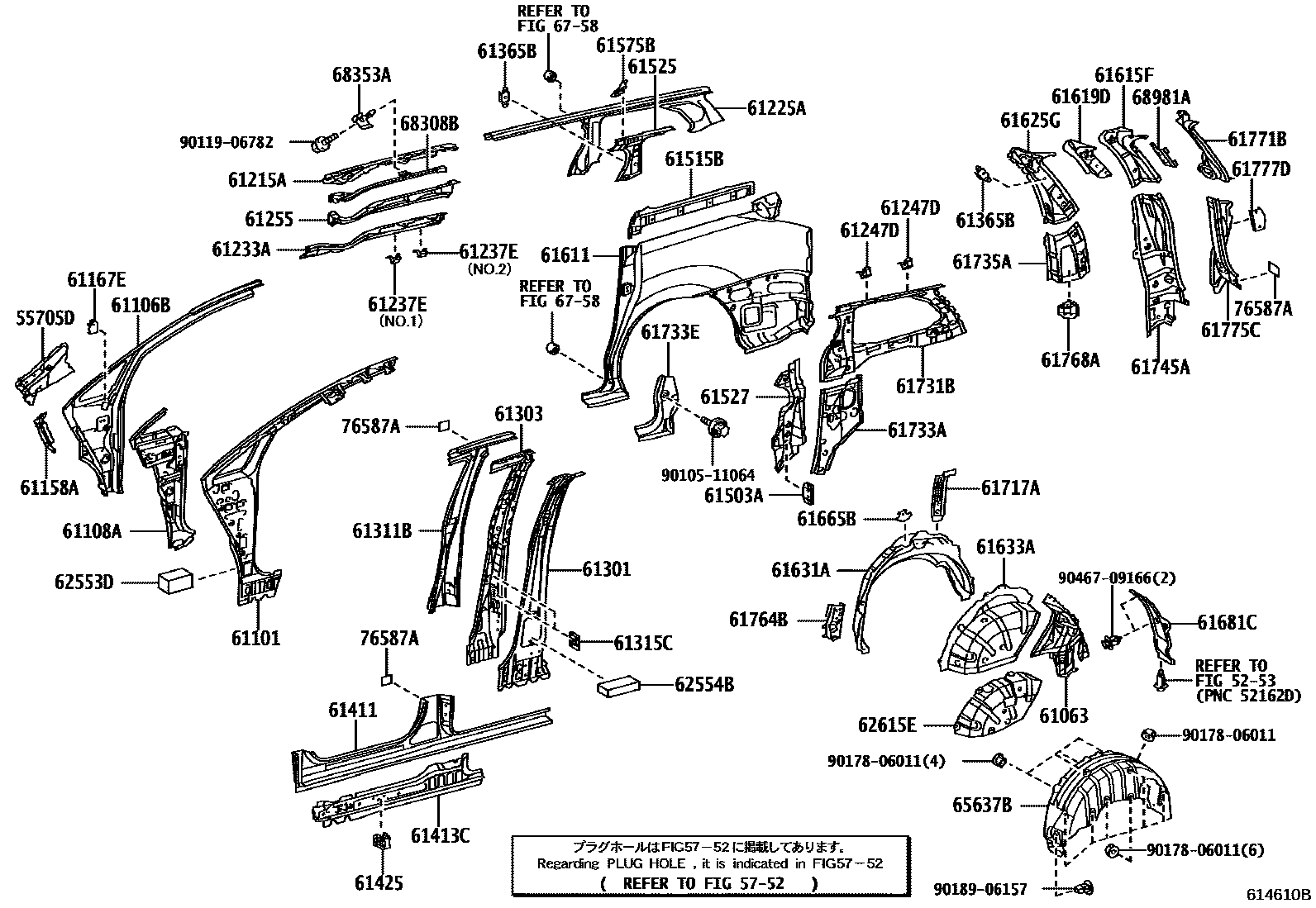

SIDE MEMBER

0001 1RH 0002 1LH

5253

55705DPANEL SUB-ASSY, COWL TOP SIDE, RH,

main55705-28030iACR50..AERAS¥3,270200601-201906

5752

61063BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH

main61063-28060iACR50,GSR50..DLX,GL¥12,400200601-201906

61101PANEL SUB-ASSY, COWL SIDE, RH

main61013-28050iACR50,GSR50¥28,200200601-200801

sub61013-28051¥23,500

main61013-28051iGSR50..LHD;ACR50..GCC,GEN¥23,500200802-201605

sub61013-28110¥23,500

main61013-28110iACR50,GSR50..DLX,GL¥23,500201605-201906

61106BPILLAR SUB-ASSY, FRONT, RH

main61106-28040iGSR50..LHD;ACR50..GCC,GEN¥9,700200601-201906

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-28030iACR50,GSR50¥14,000200601-201906

61158AEXTENSION, FRONT PILLER, LOWER RH

main61158-28010iACR50,GSR50¥1,650200601-201906

61167EBRACKET, NO.6 PILLAR OUTER

main61168-44010iACR50,GSR50¥230200601-201906

61215ARAIL, ROOF SIDE, OUTER NO.3 RH

main61215-28040iACR50,GSR50¥5,600200601-201906

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-28010iGSR50..RHD..GEN¥23,600200601-201906

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-28100iACR50,GSR50¥8,300200601-201906

61237EBRACKET, ASSIST GRIP, NO.1

main61237-28010iACR50,GSR50¥1,520200601-201906

NO.1

main61237-28020iGSR50..RHD..GEN¥1,520200601-201906

NO.2

61247DBRACKET, ASSIST GRIP, RH

main61247-28010iACR50..AERAS¥580200601-201906

FRONT

main61247-28020iGSR50..RHD..GEN¥580200601-201906

REAR

61255PLATE, ROOF SIDE RAIL, OUTER RH

main61255-28030iACR50,GSR50¥6,000200601-201906

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-28210iACR50,GSR50¥17,800200601-201906

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-28020iACR50,GSR50¥34,100200601-201906

61311BPILLAR, CENTER BODY, OUTER RH

main61311-28130iGSR50..LHD;ACR50..GCC,GEN¥16,600200601-201906

61315CRETAINER, DOOR LOCK STRIKER, RH

main61315-48010iACR50,GSR50¥410200601-201906

61365BREINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH

main61365-60040iACR50,GSR50¥450200601-201906

61411PANEL, ROCKER, OUTER RH

main61411-28070iACR50,GSR50¥19,700200601-201906

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-28040iACR50,GSR50¥10,700200601-201906

61425REINFORCEMENT, ROCKER PANEL, NO.4 RH

main61425-28010iACR50,GSR50¥1,430200601-200801

sub61425-28011¥1,190

main61425-28011iACR50,GSR50¥1,190200802-201906

61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH

main61503-28100iACR50,GSR50¥1,220200601-201906

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-28060iACR50,GSR50¥4,500200601-201906

61525REINFORCEMENT, QUARTER LOCK PILLER, UPPER RH

main61525-28040iGSR50..LHD;ACR50..GCC,GEN¥5,900200601-201906

61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH

main61527-28030iACR50,GSR50¥6,000200601-201906

61575BPLATE, CAB REAR PILLAR, UPPER RH

main61575-28010iACR50,GSR50¥720200601-201906

61611PANEL, QUARTER, RH

main61601-28A60iACR50,GSR50¥52,700200601-200903

sub61601-28A61¥43,900

main61601-28A61iACR50..ARL;GSR50..RHD¥43,900200904-201605

main61601-28A71iACR50..AERAS¥43,900201205-201906

61615FREINFORCEMENT, QUARTER PANEL, OUTER RH

main61615-28050iACR50,GSR50¥5,200200601-201906

61619DREINFORCEMENT, QUARTER PANEL, RH

main61619-28060iACR50,GSR50¥3,570200601-201906

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-28100iACR50,GSR50¥7,100200601-201906

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-28070iACR50,GSR50¥9,600200601-201906

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-28090iACR50,GSR50¥9,600200601-201906

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-28040iACR50,GSR50¥670200601-201906

61681CEXTENSION, REAR WHEEL OPENING, RH

main61681-28070iGSR50..RHD..GEN¥3,910200601-201605

main61681-28080iACR50..AERAS¥3,430201205-201906

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61717-28030iACR50..ARL;GSR50..RHD¥1,710200601-201906

61731BPANEL, ROOF SIDE, INNER RH

main61731-28050iACR50,GSR50¥10,100200601-201906

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-28030iACR50,GSR50¥4,570200601-201906

61733EPANEL, ROOF SIDE, INNER FRONT RH, NO.2

main61733-28040iACR50,GSR50¥4,570200601-201906

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-28030iACR50,GSR50¥1,930200601-201906

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-28060iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)¥7,200200601-201906

61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61764-28070iACR50,GSR50¥2,340200601-201906

61768AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61768-28060iACR50,GSR50¥1,280200601-201906

61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH

main61771-28070iACR50,GSR50¥4,220200601-201906

61775CFRAME, BACK DOOR OPENING SIDE, RH

main61775-28040iACR50,GSR50¥3,650200601-201906

61777DRETAINER, BACK DOOR SIDE STOPPER, RH

main61777-28030iACR50,GSR50¥410200601-201906

62553DPAD, PILLAR, NO.3

main62939-28020iGSR50..RHD..GEN¥240201312-201906

main62939-32020iGSR50..LHD;ACR50..GCC,GEN¥500200601-201312

62554BPAD, PILLAR, NO.4

main62554-52010iGSR50..RHD..GEN¥520200601-201906

62615ECOVER, QUARTER WHEEL HOUSE, INNER RH

main62603-28390iACR50..AERAS¥4,850200601-201906

65637BLINER, REAR WHEEL HOUSE, RH

main65637-28010iACR50¥6,100200601-200608

sub65637-28011¥5,100

main65637-28011iACR50,GSR50..DLX,GL¥5,100200609-201906

6758

68308BRAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-28050iGSR50..LHD;ACR50..GCC,GEN¥2,470200601-201906

68353APLATE, SLIDE DOOR RAIL PROTECTOR

main68353-28020iGSR50..RHD..GEN¥250200601-201906

68981ARETAINER, BACK DOOR STAY, RH

main68981-28030iACR50..ARL;GSR50..RHD¥1,190200601-201906

76587APROTECTOR, CENTER PILLAR OUTER

main76587-28030iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)¥430200601-201605

9010511064

main90105-11064¥110

9011906782

main90119-06782¥60

9017806011

main90178-06011¥70

9018906157

main90189-06157¥80

9046709166

main90467-09166¥130

61 parts on this diagram · 2 diagrams in section
