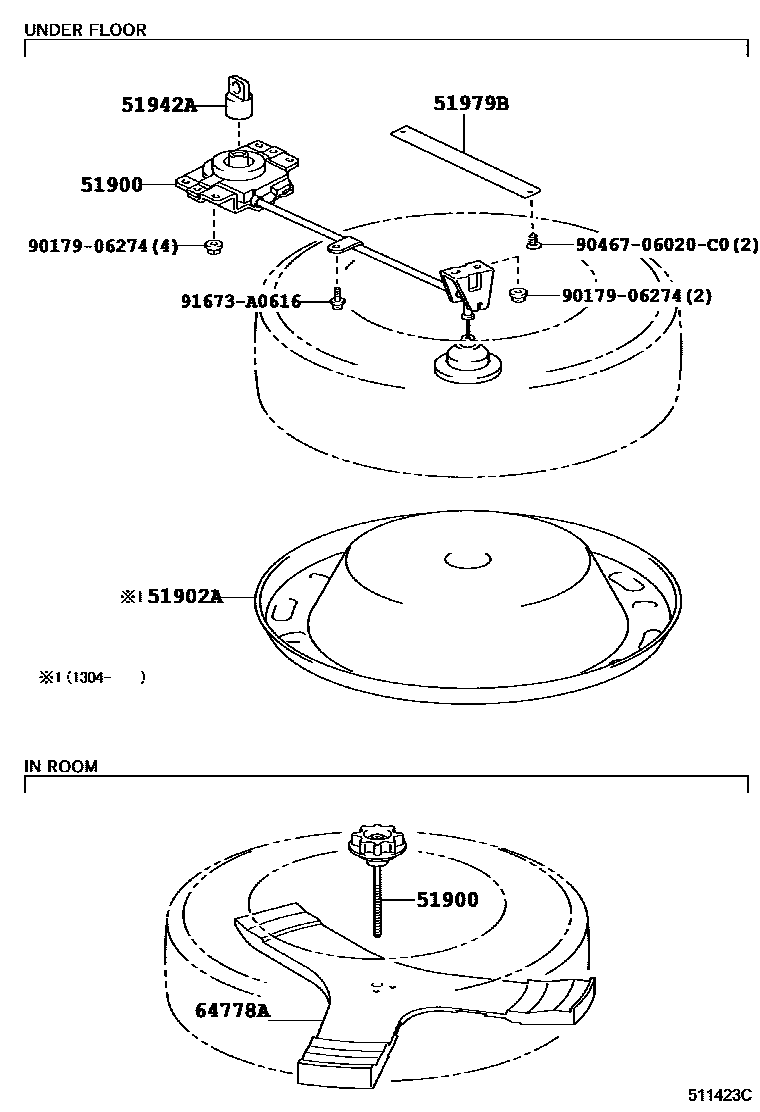

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28280iGSR50..GL..ARL201003-201102

sub51900-28281

main51900-28281iGSR50..RHD..GEN201103-201205

SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(POWER STOW)

sub51900-28350

main51900-28281iACR50..AERAS;GSR50..ARL,GEN;ACR50..LHD..CVT201204-201304

sub51900-28350

main51900-28281iACR50..CVT..GL201103-201204

TAIWAN SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(STOW)

sub51900-28350

main51900-28281iACR50..CVT..GL201103-201204

TAIWAN SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(POWER STOW)

sub51900-28350

main51900-28281iGSR50..GL..ARL201103-201205

SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(STOW)

sub51900-28350

main51900-28290iGSR50..GCC;ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL)201204-201605

BEIJING SPEC&SPARE TIRE-GROUND TIRE

main51900-28290iGSR50..GL..ARL200601-201205

main51900-28290iGSR50..GCC;ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL)201204-201605

CHINA SPEC&SPARE TIRE-GROUND TIRE

main51900-28330iACR50..AERAS201304-201906

51902ACOVER SUB-ASSY, SPARE WHEEL

main51902-28070iGSR50..RHD..GEN201304-201906

51942AHANDLE, SPARE WHEEL CARRIER BOLT

main51942-28010iACR50..CVT..GL201003-201906

51979BCUSHION, SPARE WHEEL CARRIER PROTECTOR

main51979-28030iGSR50..RHD..GEN201003-201906

64778APROTECTOR, SPARE WHEEL

main64778-28020iACR50,GSR50200601-201205

main64778-28020iGSR50..GCC;ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL)201204-201605

CHINA SPEC&SPARE TIRE-GROUND TIRE

main64778-28020iGSR50..GCC;ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL)201204-201605

BEIJING SPEC&SPARE TIRE-GROUND TIRE

9017906274

main90179-06274

9046706020C0

main90467-06020C0

91673A0616

main91673-A0616

8 parts on this diagram · 1 diagram in section
