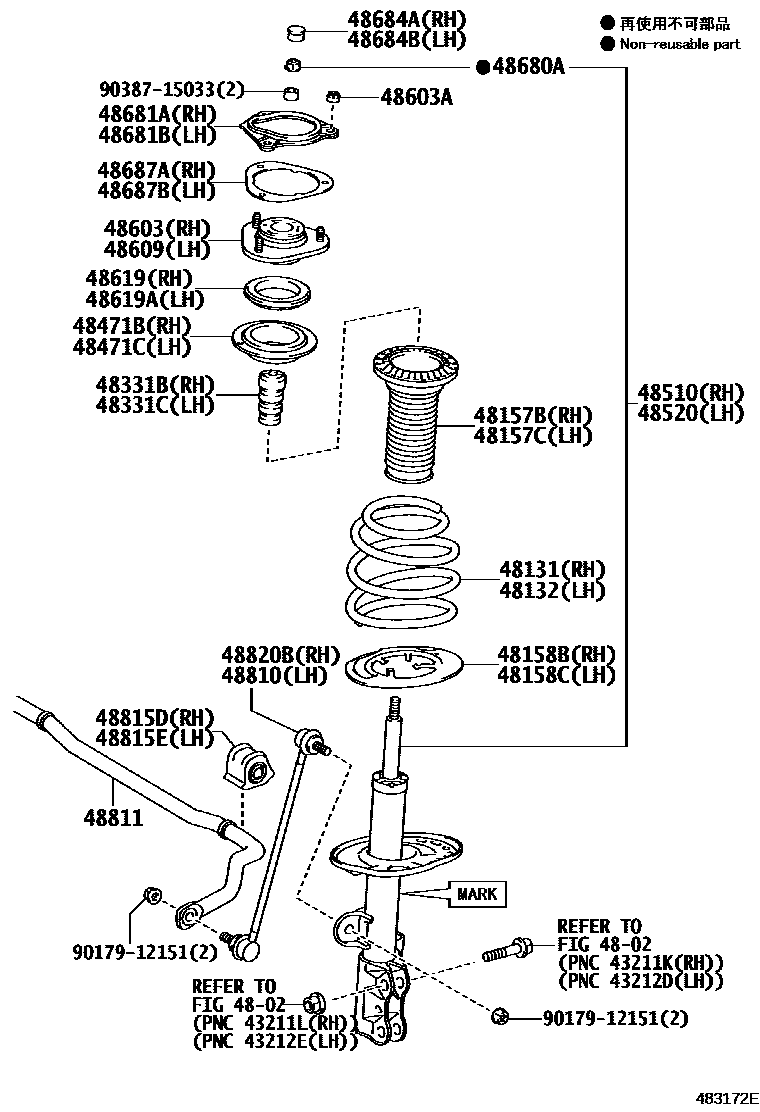

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-28A80iACR50200601-200812

sub48131-28B80

main48131-28A90iGSR50200611-200812

sub48131-28C00

main48131-28B80iACR50..AERAS200812-201906

main48131-28C00iGSR50..ARL,GCC;GSR50..LHD..GEN200812-201605

48132SPRING, FRONT COIL, LH

main48131-28A80iACR50200601-200812

sub48131-28B80

main48131-28A90iGSR50200611-200812

sub48131-28C00

main48131-28B80iACR50..DLX,GL200812-201906

main48131-28C00iGSR50..LHD200812-201605

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-42020iGSR50..LHD;ACR50..GCC,GEN200601-201507

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-42020iACR50,GSR50200601-201507

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-42010iACR50,GSR50200601-201506

main48158-58010iACR50,GSR50201507-201906

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-42010iACR50,GSR50200601-201506

main48158-58010iACR50,GSR50201507-201906

48331BBUMPER, FRONT SPRING, RH

main48331-28050iACR50,GSR50200601-201805

main48331-28060iACR50..AERAS201205-201806

main48331-28100iACR50..AERAS201806-201906

48331CBUMPER, FRONT SPRING, LH

main48331-28050iGSR50..LHD;ACR50..GCC,GEN200601-201805

main48331-28060iACR50..AERAS201205-201806

main48331-28100iACR50,GSR50..DLX,GL201806-201906

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-42010iGSR50..RHD..GEN200601-201507

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-42010iACR50,GSR50200601-201507

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80318iACR50200601-200608

MARK 48510-28270

sub48510-80356

main48510-80356iACR50200608-200812

MARK 48510-28360

main48510-80357iGSR50200611-200812

MARK 48510-28370

sub48510-80416

main48510-80473iACR50..GCC,GEN200812-201405

MARK 48510-28380

sub48510-80751

main48510-80474iGSR50..LHD200812-201409

MARK 48510-28390

sub48510-80416

main48510-80699iACR50201409-201507

MARK 48510-28520

sub48510-80416

main48510-80700iGSR50201409-201508

MARK 48510-28530

sub48510-80416

main48510-80751iACR50201405-201409

MARK 48510-28381

sub48510-80416

main48510-80810iACR50..DLX,GL201507-201906

MARK 48510-28521

main48510-80811iGSR50201508-201605

MARK 48510-28531

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80096iACR50200601-200608

MARK 48520-28270

sub48520-80125

main48520-80125iACR50200608-200812

MARK 48520-28360

main48520-80126iGSR50200611-200812

MARK 48520-28370

sub48520-59505

main48520-80213iACR50..GCC,GEN200812-201405

MARK 48520-48380

sub48520-80429

main48520-80214iGSR50..LHD200812-201409

MARK 48520-48390

sub48520-59505

main48520-80393iACR50201409-201507

MARK 48520-28520

sub48520-59505

main48520-80394iGSR50201409-201508

MARK 48520-28530

sub48520-59505

main48520-80429iACR50201405-201409

MARK 48520-28381

sub48520-59505

main48520-80486iACR50..DLX,GL201507-201906

MARK 48520-28521

main48520-80487iGSR50201508-201605

MARK 48520-28531

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-28040iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)200601-201906

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10011iACR50,GSR50200601-201906

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-28040iGSR50..LHD;ACR50..GCC,GEN200601-201906

48619BEARING, STRUT MOUNTING, RH

main48619-28010iACR50,GSR50200601-201906

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iACR50,GSR50200601-201906

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005iACR50,GSR50200601-201906

48681AGASKET, FRONT SUSPENSION SUPPORT, RH

main48681-28020iACR50,GSR50200601-201906

48681BGASKET, FRONT SUSPENSION SUPPORT, LH

main48681-28020iACR50,GSR50200601-201906

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42010iACR50,GSR50200601-201906

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42010iACR50,GSR50200601-201906

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)200601-201906

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010iACR50,GSR50200601-201906

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iACR50,GSR50..DLX,GL200601-201906

48811BAR, STABILIZER, FRONT

main48811-28230iACR50..ARL200601-201906

main48811-28240iGSR50200611-201605

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-28190iACR50..AERAS200601-201906

main48815-28210iGSR50..RHD..GEN200611-201605

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-28180iACR50200601-201906

main48815-28200iGSR50..RHD..GEN200611-201605

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iACR50,GSR50200601-201906

9017912151

main90179-12151

9038715033

main90387-15033

32 parts on this diagram · 2 diagrams in section
