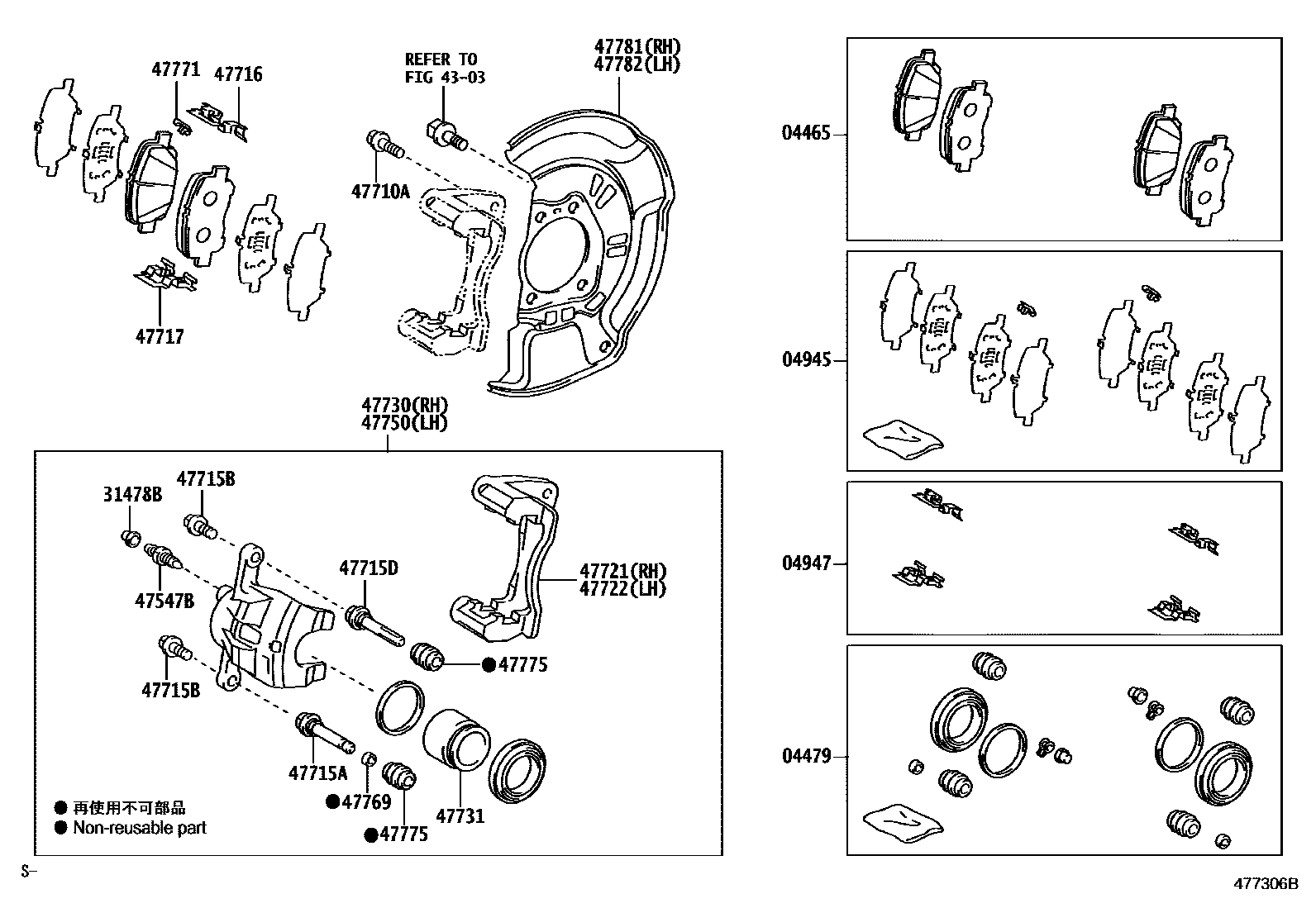

FRONT DISC BRAKE CALIPER & DUST COVER

0001 11 PISTON TYPE CALIPER 0002 12 PISTON TYPE CALIPER

04465PAD KIT, DISC BRAKE, FRONT

main04465-28520iGSR50..RHD..GEN200601-201906

MARK ADVICS PV565H

main04465-48150iGSR50..GEN201605-201811

MARK ADVICS PV565H,CHINA SPEC

main04465-48150iGSR50..GEN201605-201811

MARK ADVICS PV565H,BEIJING SPEC

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-28050iGSR50..RHD..GEN200601-201906

main04478-48150iGSR50..GEN201605-201811

BEIJING SPEC

main04478-48150iGSR50..GEN201605-201811

CHINA SPEC

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-28200iACR50,GSR50200601-201906

main04945-48150iGSR50..GEN201605-201811

CHINA SPEC

main04945-48150iGSR50..GEN201605-201811

BEIJING SPEC

04947FITTING KIT, DISC BRAKE, FRONT

main04947-28070iGSR50..LHD;ACR50..GCC,GEN200601-201906

main04947-48080iGSR50..GEN201605-201811

CHINA SPEC

main04947-48080iGSR50..GEN201605-201811

BEIJING SPEC

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iACR50..AERAS200601-201906

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iACR50..LHD..CVT201605-201811

BEIJING SPEC

main47547-12130iACR50..LHD..CVT201605-201811

CHINA SPEC

main47547-20010iACR50,GSR50..DLX,GL200601-201906

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iGSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN)200601-201906

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48050iACR50..ARL;GSR50..RHD200601-201906

main47714-48150iGSR50..GEN201605-201811

CHINA SPEC

main47714-48150iACR50..LHD..CVT201605-201811

BEIJING SPEC

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90015-AA602iACR50..LHD..CVT201605-201811

CHINA SPEC

main90015-AA602iGSR50..GEN201605-201811

BEIJING SPEC

main90105-08346iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)200601-201906

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48050iGSR50..LHD;ACR50..GCC,GEN200601-201906

main47715-48150iGSR50..GEN201605-201811

BEIJING SPEC

main47715-48150iGSR50..GEN201605-201811

CHINA SPEC

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28570iACR50,GSR50200601-201906

main47716-48150iGSR50..GEN201605-201811

CHINA SPEC

main47716-48150iGSR50..GEN201605-201811

BEIJING SPEC

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-28570iACR50,GSR50200601-201906

main47717-48150iGSR50..GEN201605-201811

CHINA SPEC

main47717-48150iGSR50..GEN201605-201811

BEIJING SPEC

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-28570iACR50,GSR50200601-201906

main47721-48150iACR50..LHD..CVT201605-201811

CHINA SPEC

main47721-48150iGSR50..GEN201605-201811

BEIJING SPEC

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-28570iACR50,GSR50200601-201906

main47722-48140iACR50..LHD..CVT201605-201811

BEIJING SPEC

main47722-48140iGSR50..GEN201605-201811

CHINA SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28570iGSR50..LHD;ACR50..GCC,GEN200601-201906

main47730-48150iGSR50..GEN201605-201811

CHINA SPEC

main47730-48150iGSR50..GEN201605-201811

BEIJING SPEC

47731PISTON, FRONT DISC BRAKE

main47731-48030iGSR50..RHD..GEN200601-201906

main47731-48150iGSR50..GEN201605-201811

BEIJING SPEC

main47731-48150iGSR50..GEN201605-201811

CHINA SPEC

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28570iACR50,GSR50200601-201906

main47750-48110iACR50..LHD..CVT201605-201811

BEIJING SPEC

main47750-48110iGSR50..GEN201605-201811

CHINA SPEC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28570iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)200601-201906

main47769-48150iGSR50..GEN201605-201811

CHINA SPEC

main47769-48150iGSR50..GEN201605-201811

BEIJING SPEC

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48010iGSR50..RHD..GEN200601-201906

main47771-48150iGSR50..GEN201605-201811

BEIJING SPEC

main47771-48150iGSR50..GEN201605-201811

CHINA SPEC

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28570iACR50,GSR50200601-201906

main47775-48150iGSR50..GEN201605-201811

BEIJING SPEC

main47775-48150iGSR50..GEN201605-201811

CHINA SPEC

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28210iACR50,GSR50200601-201906

main47781-42050iGSR50..GEN201605-201811

CHINA SPEC

main47781-42050iGSR50..GEN201605-201811

BEIJING SPEC

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28210iACR50,GSR50200601-201906

main47782-42050iGSR50..GEN201605-201811

CHINA SPEC

main47782-42050iGSR50..GEN201605-201811

BEIJING SPEC

23 parts on this diagram · 2 diagrams in section
