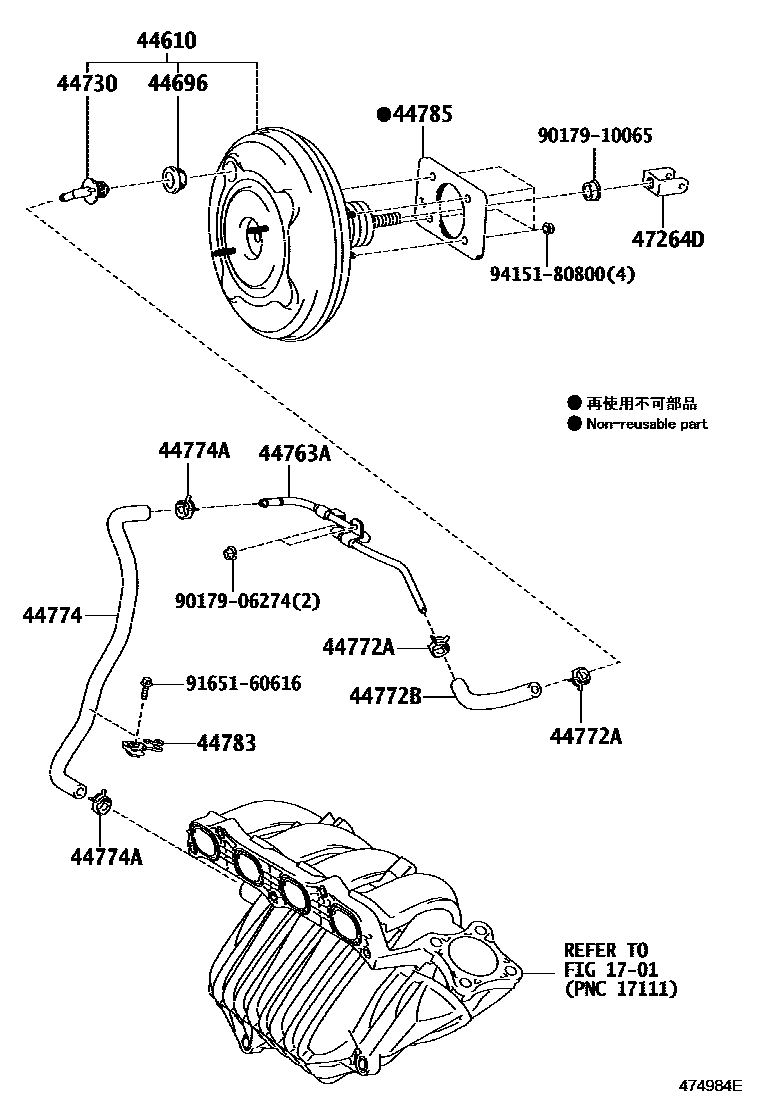

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701

44610BOOSTER ASSY, BRAKE

main44610-28A30iGSR50..RHD200812-201409

VSC-WITH

main44610-28A40iACR50..RHD..GL201204-201304

main44610-28A41iACR50..RHD..4FC201304-201605

main44610-28A60iGSR50..LHD;ACR50..LHD..GL..GEN200812-201409

VSC-WITH

main44610-28A70iACR50..LHD..4FC201204-201605

main44610-28B80iGSR50..ARL;ACR50..RHD..CVT201409-201906

main44610-28B90iGSR50..LHD;ACR50..LHD..CVT201409-201605

main44610-28C00iACR50..LHD..CVT201605-201811

BEIJING SPEC

44696GROMMET, CHECK VALVE

main90480-24015iGSR50..RHD..GEN200601-201906

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iACR50,GSR50..LHD200601-201605

main44730-28030iACR50..AERAS200601-201906

44763ATUBE, HOSE TO HOSE, NO.1

main44763-28120iGSR50..RHD200611-201605

main44763-28130iACR50,GSR50..LHD200601-201605

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iGSR50;ACR50..LHD201212-201605

main96133-41500iGSR50..RHD200601-201211

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-28190iGSR50..RHD200611-201605

main44772-28200iACR50,GSR50..LHD200601-201605

44774HOSE, UNION TO CONNECTOR TUBE

main44774-28260iGSR50..RHD200611-201605

main44774-28270iACR50..LHD200601-201605

main44774-28280iGSR50..LHD200611-201605

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iGSR50..RHD..GEN201212-201605

main96133-41500iGSR50;ACR50..LHD200601-201211

44783CLAMP, VACUUM HOSE

main44783-44010iACR50..GCC,GEN200601-201906

44785GASKET, BRAKE BOOSTER

main44785-12040iACR50..AERAS201008-201906

main44785-28010iACR50,GSR50200601-201007

sub44785-12040

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iACR50,GSR50..DLX,GL201204-201906

main47264-30060iGSR50..RHD200812-201409

VSC-WITH

main47264-63020iACR50..4FC..(GCC,GEN)201204-201605

9017906274

main90179-06274

9017910065

main90179-10065

9165160616

main91651-60616

9415180800

main94151-80800

16 parts on this diagram · 4 diagrams in section
