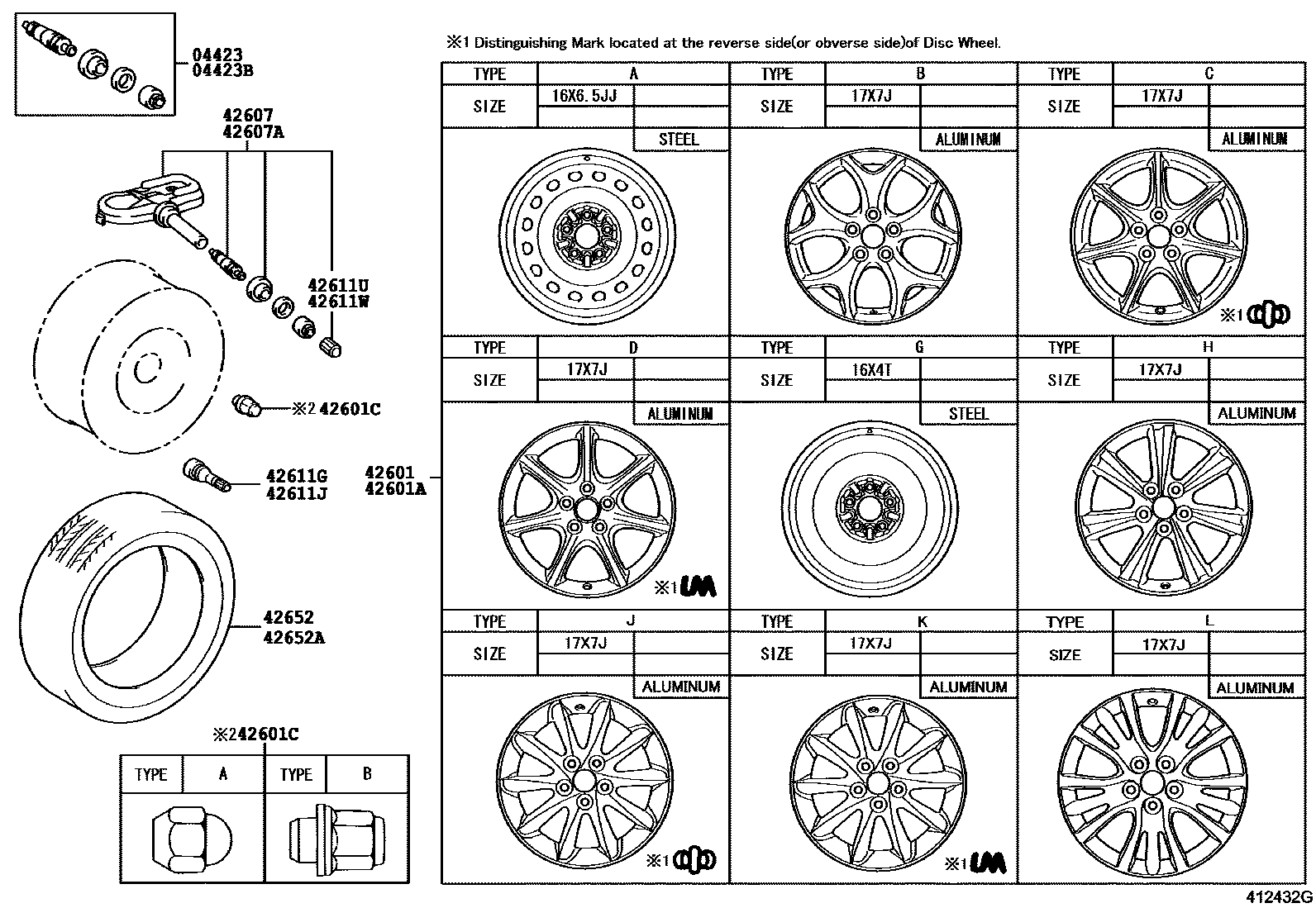

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM,TYPE B:REFER ILLUST.
17X7J, #,TYPE B:REFER ILLUST.
17X7J, #,TYPE H:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM,TYPE H:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS),TYPE J:REFER ILLUST.
sub42611-28771
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS),TYPE J:REFER ILLUST.
sub42611-28772
17X7J, #,TYPE J:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM,TYPE J:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS),TYPE J:REFER ILLUST.
18X7J, #,TYPE M:REFER ILLUST.
17X7J, #,TYPE L:REFER ILLUST.
16X6.5JJ, #,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL,TYPE A:REFER ILLUST.
sub42611-58021
16X6.5JJ, #,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL,TYPE A:REFER ILLUST.
sub42611-58022
16X6.5JJ, #,TYPE A:REFER ILLUST.
16X6.5JJ, #,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL,TYPE A:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE G:REFER ILLUST.
17X7J, #,TYPE B:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM,TYPE B:REFER ILLUST.
17X7J, #,TYPE H:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM,TYPE H:REFER ILLUST.
17X7J, #,BEIJING SPEC,TYPE J:REFER ILLUST.
sub42611-28771
17X7J, #,TYPE J:REFER ILLUST.
sub42611-28771
17X7J, #,CHINA SPEC,TYPE J:REFER ILLUST.
sub42611-28771
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS),TYPE J:REFER ILLUST.
sub42611-28771
17X7J, #,CHINA SPEC,TYPE J:REFER ILLUST.
sub42611-28772
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS),TYPE J:REFER ILLUST.
sub42611-28772
17X7J, #,BEIJING SPEC,TYPE J:REFER ILLUST.
sub42611-28772
17X7J, #,BEIJING SPEC,TYPE J:REFER ILLUST.
17X7J, #,TYPE J:REFER ILLUST.
17X7J, #,CHINA SPEC,TYPE J:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS),TYPE J:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM,TYPE J:REFER ILLUST.
16X6.5JJ, #,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL,TYPE A:REFER ILLUST.
sub42611-58021
16X6.5JJ, #,TYPE A:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17 7J ALUMINUM,TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS),TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
42611JVALVE (FOR TUBELESS TIRE SPARE)
TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
42652TIRE
205/65R16,*B/S,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL
205/65R16,*B/S
205/65R16,*B/S,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL
205/65R16,*B/S
205/65R16,*Y/H
205/65R16,*Y/H,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL
205/65R16,*B/S
205/65R16,*Y/H
205/65R16,*Y/H,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
215/55R17,*T/Y
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
sub42652-28801
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
sub42652-28801
215/55R17,*T/Y
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
sub42652-28811
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
sub42652-28811
215/55R17,*Y/H
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
sub42652-28821
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
sub42652-28821
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
215/55R17,*Y/H
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
42652ATIRE (FOR SPARE)
205/65R16,*B/S
205/65R16,*B/S,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL
205/65R16,*B/S,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL
205/65R16,*B/S
205/65R16,*Y/H
205/65R16,*Y/H,TIRE & DISC WHEEL-205/65R16 6.5JJ STEEL
205/65R16,*B/S
205/65R16,*Y/H
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
215/55R17,*T/Y
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
sub42652-28801
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
sub42652-28801
215/55R17,*T/Y,CHINA SPEC
215/55R17,*T/Y
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
215/55R17,*T/Y,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
215/55R17,*T/Y,BEIJING SPEC
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
sub42652-28811
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
sub42652-28811
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
215/55R17,*Y/H
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
sub42652-28821
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
sub42652-28821
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM
215/55R17,*Y/H,TIRE & DISC WHEEL-215/55R17 7J ALUMINUM(AERAS)
215/55R17,*Y/H
215/55R17,*Y/H,CHINA SPEC
215/55R17,*Y/H,BEIJING SPEC
T145/90D16,GOODYEAR
T145/90D16,*Y/H
13 parts on this diagram · 4 diagrams in section
