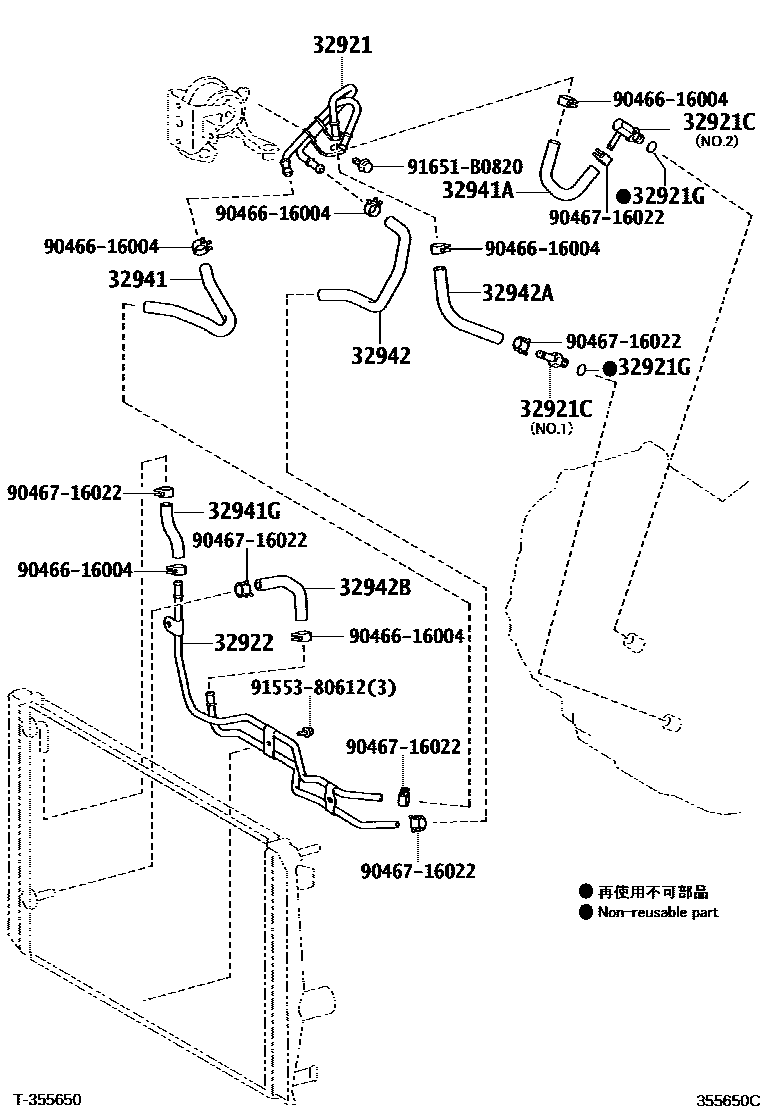

OIL COOLER & TUBE (ATM)

0001 1U241E 0002 1U241E,AIR COOLING OIL COOLER 0003 1U660E 0004 1U660E,AIR COOLING OIL COOLER 0005 1U241E 0006 1U241E,AIR COOLING OIL COOLER 0007 1U660E 0009 1U660E,AIR COOLING OIL COOLER

32921TUBE, OIL COOLER INLET, NO.1

main32907-28030iGSR50200611-200812

main32907-28040iACR50200601-200812

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iACR50200601-201602

NO.1

sub90404-13010

main90404-13010iACR50..4FC201603-201605

NO.1

main90407-13009iACR50200601-201602

NO.2

sub90407-13010

main90407-13010iACR50..4FC201603-201605

NO.2

main90407-14032iGSR50200611-201605

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iACR50200601-201605

main90301-11006iGSR50200611-201108

main90301-11031iGSR50..RHD..GEN201108-201605

32922TUBE, OIL COOLER OUTLET, NO.1

main32907-28050iACR50,GSR50200601-201605

32941HOSE, OIL COOLER INLET, NO.1

main32941-28260iGSR50200611-200812

main32941-28280iACR50200601-200812

main32941-28290iGSR50..GCC200812-201605

main32941-28300iACR50..4FC200812-201605

main32941-58030iGSR50..RHD200812-201605

32941AHOSE, OIL COOLER INLET, NO.2

main32941-28270iACR50200601-200812

main90445-17100iGSR50200611-200812

32941GHOSE, OIL COOLER INLET, NO.3

main90445-17179iACR50,GSR50200601-201605

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-28280iGSR50..ARL,GEN200611-200812

main32942-28290iACR50200601-200812

main32942-28310iGSR50..ARL200611-200812

TOWING PACKAGE-WITH

main32942-28330iGSR50..GCC200812-201605

main32942-28340iACR50..4FC..(GCC,GEN)200812-201605

main32942-58020iGSR50..GEN200812-201605

main32942-28320iACR50..ARL200601-200812

TOWING PACKAGE-WITH

main32942-28350iACR50..ARL200812-201205

TOWING PACKAGE-WITH

32942AHOSE, OIL COOLER OUTLET, NO.2

main90445-17100iACR50200601-200812

main90445-17179iGSR50200611-200812

32942BHOSE, OIL COOLER OUTLET, NO.3

main32942-28270iACR50,GSR50200601-201605

9046616004

main90466-16004

9046716022

main90467-16022

9155380612

main91553-80612

91651B0820

main91651-B0820

14 parts on this diagram · 8 diagrams in section
