TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

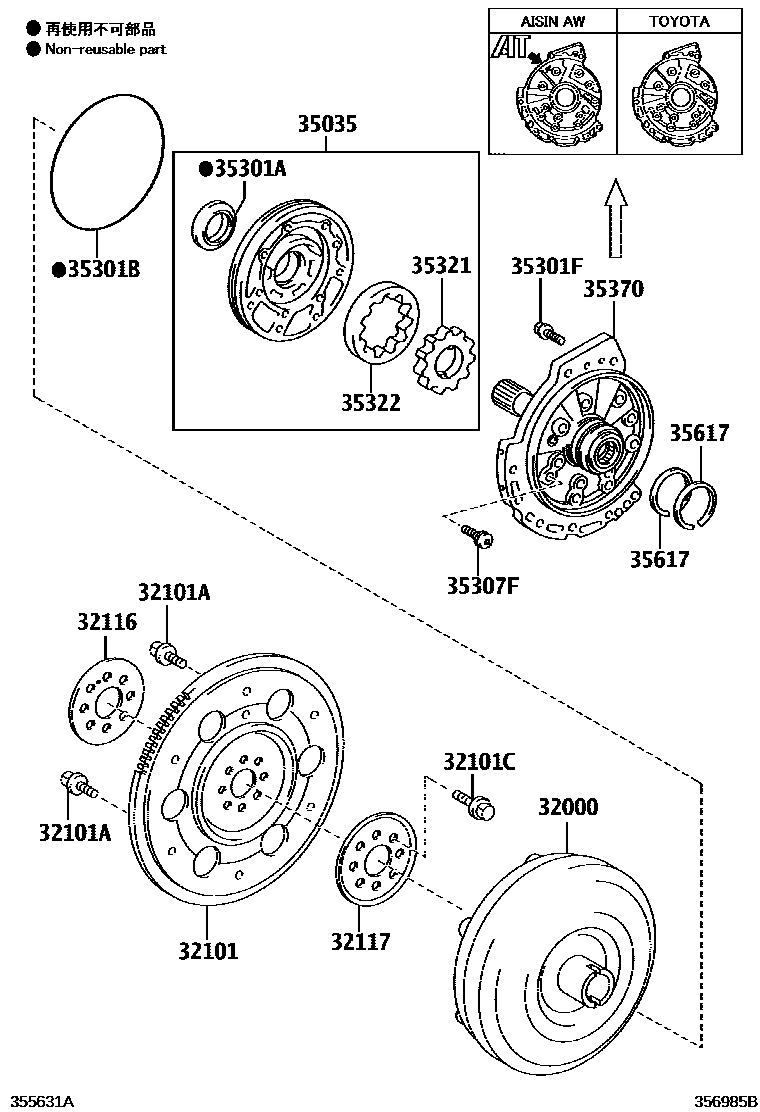

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-28150i201310-201605
*345
main32000-28150i201605
main32000-33131i200611-200812
sub32000-33132
main32000-33132i200812-201605
sub32000-33160
main32000-33133i200905-201103
sub32000-33132
main32000-44060i201204-201310
*344
main32000-44060i200601-201205
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06040i200808-201605
(L)
main32101-28040i200601-201605
(J)
main32101-28040i201605
main32101-48010i200611-201605
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200601-201605
*9-1.25PX12.4-7.3,BLACK
main90119-09025i200601-201605
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i200611-201605
*10-1.25PX18-13
main90105-10048i200812-201003
*10-1.25PX18-13,(J)
main90105-12184i200601-201605
*12-1.25PX22-16
sub90105-12384
main90105-12184i200812-201005
*12-1.25PX22-16,(J)
sub90105-12384
main90105-A0022i200812-201003
*10-1.25PX18-13,(L)
sub90105-10048
main90105-A0060i200812-201005
*12-1.25PX22-16,(L)
sub90105-12184
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i200601-201605
main32116-32020i200611-201605
32117SPACER, DRIVE PLATE, REAR
main32117-06010i201112-201605
(L)
main32117-20060i200601-201112
main32117-20060i201112-201605
(J)
main32117-32020i200611-201605
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-12070i201310-201605
main35035-21020i200601-201010
TOYOTA:REFER TO ILL.
sub35035-28010
main35035-28010i201010-201310
sub35035-12070
main35035-28010i200601-201010
AISIN AW:REF.ILLUST
sub35035-12070
main35035-33030i200611-201108
sub35035-33031
main35035-33031i201108-201605
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38083i200601-201605
main90311-43010i200611-201605
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-33010i201105-201605
main90301-99099i200601-201605
main90301-99158i200611-201105
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i201204-201310
*8-1.25PX28-28,*344
main90105-08050i200601-201205
*8-1.25PX28-28
main90105-08198i201310-201605
*8-1.25PX28-28,*345
main90105-08198i201605
*8-1.25PX28-28
main91551-80835i200611-201605
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
main90148-60027i200601-201605
main90148-60064i200611-201605
NO.1
main90148-60065i200611-201605
NO.2
35321GEAR, FRONT OIL PUMP DRIVE
main35321-21060i200601-201010
T=10.690-10.699,TOYOTA:REFER TO ILL.
sub35321-28060
main35321-21070i200601-201010
T=10.700-10.709,TOYOTA:REFER TO ILL.
sub35321-28070
main35321-21080i200601-201010
T=10.710-10.720,TOYOTA:REFER TO ILL.
sub35321-28080
main35321-21090i200601-201010
T=10.721-10.730,TOYOTA:REFER TO ILL.
sub35321-28090
main35321-21100i200601-201010
T=10.731-10.740,TOYOTA:REFER TO ILL.
sub35321-28100
main35321-28060i201204-201605
T=10.715,MARK 1
main35321-28060i200601-201205
T=10.715,MARK 1,AISIN AW:REF.ILLUST
main35321-28070i200601-201205
T=10.715,MARK 2,AISIN AW:REF.ILLUST
main35321-28070i201204-201605
T=10.715,MARK 2
main35321-28080i200601-201205
T=10.715,MARK 3,AISIN AW:REF.ILLUST
main35321-28080i201204-201605
T=10.715,MARK 3
main35321-28090i201204-201605
T=10.715,MARK 4
main35321-28090i200601-201205
T=10.715,MARK 4,AISIN AW:REF.ILLUST
main35321-28100i201204-201605
T=10.715,MARK 5
main35321-28100i200601-201205
T=10.715,MARK 5,AISIN AW:REF.ILLUST
main35321-33110i200611-201010
T=11.567,MARK 1
sub35321-33111
main35321-33111i201010-201605
T=11.567,MARK 1
main35321-33120i200611-201010
T=11.567,MARK 2
sub35321-33121
main35321-33121i201010-201605
T=11.567,MARK 2
main35321-33130i200611-201010
T=11.567,MARK 3
sub35321-33131
main35321-33131i201010-201605
T=11.567,MARK 3
main35321-33140i200611-201010
T=11.567,MARK 4
sub35321-33141
main35321-33141i201010-201605
T=11.567,MARK 4
main35321-33150i200611-201010
T=11.567,MARK 5
sub35321-33151
main35321-33151i201010-201605
T=11.567,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-21060i200601-201010
T=10.690-10.699,TOYOTA:REFER TO ILL.
sub35322-28060
main35322-21070i200601-201010
T=10.700-10.709,TOYOTA:REFER TO ILL.
sub35322-28070
main35322-21080i200601-201010
T=10.710-10.720,TOYOTA:REFER TO ILL.
sub35322-28080
main35322-21090i200601-201010
T=10.721-10.730,TOYOTA:REFER TO ILL.
sub35322-28090
main35322-21100i200601-201010
T=10.731-10.740,TOYOTA:REFER TO ILL.
sub35322-28100
main35322-28060i200601-201205
T=10.715,MARK 1,AISIN AW:REF.ILLUST
main35322-28060i201204-201605
T=10.715,MARK 1
main35322-28070i200601-201205
T=10.715,MARK 2,AISIN AW:REF.ILLUST
main35322-28070i201204-201605
T=10.715,MARK 2
main35322-28080i201204-201605
T=10.715,MARK 3
main35322-28080i200601-201205
T=10.715,MARK 3,AISIN AW:REF.ILLUST
main35322-28090i201204-201605
T=10.715,MARK 4
main35322-28090i200601-201205
T=10.715,MARK 4,AISIN AW:REF.ILLUST
main35322-28100i200601-201205
T=10.715,MARK 5,AISIN AW:REF.ILLUST
main35322-28100i201204-201605
T=10.715,MARK 5
main35322-33110i200611-201605
T=11.567,MARK 1
main35322-33120i200611-201605
T=11.567,MARK 2
main35322-33130i200611-201605
T=11.567,MARK 3
main35322-33140i200611-201605
T=11.567,MARK 4
main35322-33150i200611-201605
T=11.567,MARK 5
35370SHAFT ASSY, STATOR
main35370-12110i201310-201605
main35370-21020i200601-201005
TOYOTA:REFER TO ILL.
sub35370-28010
main35370-28010i200601-201005
AISIN AW:REF.ILLUST
sub35370-12110
main35370-28010i201005-201310
sub35370-12110
main35370-33031i200611-201605
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i200601-201605

15 parts on this diagram · 2 diagrams in section
