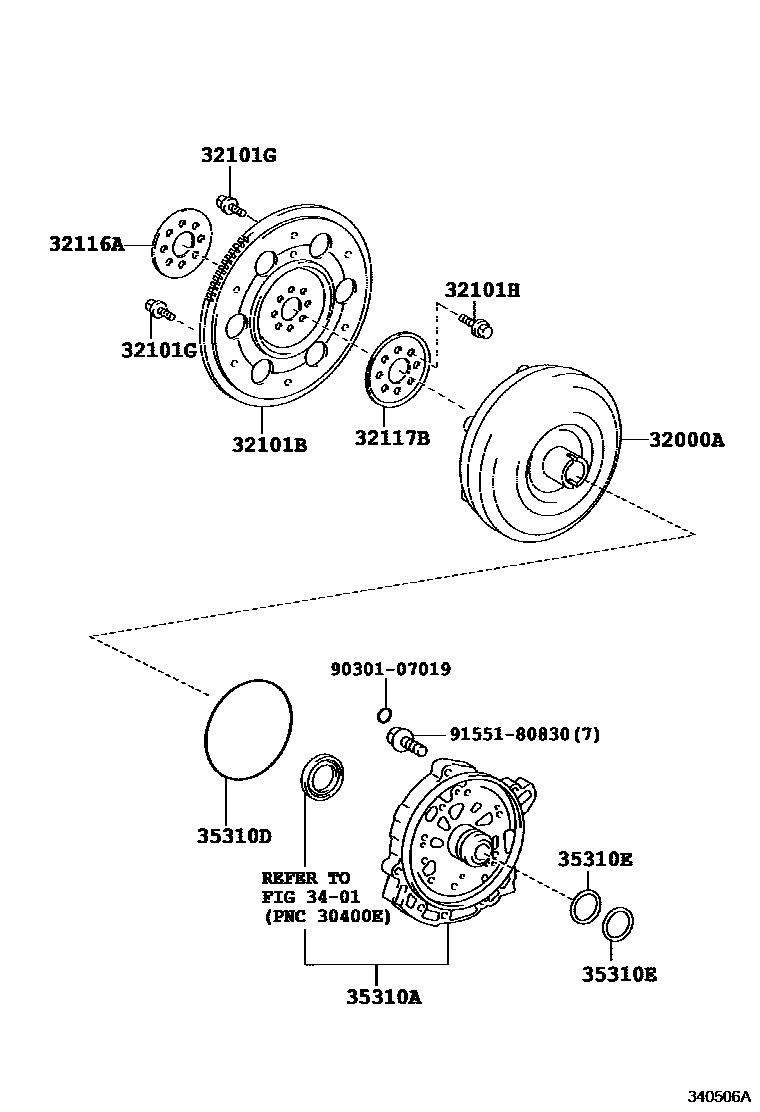

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K112 0003 1K112

32000ACONVERTER ASSY, TORQUE

main32000-42050iACR50..CVT201003-201906

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06040iACR50..CVT201003-201605

(L)

main32101-28040iACR50..CVT201003-201605

(J)

main32101-28040iACR50..AERAS201605-201906

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iACR50..CVT201003-201906

*9-1.25PX12.4-7.3,BLACK

main90119-09025iACR50..CVT201003-201906

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184iACR50..CVT201003-201204

(J)

sub90105-12384

main90105-12184iACR50..CVT201204-201906

sub90105-12384

main90105-A0060iACR50..CVT201003-201005

(L)

sub90105-12184

32116ASPACER, DRIVE PLATE, FRONT

main32116-20050iACR50..CVT201003-201906

32117BSPACER, DRIVE PLATE, REAR

main32117-06010iACR50..CVT201112-201605

(L)

main32117-20060iACR50..CVT201003-201906

main32117-20060iACR50..CVT201112-201605

(J)

3401

35310APUMP ASSY, FRONT OIL

main35310-28030iACR50..CVT201003-201303

sub35310-28031

main35310-28031iACR50..CVT..(DLX,GL)..GEN201303-201906

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99090iACR50..CVT201003-201611

main90301-99201iACR50..AERAS201612-201906

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-28020iACR50..CVT..(DLX,GL)..GEN201211-201906

main35617-44010iACR50..CVT..(DLX,GL)..GEN201003-201211

sub35617-28020

9030107019

main90301-07019

9155180830

main91551-80830
