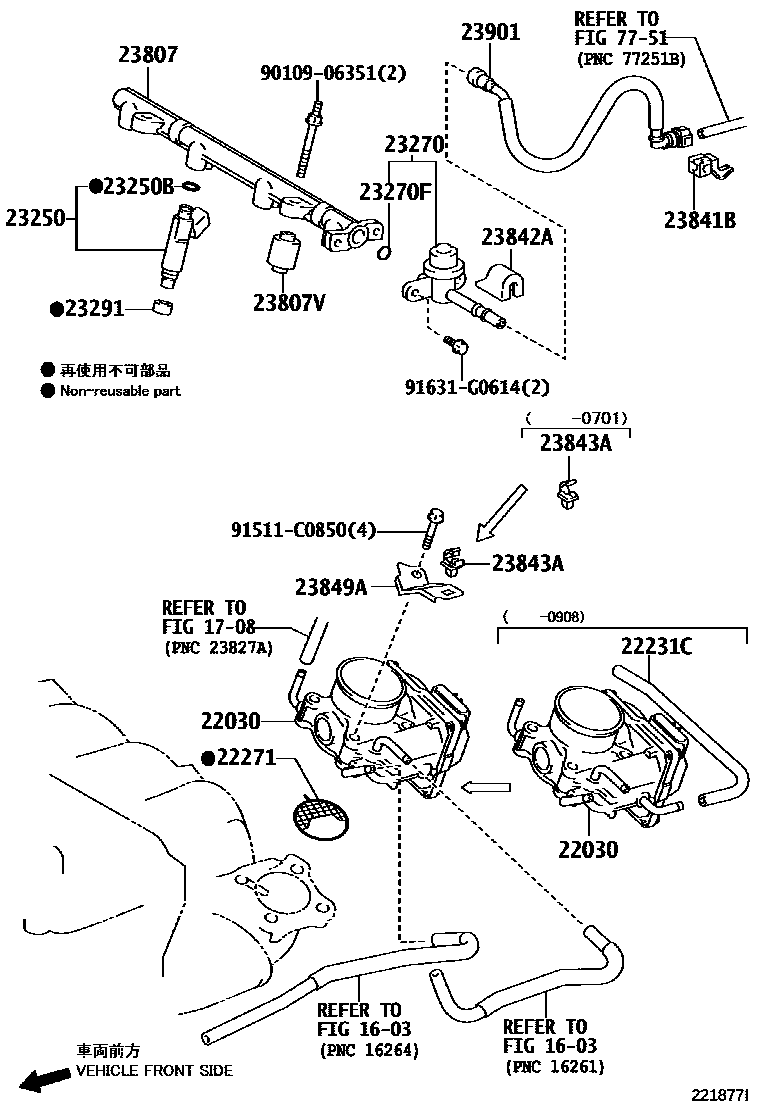

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28070i2AZFE..ACR50¥83,600200601-200908

sub22030-28071¥69,700

main22030-28071i2AZFE..ACR50..GCC,GEN¥69,700200908-201906

main22030-31030i2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN¥58,000200611-201605

22231CHOSE, THROTTLE BODY, NO.1

main22231-28060i2AZFE..ACR50¥770200601-200908

22271GASKET, THROTTLE BODY

main22271-31040i2GRFE..GSR50¥340200611-201605

main22271-75031i2AZFE..ACR50..GCC,GEN¥250200601-201906

23250INJECTOR ASSY, FUEL

main23209-28080i2AZFE..ACR50..(AERAS,DLX)..GEN¥16,800200601-201605

*195

main23209-28080i2AZFE..ACR50..(AERAS,DLX)..GEN¥16,800201204-201605

2AZ-FE,*195

main23209-28080i2AZFE..ACR50..AERAS¥16,800201605-201906

main23209-31050i2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN¥14,000200611-201605

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i2AZFE..ACR50¥190200601-200607

*195

main90301-07033i2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN¥140200611-201605

main90301-07037i2AZFE..ACR50..(AERAS,DLX)..GEN¥140201204-201605

2AZ-FE,*194

main90301-07037i2AZFE..ACR50¥140200607-201605

*195

main90301-07037i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥140201204-201605

2AZ-FE,*195

main90301-07037i2AZFE..ACR50..AERAS¥140201605-201906

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28050i2AZFE..ACR50¥9,100200601-200702

*195

sub23270-28051¥9,100

main23270-28051i2AZFE..ACR50¥9,100200702-200801

*195

sub23270-28052¥9,200

main23270-28052i2AZFE..ACR50¥9,200200801-201412

*195

main23270-28052i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥9,200201204-201412

2AZ-FE,*195

main23270-28070i2AZFE..ACR50..DLX,GL201605-201906

main23270-28070i2AZFE..ACR50201412-201605

*195

main23270-28070i2AZFE..ACR50201412-201605

2AZ-FE,*195

main23270-31010i2GRFE..GSR50¥6,400200611-200708

sub23270-31080¥6,400

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFE..ACR50¥140200601-201605

*195

main90301-07037i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥140201204-201605

2AZ-FE,*194

main90301-07037i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥140201204-201605

2AZ-FE,*195

main90301-07037i2AZFE..ACR50..AERAS¥140201605-201906

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN¥240200611-201906

main23291-23010i2AZFE..ACR50¥240201208-201605

*195

main23291-23010i2AZFE..ACR50¥240201208-201605

2AZ-FE,*195

main23291-28020i2GRFE..GSR50¥310201805

main23291-41010i2AZFE..ACR50..(AERAS,DLX)..GEN¥340201204-201208

2AZ-FE,*194

main23291-41010i2AZFE..ACR50..(AERAS,DLX)..GEN¥340200601-201208

*195

main23291-41010i2AZFE..ACR50..(AERAS,DLX)..GEN¥340201204-201208

2AZ-FE,*195

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31040i2GRFE..GSR50¥13,300200611-200708

main23807-31090i2GRFE..GSR50..RHD¥13,400200708-201605

main23814-28031i2AZFE..ACR50..(AERAS,DLX)..GEN¥9,400201204-201412

2AZ-FE,*195

sub23814-28060¥7,800

main23814-28031i2AZFE..ACR50¥9,400200601-201412

*195

sub23814-28060¥7,800

main23814-28060i2AZFE..ACR50¥7,800201412-201605

2AZ-FE,*195

main23814-28060i2AZFE..ACR50..(AERAS,DLX)..GEN¥7,800201412-201605

*195

main23814-28060i2AZFE..ACR50..AERAS¥7,800201605-201906

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i2AZFE..ACR50¥180200601-201605

*195

main90561-08053i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥180201204-201605

2AZ-FE,*195

main90561-08053i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥180201204-201605

2AZ-FE,*194

main90561-08053i2AZFE..ACR50..AERAS¥180201605-201906

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-28020i2GRFE..GSR50..RHD..GEN¥700200601-201906

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2AZFE..ACR50¥550200601-200707

main23842-28010i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥500200707-201906

main23842-31020i2GRFE..GSR50¥450200611-201605

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-28010i2AZFE..ACR50..ARL¥220200701-201906

main90469-12012i2AZFE..ACR50¥210200601-200701

23849ASUPPORT, FUEL PIPE

main23849-28050i2AZFE..ACR50..ARL¥300200601-201906

23901TUBE SUB-ASSY, FUEL

main23901-28360i2AZFE..ACR50..ARL¥4,540200601-201906

main23901-31080i2GRFE..GSR50..RHD¥4,570200611-201605

7751

9010906351

main90109-06351¥130

91511C0850

main91511-C0850¥110

91631G0614

main91631-G0614¥60

21 parts on this diagram · 2 diagrams in section
