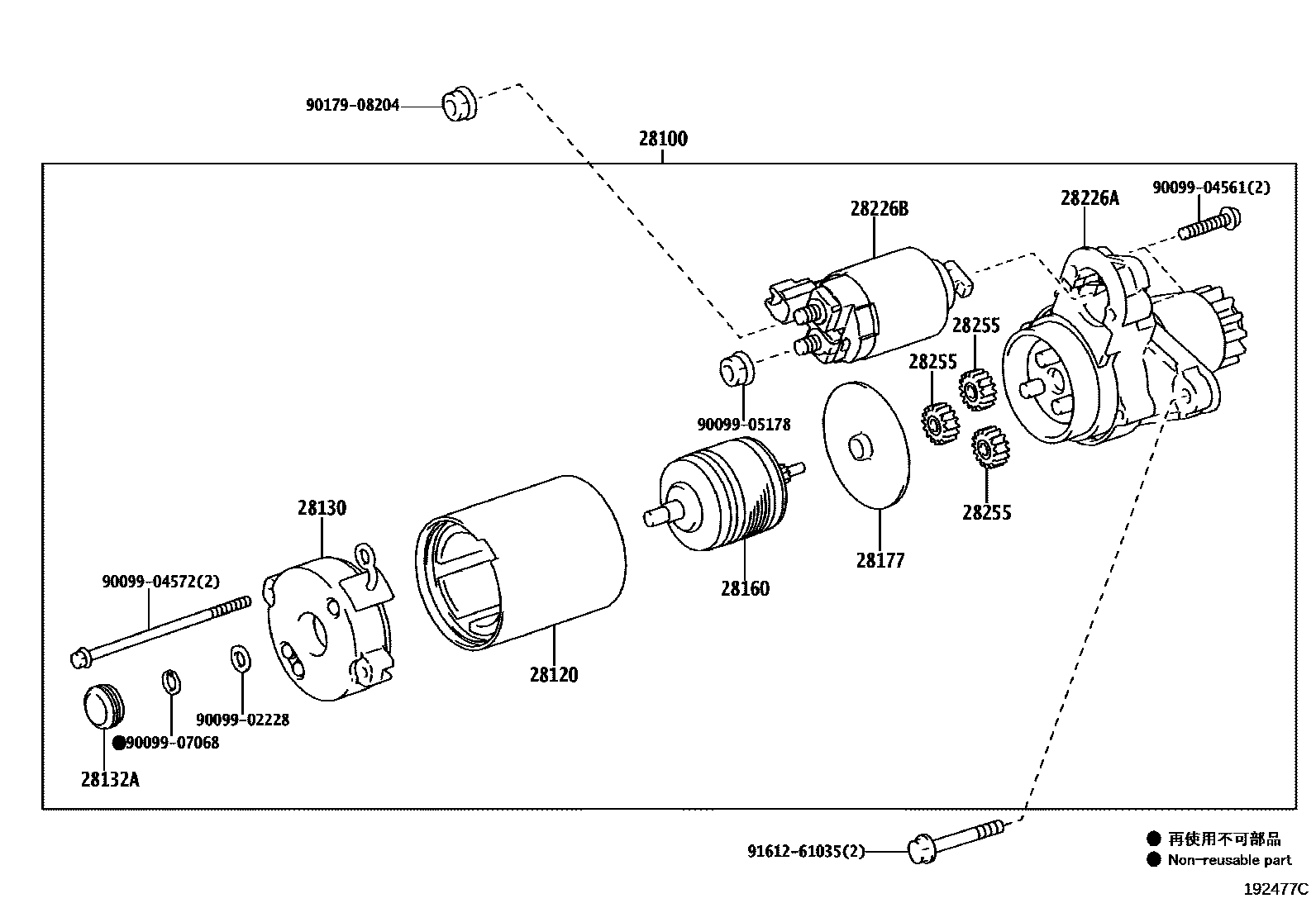

STARTER

0001 112V 1.6KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-20020i2GRFE..GSR50;2AZFE..ACR50..LHD..GL..GEN200812-200911

12V 1.7KW

main28100-20021i2GRFE..GSR50..LHD;2AZFE..ACR50..LHD..GL..GEN200912-201204

12V 1.7KW

main28100-20022i2AZFE..ACR50..LHD..CVT201408-201605

12V 1.7KW

main28100-28041i2AZFE..ACR50..LHD..GL..GEN200601-200812

12V 1.6KW,TAIWAN SPEC

main28100-28042i2AZFE..ACR50..ARL200912-201205

12V 1.6KW

main28100-28072i2GRFE..GSR50201802

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-28040i2AZFE,2GRFE..ACR50,GSR50200601-200808

main28120-28060i2GRFE..GSR50..RHD..GEN201204-201409

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2GRFE..GSR50..LHD;2AZFE..ACR50..LHD..GL..GEN200812-201204

main28130-28040i2AZFE..ACR50..LHD..GL..GEN200601-200812

HONDURAS SPEC

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2AZFE,2GRFE..ACR50,GSR50200601-200812

28160ARMATURE ASSY, STARTER

main28160-28040i2GRFE..GSR50..RHD..GEN201204-201409

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2AZFE..ACR50..ARL;2GRFE..GSR50..RHD200812-201205

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i2GRFE..GSR50201605-201802

main28226-28060i2GRFE..GSR50201802

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i2GRFE..GSR50..LHD;2AZFE..ACR50..GCC,GEN200812-201204

28255GEAR, PLANET

main28255-20020×3i2GRFE..GSR50;2AZFE..ACR50..LHD..GL..GEN200601-200812

main28255-28040×3i2AZFE..ACR50..LHD..GL..GEN200812-201204

HONDURAS SPEC

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9161261035

main91612-61035

16 parts on this diagram · 2 diagrams in section
