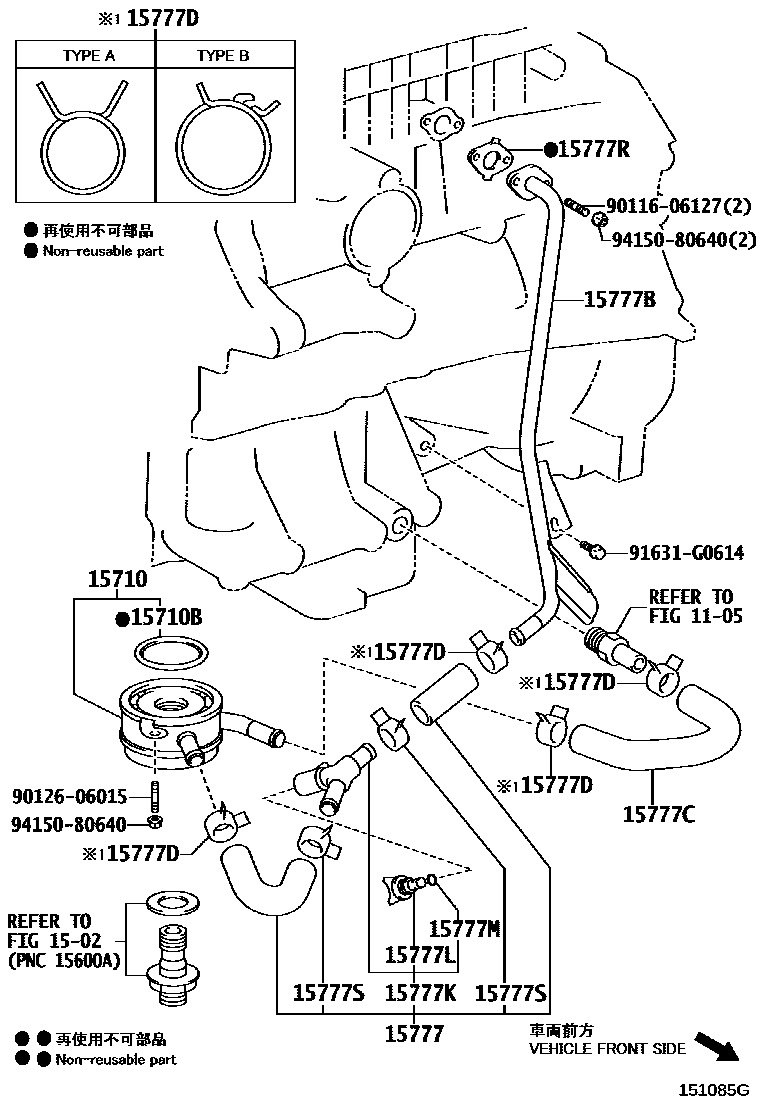

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1 0005 1

1105

1502

15710COOLER ASSY, OIL

main15710-28020i2AZFE..ACR50..ARL200601-201906

main15710-28020i2AZFE..ACR50..GL;2AZFE..ACR50..CVT..ARL;2AZFE..ACR50..DLX..GCC201204-201605

SINGAPORE SPEC

15710BRING, O(FOR OIL COOLER)

main90301-52006i2AZFE..ACR50200601-201906

main90301-52006i2AZFE..ACR50..GL;2AZFE..ACR50..CVT..ARL;2AZFE..ACR50..DLX..GCC201204-201605

SINGAPORE SPEC

15777HOSE, OIL COOLER

main16267-28020i2AZFE..ACR50..DLX..GEN201204-201212

SINGAPORE SPEC

sub16267-28080

main16267-28020i2AZFE..ACR50200601-201205

sub16267-28080

main16267-28080i2AZFE..ACR50..GL;2AZFE..ACR50..DLX..(ARL,GCC)201212-201605

SINGAPORE SPEC

main16267-28080i2AZFE..ACR50..DLX,GL201605-201906

15777BPIPE, OIL COOLER

main16279-28010i2AZFE..ACR50..4FC..(GCC,GEN)200601-201605

main16288-28030i2AZFE..ACR50..DLX..GEN201204-201605

SINGAPORE SPEC

main16288-28030i2AZFE..ACR50..AERAS201605-201906

15777CHOSE, OIL COOLER

main16281-28010i2AZFE..ACR50..DLX..GEN201204-201605

SINGAPORE SPEC

main16281-28010i2AZFE..ACR50200601-201906

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96134-41900i2AZFE..ACR50200601-201205

main96134-41900i2AZFE..ACR50..GL;2AZFE..ACR50..CVT..ARL;2AZFE..ACR50..DLX..GCC201204-201207

SINGAPORE SPEC

main96134-41900i2AZFE..ACR50..GL;2AZFE..ACR50..DLX..(ARL,GCC)201207-201906

TYPE A:REFER ILLUST.

main96134-41900i2AZFE..ACR50..GL;2AZFE..ACR50..DLX..(ARL,GCC)201207-201605

SINGAPORE SPEC,TYPE A:REFER ILLUST.

main96136-42201i2AZFE..ACR50..DLX..GEN201207-201906

TYPE B:REFER ILLUST.

main96136-42201i2AZFE..ACR50..GL;2AZFE..ACR50..DLX..(ARL,GCC)201207-201605

SINGAPORE SPEC,TYPE B:REFER ILLUST.

15777KCOCK ASSY, DRAIN(FOR OIL COOLER HOSE)

main90910-09119i2AZFE..ACR50200601-201205

main90910-09119i2AZFE..ACR50..GL;2AZFE..ACR50..CVT..ARL;2AZFE..ACR50..DLX..GCC201204-201212

SINGAPORE SPEC

15777LPLUG,AIR(FOR OIL COOLER DRAIN COCK)

main23322-54010i2AZFE..ACR50200601-201205

main23322-54010i2AZFE..ACR50..GL;2AZFE..ACR50..CVT..ARL;2AZFE..ACR50..DLX..GCC201204-201212

SINGAPORE SPEC

15777MRING, O(FOR OIL COOLER DRAIN COCK)

main16492-21050i2AZFE..ACR50200601-201205

main16492-21050i2AZFE..ACR50..GL;2AZFE..ACR50..CVT..ARL;2AZFE..ACR50..DLX..GCC201204-201212

SINGAPORE SPEC

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main16258-28040i2AZFE..ACR50200601-201605

15777SCLAMP OR CLIP, HOSE

main96134-41900i2AZFE..ACR50200601-201205

main96134-41900i2AZFE..ACR50..GL;2AZFE..ACR50..CVT..ARL;2AZFE..ACR50..DLX..GCC201204-201212

SINGAPORE SPEC

9011606127

main90116-06127

9012606015

main90126-06015

91631G0614

main91631-G0614

9415080640

main94150-80640
