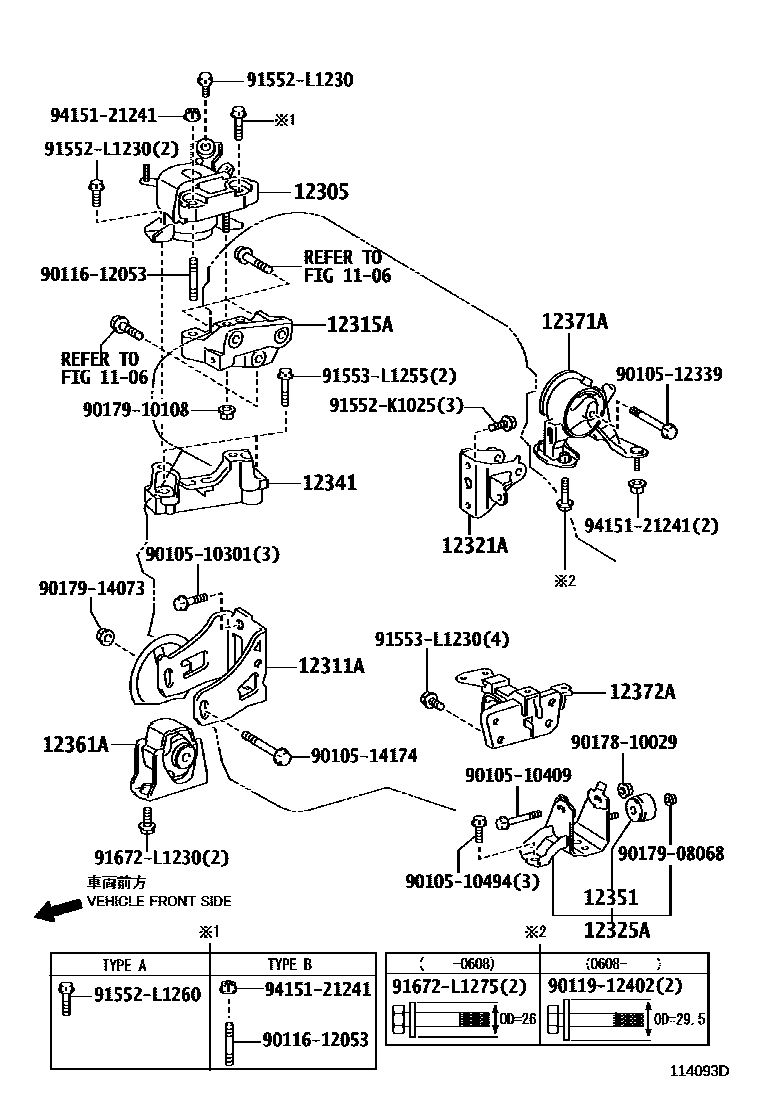

MOUNTING

0001 1 0002 1 0003 1

1106

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-28230i2AZFE..ACR50¥15,200200601-201309

sub12305-28231¥12,600

main12305-28231i2AZFE..ACR50..AERAS¥12,600201310-201906

main12305-31031i2GRFE..GSR50..RHD..GEN¥15,400200611-201605

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28240i2AZFE..ACR50¥3,420200601-201002

sub12311-28241¥3,420

main12311-28241i2AZFE..ACR50¥3,420201003-201010

main12311-28330i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥2,530201010-201906

main12311-31100i2GRFE..GSR50¥3,790200611-201605

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31130i2GRFE..GSR50¥6,400200611-201605

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-28090i2AZFE..ACR50..(AERAS,DLX)..GEN¥4,540200601-201605

*195

main12315-28090i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥4,540201204-201605

2AZ-FE,*194

main12315-28090i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)¥4,540201204-201605

2AZ-FE,*195

main12315-28090i2AZFE..ACR50..AERAS¥4,540201605-201906

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-28190i2AZFE..ACR50..ARL¥2,530200601-201906

main12321-31070i2GRFE..GSR50¥3,480200611-201605

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-28130i2AZFE..ACR50..CVT¥4,570201003-201906

main12304-28150i2AZFE..ACR50..4FC..(GCC,GEN)200601-201605

main12304-31020i2GRFE..GSR50..LHD¥5,900200611-201605

12341SPACER, ENGINE MOUNTING

main12341-26010i2AZFE..ACR50¥11,300200601-200801

sub12341-26011¥7,700

main12341-26011i2GRFE..GSR50¥7,700200802-201906

12351DAMPER, ENGINE MOUNTING

main12351-22100i2AZFE..ACR50¥2,080200601-201605

main12351-23040i2GRFE..GSR50..RHD¥1,820200611-201605

main12351-28090i2AZFE..ACR50..CVT¥1,560201003-201906

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28240i2AZFE..ACR50¥4,970200601-200807

main12361-28280i2AZFE..ACR50..AERAS¥4,970200808-201906

main12361-31230i2GRFE..GSR50¥9,700200611-200807

MARK = 53

sub12361-31231¥8,000

main12361-31231i2GRFE..GSR50..RHD..GEN¥8,000200812-201605

main12361-31231i2GRFE..GSR50¥8,000200808-200812

MARK = 83

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-28240i2AZFE..ACR50..AERAS¥7,000201003-201906

main12371-28250i2AZFE..ACR50..4FC..(GCC,GEN)200601-201605

main12371-31150i2GRFE..GSR50..RHD¥8,000200611-201605

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-28280i2AZFE..ACR50..4FC..(GCC,GEN)200601-201605

main12372-28390i2AZFE..ACR50..CVT¥8,900201003-201906

main12372-31030i2GRFE..GSR50¥9,000200611-201605

9010510301

main90105-10301¥110

9010510409

main90105-10409¥270

9010510494

main90105-10494¥100

9010512339

main90105-12339¥330

9010514174

main90105-14174¥400

9011612053

main90116-12053¥310

9011912402

main90119-12402¥270

9017810029

main90178-10029¥100

9017908068

main90179-08068¥100

9017910108

main90179-10108¥150

9017914073

main90179-14073¥240

91552K1025

main91552-K1025¥100

91552L1230

main91552-L1230¥160

91552L1260

main91552-L1260¥240

91553L1230

main91553-L1230¥210

91553L1255

main91553-L1255¥270

91672L1230

main91672-L1230¥190

91672L1275

main91672-L1275¥310

9415121241

main94151-21241¥100

31 parts on this diagram · 3 diagrams in section
