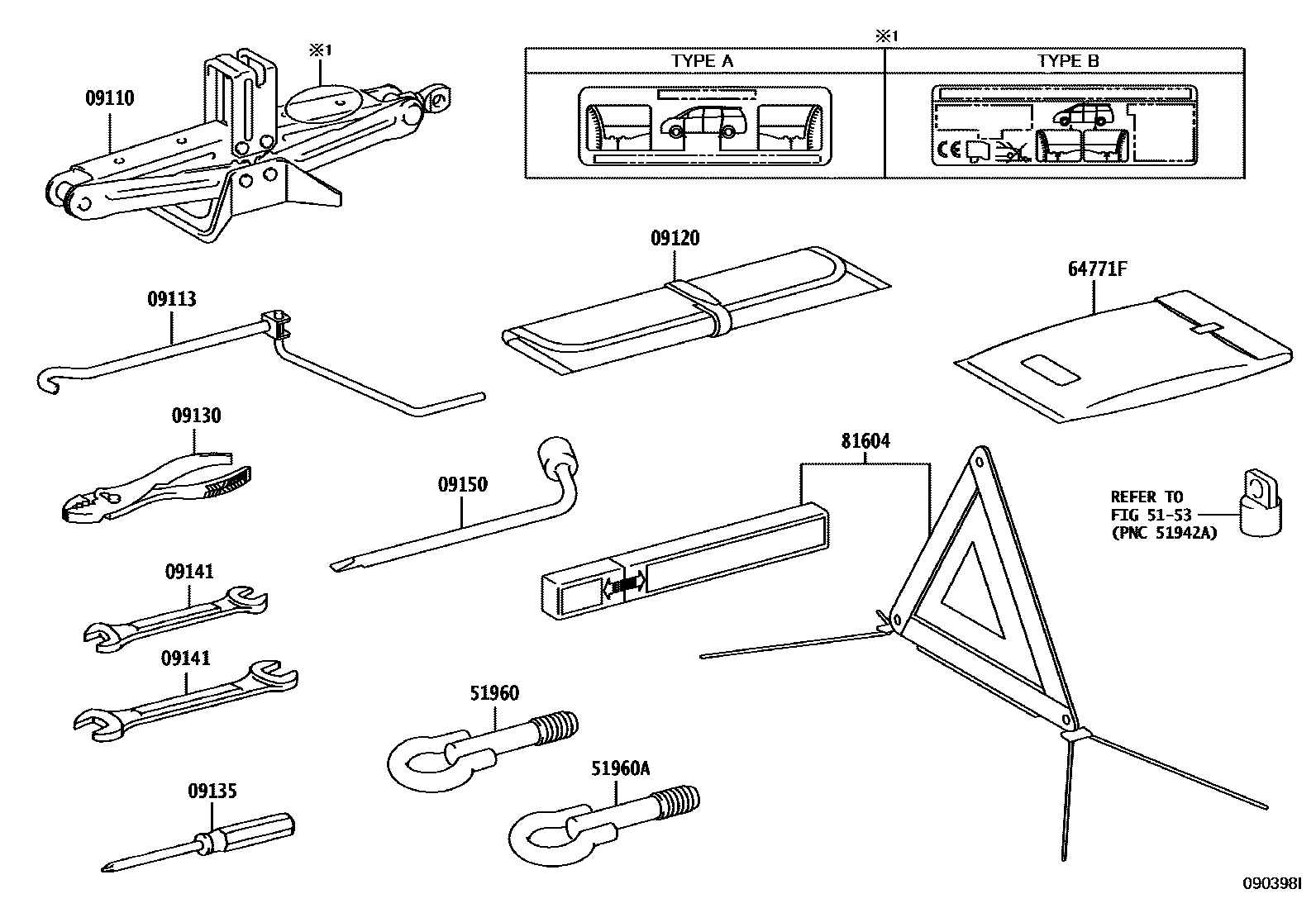

STANDARD TOOL

09110JACK ASSY

main09110-28150iACR50,GSR50..ARL201601-201605

main09110-28180iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN;ACR50,GSR50..RHD..GEN200601-201103

PHILIPPINES SPEC

sub09111-28160

main09110-28180iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN;ACR50,GSR50..RHD..GEN200601-201103

JORDAN SPEC

sub09111-28160

main09110-28180iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN;ACR50,GSR50..RHD..GEN200601-201103

GUATEMALA SPEC

sub09111-28160

main09110-28180iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN;ACR50,GSR50..RHD..GEN200601-201103

HONDURAS SPEC

sub09111-28160

main09110-28180iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN;ACR50,GSR50..RHD..GEN200601-201103

EL SALVADOR SPEC

sub09111-28160

main09110-28180iACR50,GSR50..LHD..GL..GEN200601-201103

TAIWAN SPEC

sub09111-28160

main09110-28180iACR50..LHD..GL..GEN200812-201103

VENEZUELA SPEC

sub09111-28160

main09110-28180iACR50..LHD..GL..GEN200812-201103

TYPE A:REFER ILLUST.

sub09111-28160

main09110-28190iACR50..LHD..GL..GEN200601-200610

sub09110-28191

main09110-28191iACR50,GSR50..LHD..GL..GEN200611-200812

main09110-28191iACR50,GSR50..LHD..GL..GEN200812-201103

TYPE A:REFER ILLUST.

main09110-28200iACR50,GSR50..ARL200601-201102

sub09110-28201

main09110-28201iACR50,GSR50..ARL201103-201512

sub09110-28150

main09111-28160iACR50,GSR50..GCC,GEN201601-201906

main09111-28190iGSR50..LHD;ACR50..GCC,GEN201103-201205

TYPE B:REFER ILLUST.

sub09111-28160

main09111-28190iGSR50..LHD;ACR50..GCC,GEN201204-201512

sub09111-28160

09113HANDLE, JACK

main09113-44010iGSR50..RHD..GEN200601-201906

09120BAG, TOOL

main09120-12011iACR50,GSR50200601-201004

main09120-28090iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201004-201906

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010iGSR50..LHD;ACR50..GCC,GEN200601-201906

5153

51960HOOK ASSY, FRONT

main51960-28030iACR50,GSR50200601-200706

sub51960-28031

main51960-28031iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)200707-201802

sub51960-28050

main51960-28050iACR50,GSR50..DLX,GL201803-201906

51960AHOOK ASSY, REAR

main51960-28030iACR50,GSR50200601-200706

sub51960-28031

main51960-28031iGSR50..RHD..GEN200707-201802

sub51960-28050

main51960-28050iACR50,GSR50..DLX,GL201803-201906

64771FCOVER, SPARE WHEEL

81604REFLECTOR SET, TRIANGLE

main81604-78010

12 parts on this diagram · 1 diagram in section
