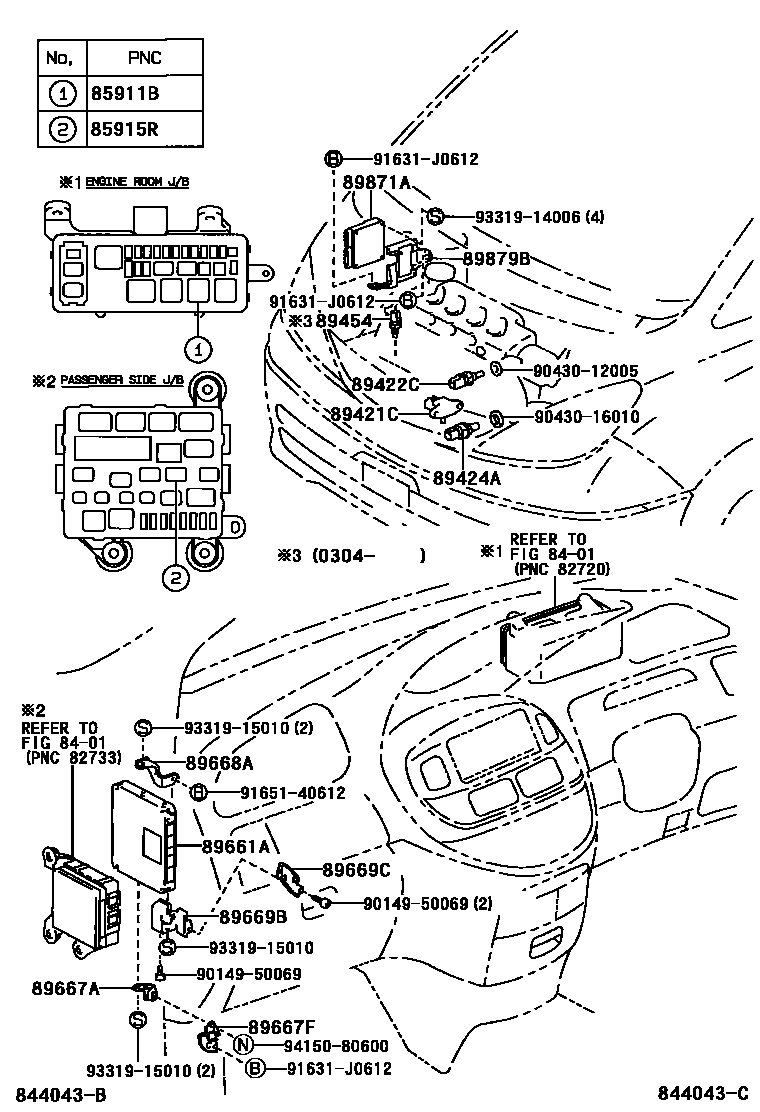

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

8401

85911BRELAY, COMPUTER (FOR DIESEL TURBO)

main90987-02009iCLR30200102-200601

85915RRELAY ASSY, CIRCUIT OPENING (FOR DIESEL)

main90987-02012iCLR30200102-200306

main90987-02027iCLR30200306-200601

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20210iCLR30200102-200601

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iCLR30200102-200601

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iCLR30200102-200601

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCLR30200304-200601

89661ACOMPUTER, ENGINE CONTROL

main89661-28850iCLR30200102-200304

main89661-28890iCLR30200304-200601

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-28060iCLR30..RHD200102-200601

main89667-28080iCLR30..LHD200102-200601

89667FBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-28070iCLR30..RHD200102-200601

main89667-28090iCLR30..LHD200102-200601

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28070iCLR30..RHD200102-200601

main89668-28090iCLR30..LHD200102-200601

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-28070iCLR30..RHD200102-200601

89669CBRACKET, ENGINE CONTROL COMPUTER, NO.4

main89669-28080iCLR30..RHD200102-200601

89871ADRIVER, INJECTOR

main89871-20030iCLR30200102-200304

main89871-26010iCLR30200304-200601

89879BBRACKET, INJECTOR DRIVER

main89879-28010iCLR30200102-200601

9014950069

main90149-50069

9043012005

main90430-12005

9043016010

main90430-16010

91631J0612

main91631-J0612

9165140612

main91651-40612

9331914006

main93319-14006

9331915010

main93319-15010

9415080600

main94150-80600

23 parts on this diagram · 2 diagrams in section
