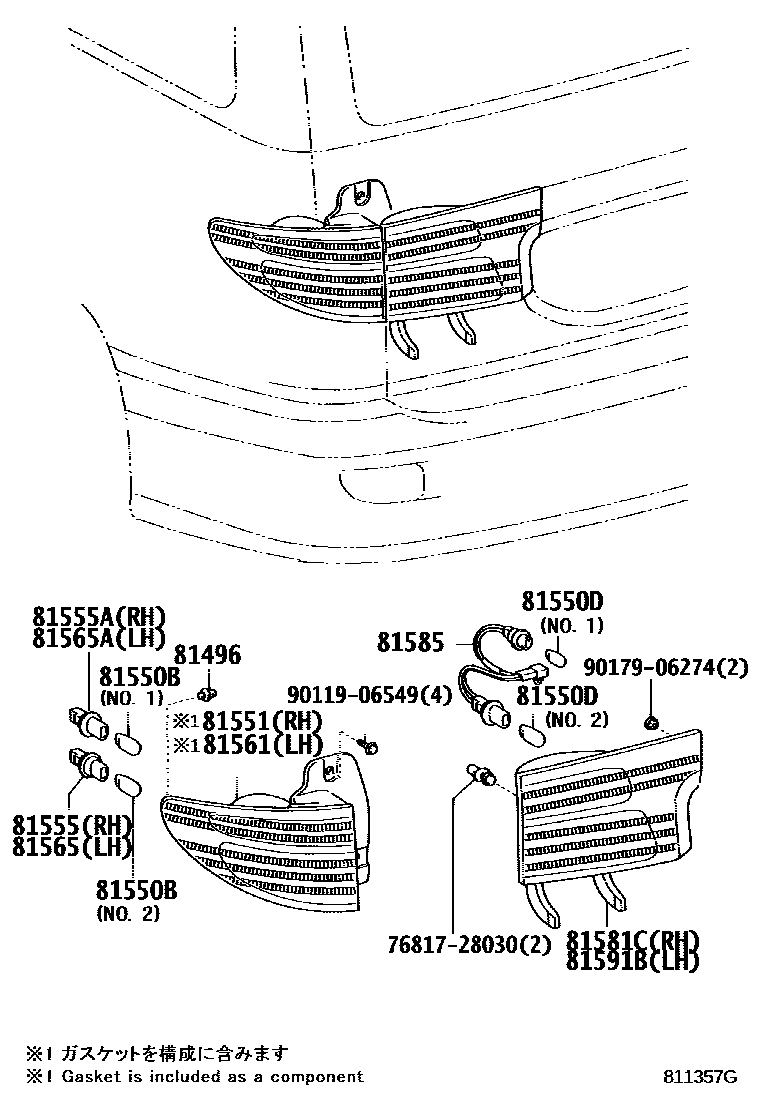

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iACR30,CLR30..08S..MTM200002-200404

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11042iACR30,CLR30200002-200304

12V 21W,NO.1

sub90981-13043

main90981-11043iACR30,CLR30200002-200304

12V 21/5W,NO.2

sub90981-11048

main90981-11048iACR30,CLR30200304-200601

12V 21/5W,NO.2

sub90981-13044

main90981-15011iACR30,CLR30200304-200601

12V 21W,AMBER,NO.1

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-11042iACR30,CLR30..EUR,GEN200002-200304

12V 21W,NO.2

sub90981-13043

main90981-11048iACR30,CLR30200304-200601

12V 21/5W,NO.2

sub90981-13044

main90981-11055iACR30,CLR30200002-200304

12V 16W,NO.1

sub90981-11059

main90981-11059iACR30,CLR30200304-200601

12V 16W,NO.1

main90981-13043iACR30,CLR30..EUR,GEN200304-200601

12V 21W,NO.3

81551LENS, REAR COMBINATION LAMP, RH

main81551-28300iACR30,CLR30200002-200108

sub81551-28301

main81551-28301iACR30,CLR30200108-200304

main81551-28380iACR30,CLR30..08S..MTM200304-200404

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-21180iACR30,CLR30200002-200404

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-21190iACR30,CLR30200002-200304

main81555-28260iACR30,CLR30..08S..MTM200304-200404

81561LENS, REAR COMBINATION LAMP, LH

main81561-28300iACR30,CLR30200002-200108

sub81561-28301

main81561-28301iACR30,CLR30200108-200304

main81561-28380iACR30,CLR30..08S..MTM200304-200404

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-21180iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200404

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-21190iACR30,CLR30200002-200304

main81555-28260iACR30,CLR30..08S..MTM200304-200404

81581CLENS AND BODY, REAR LAMP, RH

main81581-28070iACR30,CLR30..RHD..EUR200002-200304

main81581-28080iACR30..ARL;ACR30,CLR30..LHD200002-200304

main81581-28150iCLR30..LHD..08S200304-200404

main81581-28180iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200304-200404

81585SOCKET & WIRE, REAR LAMP

main81585-28070iACR30,CLR30..RHD..EUR200002-200304

RH

main81585-28080iACR30..ARL;ACR30,CLR30..LHD200002-200304

RH

main81585-28140iCLR30..LHD..08S200304-200404

RH

main81585-28170iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200304-200404

RH

main81595-28070iACR30,CLR30..LHD..(EUR,GEN)200002-200304

LH

main81595-28080iACR30..GCC;ACR30,CLR30..RHD200002-200304

LH

main81595-28140iACR30,CLR30..RHD..08S..MTM200304-200404

LH

main81595-28170iCLR30..LHD..08S200304-200404

LH

81591BLENS AND BODY, REAR LAMP, LH

main81591-28070iACR30,CLR30..LHD..(EUR,GEN)200002-200304

main81591-28080iACR30..GCC;ACR30,CLR30..RHD200002-200304

main81591-28150iACR30,CLR30..RHD..08S..MTM200304-200404

main81591-28180iCLR30..LHD..08S200304-200404

7681728030CLIP, BACK DOOR OUTSIDE GARNISH

main76817-28030

9011906549

main90119-06549

9017906274

main90179-06274

15 parts on this diagram · 2 diagrams in section
