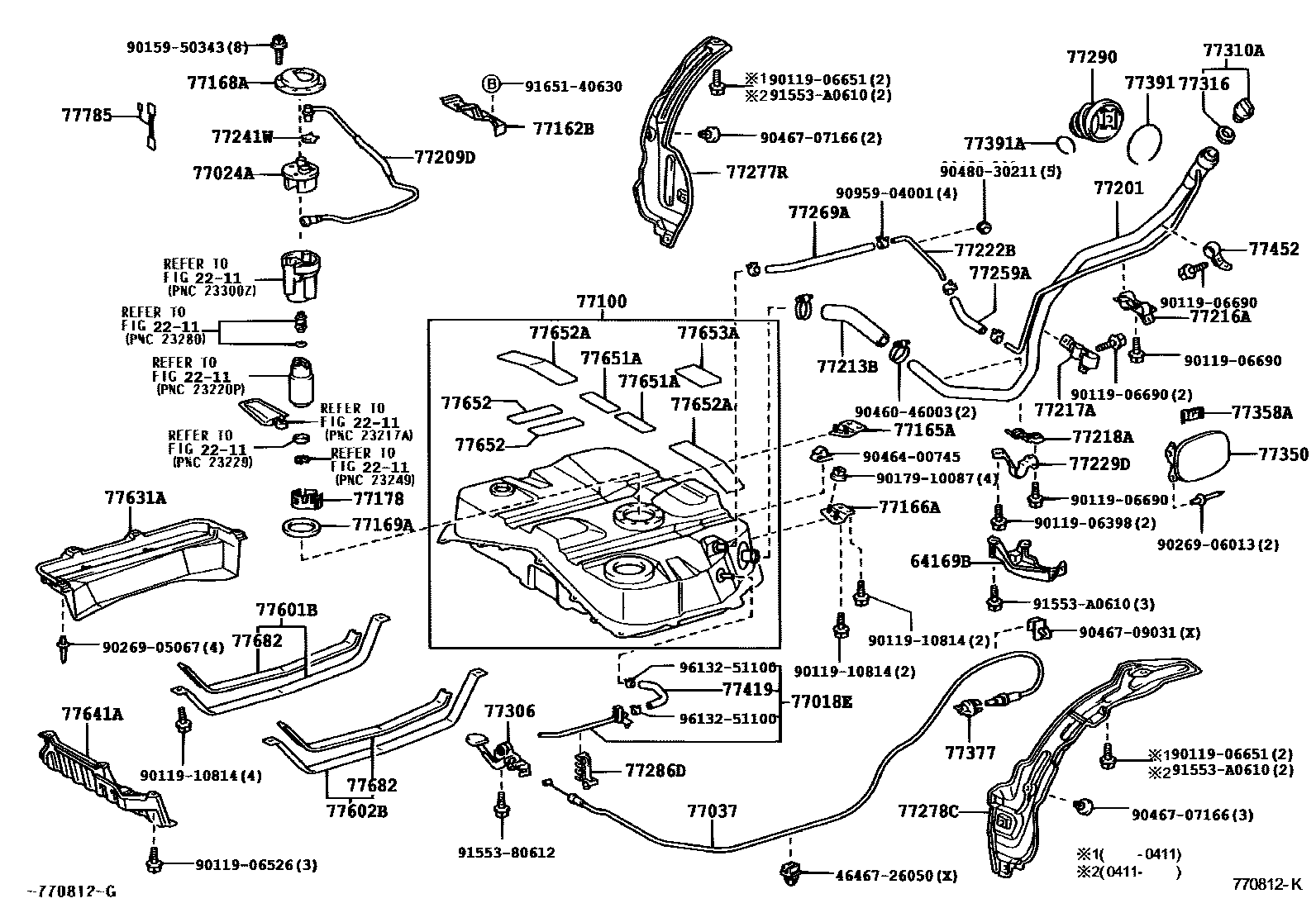

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE

2211

64169BPROTECTOR, FUEL INLET

main64169-28010iACR30,CLR30200002-200404

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-28100iACR30200002-200107

main77018-28101iACR30200107-200304

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-28010iCLR30..08S200102-200404

main77024-30070iACR30..08S..MTM200002-200404

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-28020iACR30,CLR30..RHD..08S..MTM200002-200404

main77037-28030iACR30..LHD..(07S,08S)..ATM200002-200404

main77037-28040iACR30..RHD..07S..EUR200002-200304

W(REAR DETACHABLE SEAT)

main77037-28050iACR30..LHD..07S..EUR200002-200304

W(REAR DETACHABLE SEAT)

77100TANK ASSY, FUEL

main77001-28500iACR30,CLR30..EUR200002-200107

sub77001-28501

sub77018-28101

sub77209-28021

main77001-28501iACR30,CLR30200107-200301

sub77001-28502

main77001-28502iACR30,CLR30200301-200304

sub77001-28503

main77001-28510iACR30..ARL,GCC,GEN200002-200107

sub77001-28511

sub77018-28101

sub77209-28021

77162BBRACKET, FUEL TANK REAR PROTECTOR

main77162-28010iACR30,CLR30..08S..MTM200002-200404

77165ABRACKET, FUEL TANK MOUNTING, REAR NO.2 RH

main77165-28020iACR30,CLR30200002-200304

77166ABRACKET, FUEL TANK MOUNTING, REAR NO.2 LH

main77166-28040iACR30,CLR30200002-200304

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iACR30,CLR30200002-200107

sub77168-33050

main77168-33050iACR30,CLR30200107-200404

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iACR30200002-200404

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77175-47010iACR30200002-200404

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28200iACR30..GEN200002-200010

sub77201-28210

main77201-28210iACR30..ARL,EUR200002-200304

sub77201-28211

main77201-28211iACR30..ARL,EUR,GEN200011-200404

sub77201-28300

main77201-28230iCLR30..08S200102-200404

sub77201-28310

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-28020iACR30,CLR30200002-200107

main77209-28021iACR30,CLR30200107-200404

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-28030iACR30,CLR30200002-200404

MARK=NBR+PVC

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-28070iACR30,CLR30200002-200404

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-28080iACR30,CLR30200002-200404

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-28030iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200404

77222BTUBE, FUEL TANK BREATHER, NO.2

main77222-28060iACR30,CLR30..08S..MTM200002-200404

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77229-28050iACR30,CLR30200002-200404

77241WCLIP, TUBE JOINT

main77241-33011iACR30200002-200404

main77241-60320iCLR30200102-200404

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-28060iACR30,CLR30200002-200404

L=104

77269AHOSE, FUEL TANK BREATHER

main77269-28010iACR30,CLR30200002-200404

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-28030iACR30,CLR30..08S..MTM200002-200404

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-28010iACR30,CLR30200002-200404

77286DCLAMP, FUEL TUBE, NO.2

main77286-28020iACR30,CLR30200002-200304

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-28020iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200404

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28040iACR30,CLR30..08S..MTM200002-200404

77310ACAP ASSY, FUEL TANK

main77300-28010iACR30..08S..MTM200002-200404

main77300-60010iCLR30200102-200404

main77310-48010iACR30..ARL,GCC,GEN200002-200304

77316GASKET, FUEL TANK CAP

main77316-16010iACR30,CLR30200002-200404

77350LID ASSY, FUEL FILLER OPENING

main77350-28010iACR30,CLR30..08S..MTM200002-200404

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-30060iACR30..08S..ATM;ACR30,CLR30..06S,07S200101-200404

main77358-48010iACR30200002-200101

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200404

77391RING, FUEL INLET BOX

main77391-28010iACR30,CLR30200002-200404

77391ARING, FUEL INLET BOX

main77391-28020iACR30,CLR30200002-200404

77419HOSE, FUEL, NO.3

main77419-28010iACR30200002-200404

77452SUPPORT, FUEL INLET HOSE PROTECTOR, NO.1

main77452-28010iACR30,CLR30200002-200404

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-28080iACR30,CLR30200002-200404

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-28010iACR30,CLR30200002-200404

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-28010iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200404

77641APROTECTOR, FUEL TANK, NO.1

main77641-28080iACR30,CLR30200002-200404

77651ACUSHION, FUEL TANK, NO.1

main77651-44010iACR30,CLR30200002-200304

77652CUSHION, FUEL TANK, NO.1

main77653-26040iACR30,CLR30200002-200107

77652ACUSHION, FUEL TANK, NO.2

main77652-28020iACR30,CLR30200002-200304

77653ACUSHION, FUEL TANK, NO.3

main77653-60060iACR30,CLR30200002-200304

77682SEAT, FUEL TANK BAND, LH

main77682-16010iACR30,CLR30200002-200404

77785HARNESS, FUEL PUMP

main77785-52020iACR30200002-200404

4646726050CLAMP, CABLE

main46467-26050

9011906398

main90119-06398

9011906526

main90119-06526

9011906651

main90119-06651

9011906690

main90119-06690

9011910814

main90119-10814

9015950343

main90159-50343

9017910087

main90179-10087

9026905067

main90269-05067

9026906013

main90269-06013

9046046003

main90460-46003

9046400745

main90464-00745

9046707166

main90467-07166

9046709031

main90467-09031

9048030211

main90480-30211

9095904001

main90959-04001

9155380612

main91553-80612

91553A0610

main91553-A0610

9165140630

main91651-40630

9613251100

main96132-51100
