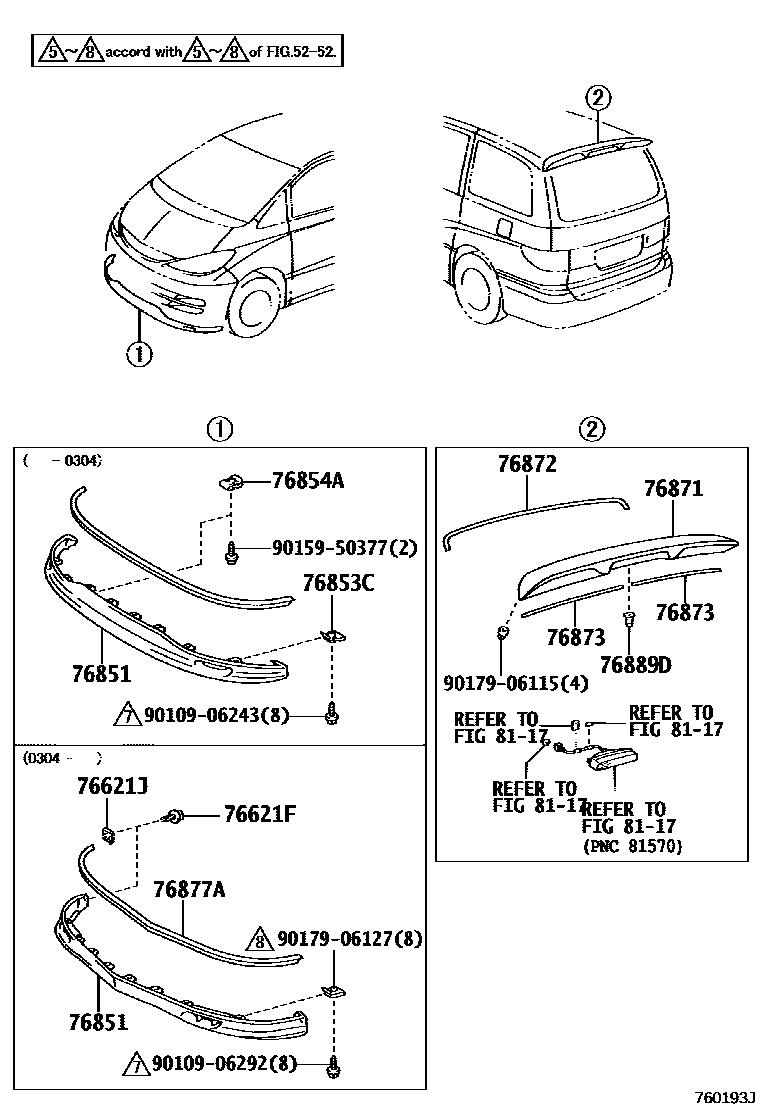

SPOILER & SIDE MUDGUARD

76621FSCREW, NO.1

main90159-50377iACR30,CLR30..EUR200304-200601

76621JNUT, NO.1

main90183-05050iACR30,CLR30..EUR200304-200601

76851COVER, FRONT SPOILER

main76851-28070iACR30,CLR30..EUR200002-200304

main76851-28090iACR30,CLR30..EUR200304-200601

76853CRETAINER, FRONT SPOILER, NO.1

main76853-28020iACR30,CLR30..EUR200002-200304

76854ARETAINER, FRONT SPOILER, NO.2

main76854-28010iACR30,CLR30..EUR200002-200304

76871SPOILER, REAR

main76871-28902iACR30,CLR30200002-200601

76872PROTECTOR, REAR SPOILER, NO.1

main76872-28090iACR30,CLR30200002-200404

76873PROTECTOR, REAR SPOILER, NO.2

main76873-28110iACR30,CLR30200002-200404

76877APROTECTOR, FRONT SPOILER

main76877-28080iACR30,CLR30..EUR200002-200304

main76877-28100iACR30,CLR30..08S..MTM200304-200404

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iACR30,CLR30200002-200404

8117

9010906243

main90109-06243

9010906292

main90109-06292

9015950377

main90159-50377

9017906115

main90179-06115

9017906127

main90179-06127

16 parts on this diagram · 1 diagram in section
