ARMREST & VISOR

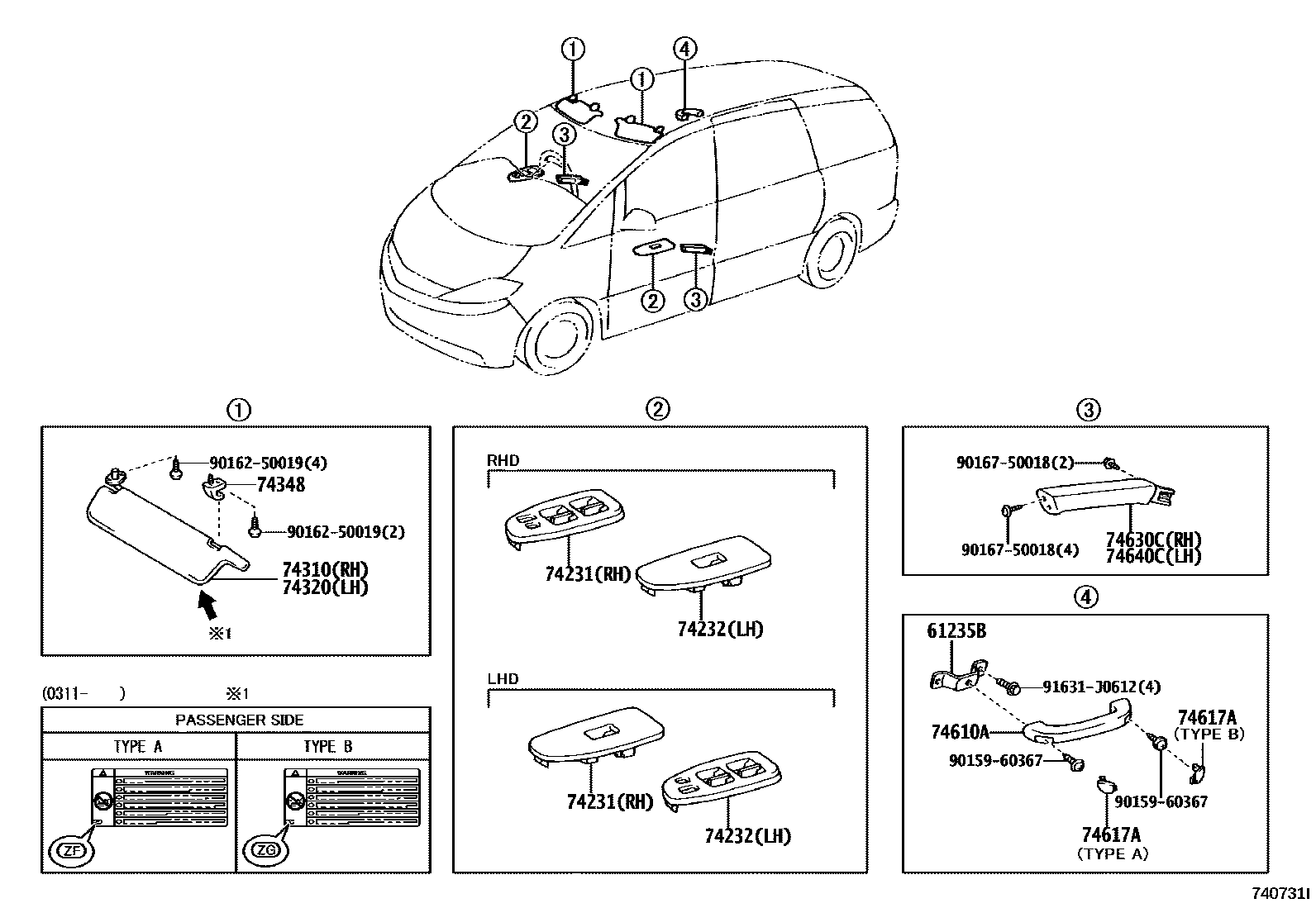

Parts diagram
61235BBRACKET, ASSIST GRIP
main61235-28030i200002-200401
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-28250-B0i200002-200304
W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR),BLUISH GRAY,TRIM11
sub74231-28260
main74231-28250-B1i200002-200304
W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR),DK. CHARCOAL,TRIM12
sub74231-28260
main74231-28250-B2i200304-200601
W(TWIN MOON ROOF),DK.GRAY,TRIM1#
sub74231-28260
main74231-28260-B0i200002-200304
W(POWER WINDOW---FRONT & REAR),BLUISH GRAY,TRIM11
sub74231-28260
main74231-28260-B1i200002-200304
W(POWER WINDOW---FRONT & REAR),DK. CHARCOAL,TRIM12
sub74231-28260
main74231-28260-B2i200304-200601
DK.GRAY,TRIM1#
sub74231-28260
main74231-28470-B0i200002-200304
W(TWIN MOON ROOF),BLUISH GRAY,TRIM11
sub74231-28480
main74231-28470-B1i200002-200304
W(TWIN MOON ROOF),DK.CHARCOAL,TRIM12
sub74231-28480
main74231-28480-B0i200002-200304
BLUISH GRAY,TRIM11
sub74231-28480
main74231-28480-B1i200002-200304
DK.CHARCOAL,TRIM12
sub74231-28480
main74231-28490-B0i200002-200304
BLUISH GRAY,TRIM11
sub74231-28490
main74231-28490-B1i200002-200304
DK.CHARCOAL,TRIM12
sub74231-28490
main74231-28490-B2i200304-200601
DK.GRAY,TRIM1#
sub74231-28490
main74231-28540i200102-200304
WOOD GRAIN & W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR)
sub74231-28550
main74231-28541i200304-200601
WOOD GRAIN & W(TWIN MOON ROOF)
sub74231-28551
main74231-28550i200102-200304
WOOD GRAIN & W(POWER WINDOW--FRONT & REAR)
sub74231-28551
main74231-28551i200304-200601
WOOD GRAIN
main74231-28580i200102-200304
WOOD GRAIN & W(TWIN MOON ROOF)
sub74231-28590
main74231-28590i200102-200304
WOOD GRAIN
main74231-28600i200102-200304
WOOD GRAIN
sub74231-28601
main74231-28601i200304-200601
WOOD GRAIN
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-28120-B0i200002-200304
W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR),BLUISH GRAY,TRIM11
sub74232-28130
main74232-28120-B1i200002-200304
W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR),DK.CHARCOAL,TRIM12
sub74232-28130
main74232-28120-B2i200304-200601
W(TWIN MOON ROOF),DK.GRAY,TRIM1#
sub74232-28130
main74232-28130-B0i200002-200304
W(POWER WINDOW---FRONT & REAR),BLUISH GRAY,TRIM11
sub74232-28130
main74232-28130-B1i200002-200304
W(POWER WINDOW---FRONT & REAR),DK.CHARCOAL,TRIM12
sub74232-28130
main74232-28130-B2i200304-200601
DK.GRAY,TRIM1#
sub74232-28130
main74232-28280-B0i200002-200304
W(TWIN MOON ROOF),BLUISH GRAY,TRIM11
sub74232-28290
main74232-28280-B1i200002-200304
W(TWIN MOON ROOF),DK.CHARCOAL,TRIM12
sub74232-28290
main74232-28290-B0i200002-200304
BLUISH GRAY,TRIM11
sub74232-28290
main74232-28290-B1i200002-200304
DK.CHARCOAL,TRIM12
sub74232-28290
main74232-28300-B0i200002-200304
BLUISH GRAY,TRIM11
sub74232-28300
main74232-28300-B1i200002-200304
DK. CHARCOAL,TRIM12
sub74232-28300
main74232-28300-B2i200304-200601
DK.GRAY,TRIM1#
sub74232-28300
main74232-28320i200102-200304
WOOD GRAIN
sub74232-28321
main74232-28321i200304-200601
WOOD GRAIN
main74232-28350i200102-200304
WOOD GRAIN & W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR)
sub74232-28360
main74232-28351i200304-200601
WOOD GRAIN & W(TWIN MOON ROOF)
sub74232-28361
main74232-28360i200102-200304
WOOD GRAIN & W(POWER WINDOW--FRONT & REAR)
sub74232-28361
main74232-28361i200304-200601
WOOD GRAIN
main74232-28370i200102-200304
WOOD GRAIN & W(TWIN MOON ROOF)
sub74232-28380
main74232-28380i200102-200304
WOOD GRAIN
74310VISOR ASSY, RH
main74310-28A20-B0i200304-200601
LT.GRAY,TRIM1#
main74310-28A60-B0i200311-200601
W(VANITY LAMP),LT.GRAY,TRIM1#,COWL WIRE,TYPE A
main74310-28A60-B0i200311-200401
W(VANITY LAMP),LT.GRAY,TRIM1#,TYPE A
main74310-28A70-B0i200311-200601
W(VANITY LAMP),LT.GRAY,TRIM1#,TYPE B
main74310-28A80-B0i200311-200601
W(VANITY LAMP),LT.GRAY,TRIM1#
main74310-28A80-B0i200311-200401
LT.GRAY,TRIM1#
main74310-2J100-B2i200002-200304
ME. CHARCOAL,TRIM12
sub74310-2J140
main74310-2J100-B3i200002-200304
LT. BL. GRAY,TRIM11
sub74310-2J140
main74310-2J110-B4i200002-200102
LT. BLUISH GRAY,TRIM11
sub74310-2J110
main74310-2J110-B5i200002-200102
MD.CHARCOAL,TRIM12
sub74310-2J110
main74310-2J120-B2i200002-200304
W(VANITY LAMP),ME. CHARCOAL,TRIM12
sub74310-2J120
main74310-2J120-B3i200002-200304
W(VANITY LAMP),LT. BL. GRAY,TRIM11
sub74310-2J120
main74310-2J120-B4i200304-200601
LT. GRAY,TRIM1#
sub74310-2J120
main74310-2J130-B2i200002-200304
W(VANITY LAMP),LT. BLUISH GRAY,TRIM11
sub74310-2J130
main74310-2J130-B3i200002-200304
W(VANITY LAMP),MD.CHARCOAL,TRIM12
sub74310-2J130
main74310-2J130-B4i200304-200601
LT.GRAY,TRIM1#
sub74310-2J130
main74310-2J130-B4i200307-200601
PHILIPPINES SPEC,LT.GRAY,TRIM1#
sub74310-2J130
main74310-2J140-B2i200002-200105
LT. BLUISH GRAY,TRIM11
sub74310-2J140
main74310-2J140-B3i200002-200105
MD.CHARCOAL,TRIM12
sub74310-2J140
main74310-2J160-B2i200002-200102
ME. CHARCOAL,TRIM12
main74310-2J160-B3i200002-200102
LT. BL. GRAY,TRIM11
main74310-2J170-B2i200002-200304
LT. BLUISH GRAY,TRIM11
sub74310-2J110
main74310-2J170-B3i200002-200304
MD.CHARCOAL,TRIM12
sub74310-2J110
main74310-2J180-B0i200105-200304
ME. CHARCOAL,TRIM12
main74310-2J180-B1i200105-200304
LT. BL. GRAY,TRIM11
main74310-2J180-B2i200304-200601
LT. GRAY,TRIM1#
74320VISOR ASSY, LH
main74320-28530-B4i200002-200304
LT. BLUISH GRAY,TRIM11
sub74320-28590
main74320-28530-B5i200002-200304
MD.CHARCOAL,TRIM12
sub74320-28590
main74320-28550-B2i200002-200304
W(VANITY LAMP),LT. BLUISH GRAY,TRIM11
main74320-28550-B3i200002-200304
W(VANITY LAMP),MD.CHARCOAL,TRIM12
main74320-28550-B4i200304-200601
LT. GRAY,TRIM1#
main74320-28560-B2i200002-200102
LT. BLUISH GRAY,TRIM11
main74320-28560-B3i200002-200102
MD.CHARCOAL,TRIM12
main74320-28570-B2i200002-200304
W(VANITY LAMP),LT. BLUISH GRAY,TRIM11
sub74320-28570
main74320-28570-B3i200002-200304
W(VANITY LAMP),MD.CHARCOAL,TRIM12
sub74320-28570
main74320-28570-B4i200304-200601
LT.GRAY,TRIM1#
sub74320-28570
main74320-28570-B4i200307-200601
PHILIPPINES SPEC,LT.GRAY,TRIM1#
sub74320-28570
main74320-28580-B2i200002-200304
LT. BLUISH GRAY,TRIM11
main74320-28580-B3i200002-200304
MD.CHARCOAL,TRIM12
main74320-28590-B2i200002-200102
LT. BLUISH GRAY,TRIM11
main74320-28590-B3i200002-200102
MD.CHARCOAL,TRIM12
main74320-28600-B0i200105-200304
LT. BLUISH GRAY,TRIM11
main74320-28600-B1i200105-200304
MD.CHARCOAL,TRIM12
main74320-28600-B2i200304-200601
LT.GRAY,TRIM1#
main74320-28680-B0i200304-200601
LT.GRAY,TRIM1#
main74320-28700-B0i200311-200601
LT.GRAY,TRIM1#
main74320-28710-B0i200311-200601
W(VANITY LAMP),LT.GRAY,TRIM1#
74348HOLDER, VISOR
main74348-26020-B0i200002-200304
LT.BLUISH GRAY,TRIM11
sub74348-26020
main74348-26020-B3i200304-200601
LT.GRAY,TRIM1#
sub74348-26020
main74348-26020-B5i200002-200304
MD.CHARCOAL,TRIM12
sub74348-26020
74610AGRIP SUB-ASSY, ASSIST
main74603-44020-B1i200002-200304
LT.BLUISH GRAY,TRIM11
sub74603-44020
main74603-44020-B2i200002-200304
MD.CHARCOAL,TRIM12
sub74603-44020
main74603-44020-B6i200304-200601
LT.GRAY,TRIM1#
sub74603-44020
74617APLUG, ASSIST GRIP
main74617-44010-B1i200002-200304
TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11
sub74617-44010
main74617-44010-B2i200002-200304
TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12
sub74617-44010
main74617-44010-B5i200304-200601
TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1#
sub74617-44010
main74617-44020-B1i200002-200304
TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11
sub74617-44020
main74617-44020-B2i200002-200304
TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12
sub74617-44020
main74617-44020-B5i200304-200601
TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1#
sub74617-44020
74630CGRIP ASSY, DOOR ASSIST, RH
main74630-28010-B0i200002-200304
BLUISH GRAY,TRIM11
sub74630-28010
main74630-28010-B1i200002-200304
DK.CHARCOAL,TRIM12
sub74630-28010
main74630-28010-B2i200304-200601
DK.GRAY,TRIM1#
sub74630-28010
main74630-28010-B2i200312-200601
DK.GRAY,TRIM15
sub74630-28010
main74630-28010-C0i200102-200304
W(LEATHER SEAT),BLACK,TRIM11,12
sub74630-28010
main74630-28010-C0i200102-200304
BLACK,TRIM11,12
sub74630-28010
main74630-28010-C0i200312-200601
BLACK,TRIM15
sub74630-28010
74640CGRIP ASSY, DOOR ASSIST, LH
main74640-28010-B0i200002-200304
BLUISH GRAY,TRIM11
sub74640-28010
main74640-28010-B1i200002-200304
DK.CHARCOAL,TRIM12
sub74640-28010
main74640-28010-B2i200304-200601
DK.GRAY,TRIM1#
sub74640-28010
main74640-28010-B2i200312-200601
DK.GRAY,TRIM15
sub74640-28010
main74640-28010-C0i200102-200304
BLACK,TRIM11,12
sub74640-28010
main74640-28010-C0i200102-200304
W(LEATHER SEAT),BLACK,TRIM11,12
sub74640-28010
main74640-28010-C0i200312-200601
BLACK,TRIM15
sub74640-28010
9015960367
main90159-60367
9016250019
main90162-50019
9016750018
main90167-50018
91631J0612
main91631-J0612

14 parts on this diagram · 2 diagrams in section
