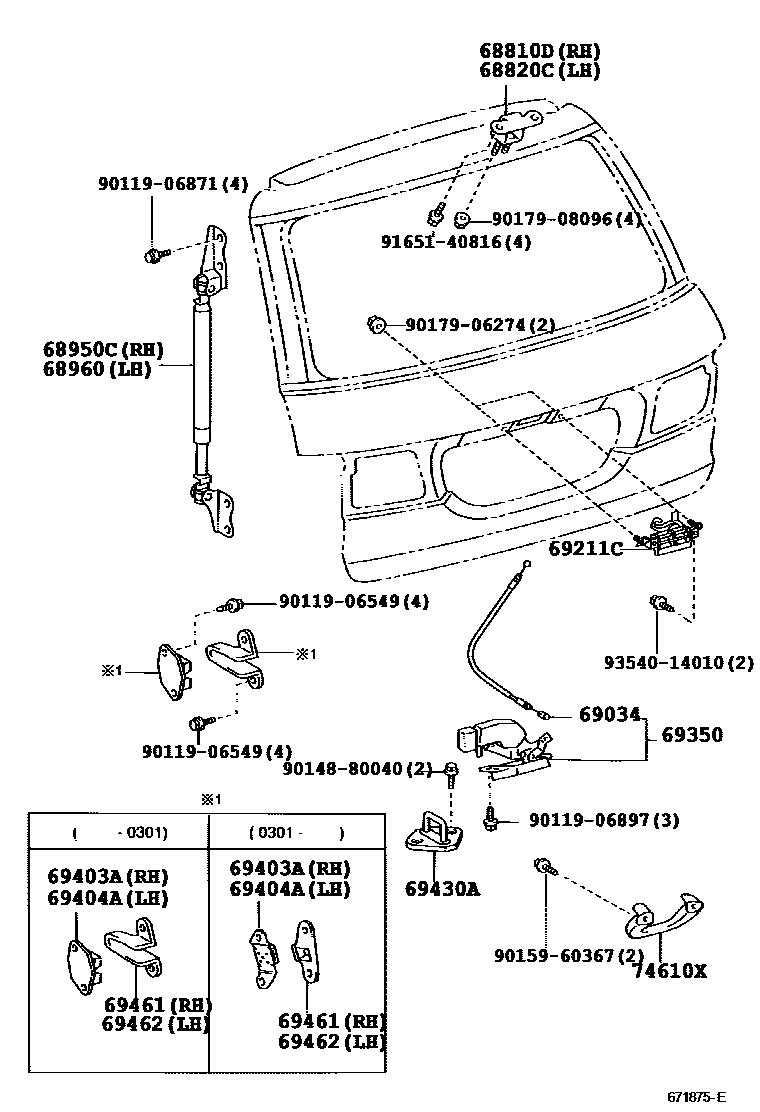

BACK DOOR LOCK & HINGE

68810DHINGE ASSY, BACK DOOR, RH

main68810-28040iACR30,CLR30200002-200601

sub68810-28041

68820CHINGE ASSY, BACK DOOR, LH

main68810-28040iACR30,CLR30200002-200601

sub68810-28041

68950CSTAY ASSY, BACK DOOR, RH

main68950-28220iACR30,CLR30..ARL,EUR,GCC200002-200404

main68950-28230iACR30..DX..ARL;ACR30,CLR30..(06S,07S)..(ARL,EUR,GEN)200002-200405

COLD SPEC

68960STAY ASSY, BACK DOOR, LH

main68960-28220iACR30,CLR30..ARL,EUR,GCC200002-200404

main68960-28230iACR30,CLR30..08S..MTM200002-200405

COLD SPEC

69034CABLE SUB-ASSY, BACK DOOR LOCK

main69034-28110iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

69211CHANDLE, BACK DOOR OUTSIDE

main69023-28030iACR30,CLR30200002-200304

69350LOCK ASSY, BACK DOOR

main69350-28110iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

main69350-28120iCLR30..RHD200002-200304

ENGLAND SPEC

main69350-28120iCLR30..RHD200102-200304

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-28020iACR30,CLR30200301-200304

main69403-28030iACR30,CLR30200002-200301

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-28010iACR30,CLR30200301-200304

main69404-28010iACR30,CLR30200002-200301

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-48010iACR30,CLR30200002-200304

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-28010iACR30,CLR30200301-200304

main69401-38010iACR30,CLR30200002-200301

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-28010iACR30,CLR30200301-200304

main69402-38010iACR30,CLR30200002-200301

74610XGRIP, ASSIST

main74611-20030-B2iACR30,CLR30200002-200304

LT.BLUISH GRAY,TRIM11

sub74611-20030

sub74610-12090

main74611-20030-B6iACR30,CLR30200002-200304

MD.CHARCOAL,TRIM12

sub74611-20030

sub74610-12090

main74611-20030-P1iACR30,CLR30200304-200601

MD.GRAY,TRIM1#

sub74611-20030

sub74610-12090

9011906549

main90119-06549

9011906871

main90119-06871

9011906897

main90119-06897

9014880040

main90148-80040

9015960367

main90159-60367

9017906274

main90179-06274

9017908096

main90179-08096

9165140816

main91651-40816

9354014010

main93540-14010

22 parts on this diagram · 1 diagram in section
