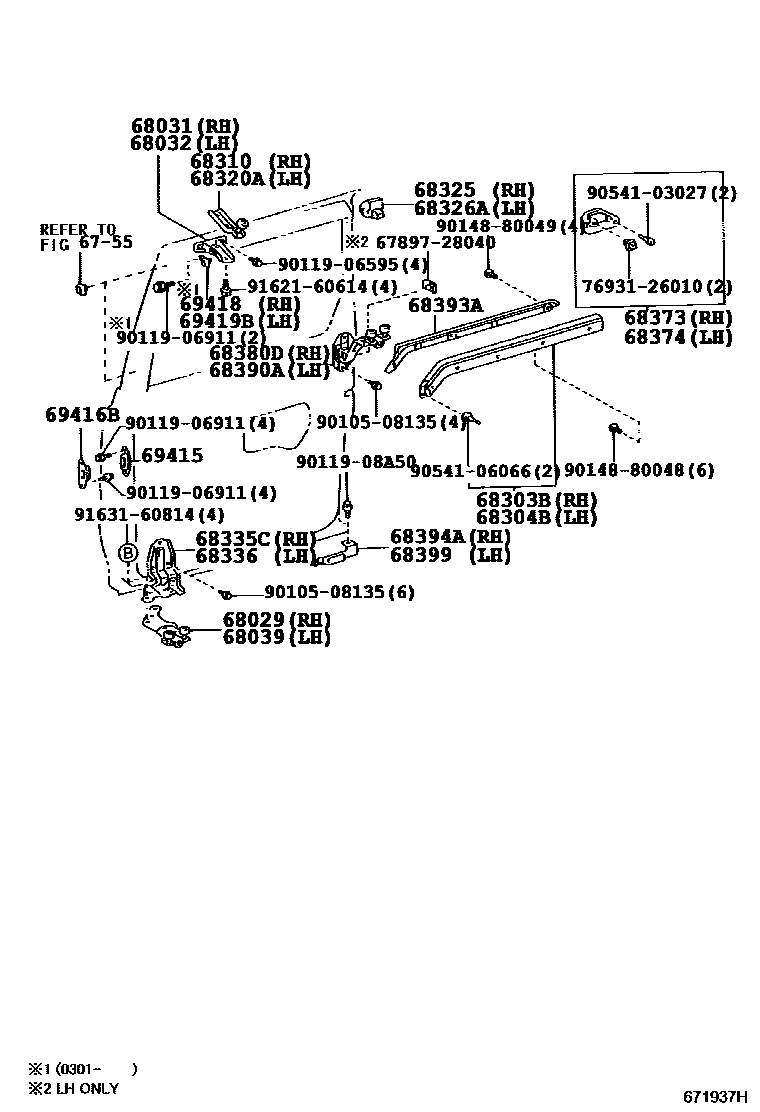

SLIDE ROLLER & RAIL

0001 1 0002 1

6755

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-28030iACR30,CLR30¥5,300200002-200304

main68029-28050iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)¥5,100200304

W(AUTO SLIDE DOOR & EASY CLOSER)

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68031-28010iACR30,CLR30¥1,470200002-200301

sub68031-28011¥1,470

sub68301-28021¥1,450

main68031-28011iACR30,CLR30¥1,470200301-200304

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68032-28010iACR30,CLR30¥1,470200002-200301

sub68032-28011¥1,470

sub68302-28011¥1,450

main68032-28011iACR30,CLR30¥1,470200301-200304

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-28040iACR30,CLR30¥5,300200002-200304

main68039-28050iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)¥5,300200304

W(AUTO SLIDE DOOR & EASY CLOSER)

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-28050iACR30,CLR30¥12,400200002-200304

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-28080iACR30,CLR30¥12,400200002-200304

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68301-28020iACR30,CLR30¥1,450200002-200301

sub68301-28021¥1,450

sub68031-28011¥1,470

main68301-28021iACR30,CLR30¥1,450200301-200304

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68302-28010iACR30,CLR30¥1,450200002-200301

sub68302-28011¥1,450

sub68032-28011¥1,470

main68302-28011iACR30,CLR30¥1,450200301-200304

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-28010iACR30,CLR30¥610200002-200308

sub68325-28011¥610

main68325-28011iACR30,CLR30¥610200308

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-28010iACR30,CLR30¥610200002-200308

sub68326-28011¥610

main68326-28011iACR30,CLR30¥610200308

68335CARM, SLIDE DOOR LOWER ROLLER, RH

main68335-28020iACR30,CLR30¥6,000200002-200304

main68335-28040iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)¥6,000200304

W(AUTO SLIDE DOOR & EASY CLOSER)

68336ARM, SLIDE DOOR LOWER ROLLER, LH

main68336-28040iACR30,CLR30¥4,950200002-200304

main68336-28050iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)¥4,930200304

W(AUTO SLIDE DOOR & EASY CLOSER)

68373MOULDING, SLIDE RAIL END, RH

main68373-28040iACR30,CLR30¥760200002-200304

68374MOULDING, SLIDE RAIL END, LH

main68374-28100iACR30,CLR30¥760200002-200304

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-28010iACR30,CLR30¥7,400200002-200304

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-28020iACR30,CLR30¥7,400200002-200304

68393APROTECTOR, SLIDE DOOR CENTER RAIL

main61057-28010iACR30,CLR30¥5,300200002-200304

RH

main61067-28020iACR30,CLR30¥5,300200002-200304

LH

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-28010iACR30,CLR30¥610200002-200304

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-28020iACR30,CLR30¥610200002-200304

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69405-28010iACR30,CLR30¥370200109-200304

main69415-26010iACR30,CLR30¥780200002-200109

main69415-28030iACR30,CLR30¥1,070200304

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69416-26010iACR30,CLR30¥1,090200002-200304

main69416-28050iACR30,CLR30¥1,070200304-200510

sub69416-28110¥1,070

sub69457-28030¥130

main69416-28110iACR30,CLR30¥1,070200510

69418STOP, SLIDE DOOR OPEN

main69418-28050iACR30,CLR30¥700200301-200304

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-28030iACR30,CLR30¥700200301-200304

6789728040SPACER, FRONT DOOR WEATHERSTRIP, RH

main67897-28040¥370

7693126010RETAINER, SIDE MUDGUARD, NO.3

main76931-26010¥70

9010508135

main90105-08135¥140

9011906595

main90119-06595¥220

9011906911

main90119-06911¥80

9011908A50

main90119-08A50¥130

9014880048

main90148-80048¥440

9014880049

main90148-80049¥60

9054103027

main90541-03027¥150

9054106066

main90541-06066¥170

9162160614

main91621-60614¥120

9163160814

main91631-60814¥80

36 parts on this diagram · 2 diagrams in section
