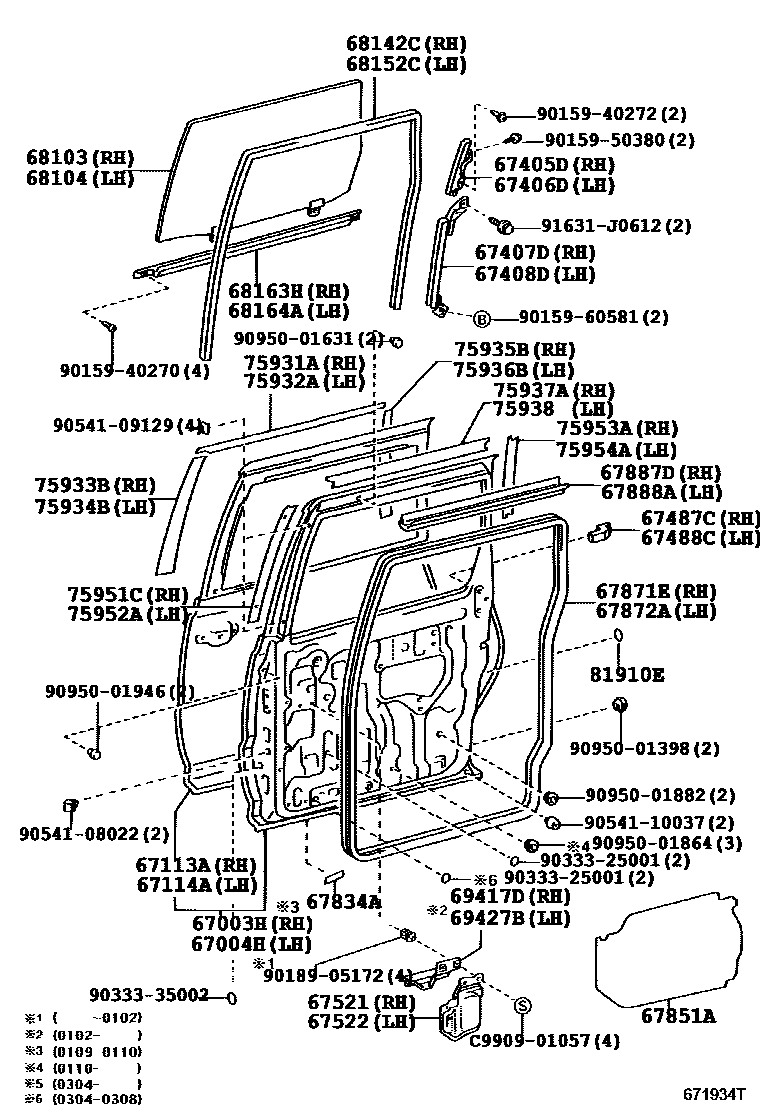

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1W(POWER WINDOW)

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-28280iACR30,CLR30200002-200109

sub67003-28282

sub90950-01864

main67003-28281iACR30,CLR30200109-200110

sub67003-28282

sub90950-01864

main67003-28282iACR30,CLR30200110-200304

sub67003-28283

sub90333-35002

main67003-28283iACR30,CLR30200304

sub67003-28293

sub90333-20001

main67003-28293iACR30,CLR30..LHD..EUR200304

W(EASY CLOSER)

main67003-28381iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-28272iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

main67004-28280iACR30,CLR30200002-200109

sub67004-28282

sub90950-01864

main67004-28281iACR30,CLR30200109-200110

sub67004-28282

sub90950-01864

main67004-28282iACR30,CLR30200110-200304

sub67004-28292

sub90333-20001

main67004-28292iACR30,CLR30..LHD..EUR200304

W(EASY CLOSER)

67113APANEL, SLIDE DOOR, OUTER RH

main67113-28080iACR30,CLR30200002-200601

67114APANEL, SLIDE DOOR, OUTER LH

main67114-28070iACR30,CLR30200002-200601

67405DGUIDE SUB-ASSY, SLIDE DOOR WINDOW, FRONT RH

main67405-28010iACR30,CLR30200002-200304

67406DGUIDE SUB-ASSY, SLIDE DOOR WINDOW, FRONT LH

main67406-28010iACR30,CLR30200002-200304

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-28010iACR30,CLR30200002-200304

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-28040iACR30,CLR30200002-200304

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-28010iACR30,CLR30200002-200304

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67487-28010iACR30,CLR30200002-200304

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67521-28020iACR30,CLR30200002-200304

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67522-28010iACR30,CLR30200002-200304

67834ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67833-28010iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200109-200110

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-28040iACR30200002-200304

main67851-28060iACR30,CLR30..RHD..EUR200003-200304

W(DOUBLE-LOCK),RH

main67852-28090iACR30,CLR30..RHD..EUR200003-200304

W(DOUBLE-LOCK),LH

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-28030-B0iACR30,CLR30200002-200304

LT. BLUISH GRAY,TRIM11

sub67871-28030

main67871-28030-B1iACR30,CLR30200002-200304

MD.CHARCOAL,TRIM12

sub67871-28030

main67871-28030-B2iACR30,CLR30200304-200601

MD.GRAY,TRIM1#

sub67871-28030

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67872-28070-B0iACR30,CLR30200002-200304

LT. BLUISH GRAY,TRIM11

sub67872-28070

main67872-28070-B1iACR30,CLR30200002-200304

MD.CHARCOAL,TRIM12

sub67872-28070

main67872-28070-B2iACR30,CLR30200304-200601

MD.GRAY,TRIM1#

sub67872-28070

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-28050iACR30,CLR30200002-200411

sub67887-28070

main67887-28070iACR30,CLR30200411-200601

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-28060iACR30,CLR30200002-200411

sub67888-28080

main67888-28080iACR30,CLR30200411-200601

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-28110iACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)200002-200301

*TEM,T=4.0,GRAY

sub68103-28111

main68103-28111iACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)200301-200304

*TEM,T=4.0,GRAY

main68103-28120iACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX200002-200301

*TEM,T=4.0,GREEN

sub68103-28121

main68103-28121iACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX200301-200304

*TEM,T=4.0,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-28140iACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)200002-200301

*TEM,T=4.0,GRAY

sub68104-28141

main68104-28141iACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)200301-200304

*TEM,T=4.0,GRAY

main68104-28150iACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX200002-200301

*TEM,T=4.0,GREEN

sub68104-28151

main68104-28151iACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX200301-200304

*TEM,T=4.0,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-28060iACR30,CLR30200002-200304

68152CRUN, REAR DOOR GLASS, LH

main68152-28030iACR30,CLR30200002-200304

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-28020iACR30,CLR30200002-200312

sub68163-28021

main68163-28021iACR30,CLR30200312

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-28020iACR30,CLR30200002-200312

sub68164-28021

main68164-28021iACR30,CLR30200312

69417DCOVER, SLIDE DOOR OPEN STOP, RH

main69417-28030iACR30,CLR30200102-200304

69427BCOVER, SLIDE DOOR OPEN STOP, LH

main69427-28010iACR30,CLR30200102-200304

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-28010iACR30,CLR30200002-200304

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-28010iACR30,CLR30200002-200304

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-28010iACR30,CLR30200002-200304

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-28010iACR30,CLR30200002-200304

75935BTAPE, BLACK OUT, OUTER REAR RH

main75935-28010iACR30,CLR30200002-200304

75936BTAPE, BLACK OUT, OUTER REAR LH

main75936-28010iACR30,CLR30200002-200304

75937ATAPE, BLACK OUT, INNER UPPER RH

main75937-28010iACR30,CLR30200002-200304

75938TAPE, BLACK OUT, INNER UPPER LH

main75938-28010iACR30,CLR30200002-200304

75951CTAPE, BLACK OUT, INNER FRONT RH

main75951-28020iACR30,CLR30200002-200304

75952ATAPE, BLACK OUT, INNER FRONT LH

main75952-28020iACR30,CLR30200002-200304

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-28020iACR30,CLR30200002-200304

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-28010iACR30,CLR30200002-200304

81910EREFLECTOR ASSY, REFLEX

main81910-21030iACR30,CLR30200002-200304

9015940270

main90159-40270

9015940272

main90159-40272

9015950380

main90159-50380

9015960581

main90159-60581

9018905172

main90189-05172

9033325001

main90333-25001

9033335002

main90333-35002

9054108022

main90541-08022

9054109129

main90541-09129

9054110037

main90541-10037

9095001398

main90950-01398

9095001631

main90950-01631

9095001864

main90950-01864

9095001882

main90950-01882

9095001946

main90950-01946

91631J0612

main91631-J0612

C990901057PIN, W/HEAD

mainC9909-01057
