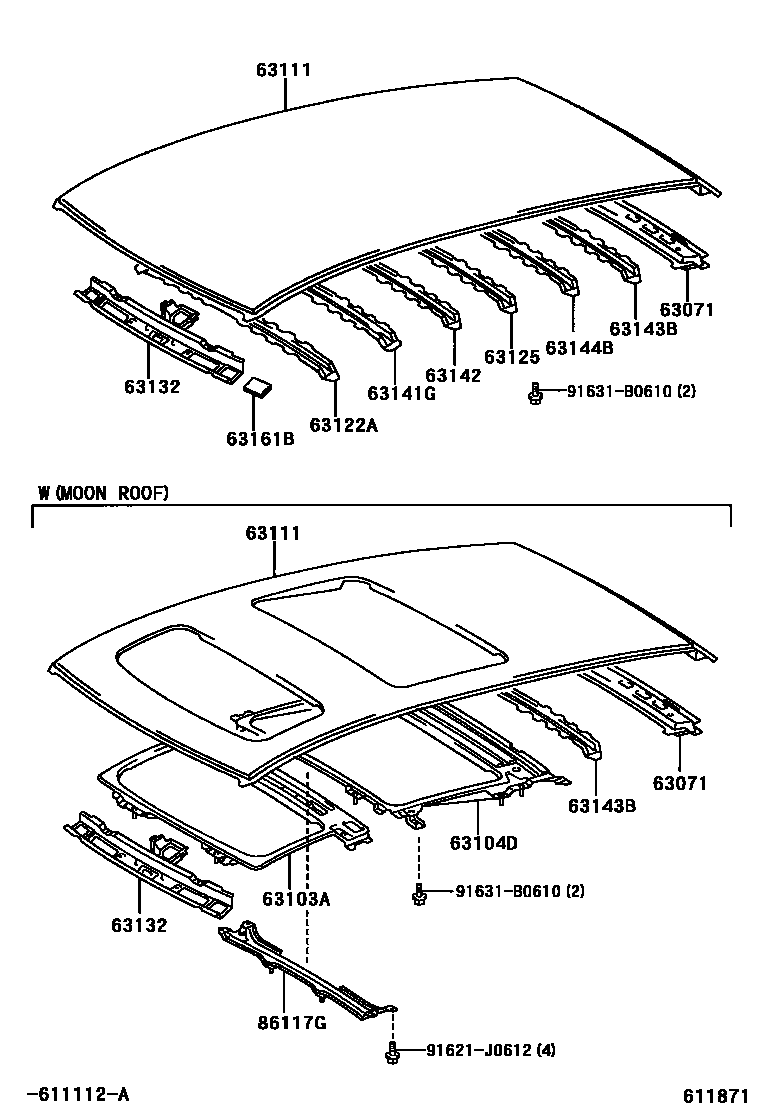

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28020iACR30,CLR30200002-200304

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-28030iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200601

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-28050iACR30,CLR30200002-200601

63111PANEL, ROOF

main63111-28170iACR30,CLR30200002-200304

main63111-28190iACR30,CLR30200002-200304

W(ROOF RAIL)

main63111-28210iACR30,CLR30200002-200304

W(MOON ROOF)

main63111-28220iACR30,CLR30200002-200304

W(MOON ROOF & ROOF RAIL)

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-28060iACR30,CLR30200002-200304

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-28050iACR30,CLR30200002-200304

63132PANEL, WINDSHIELD HEADER, INNER

main63102-28010iACR30,CLR30200002-200304

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-28110iACR30,CLR30200002-200304

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28060iACR30,CLR30200002-200304

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28050iACR30,CLR30200002-200304

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-28050iACR30,CLR30200002-200304

63161BPLATE, ROOF HEADER PANEL, NO.1

main61815-28010iACR30,CLR30200112-200304

main61815-32020iACR30,CLR30200002-200112

86117GBRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-28061iACR30,CLR30..08S..MTM200304-200404

91621J0612

main91621-J0612

91631B0610

main91631-B0610

15 parts on this diagram · 3 diagrams in section
