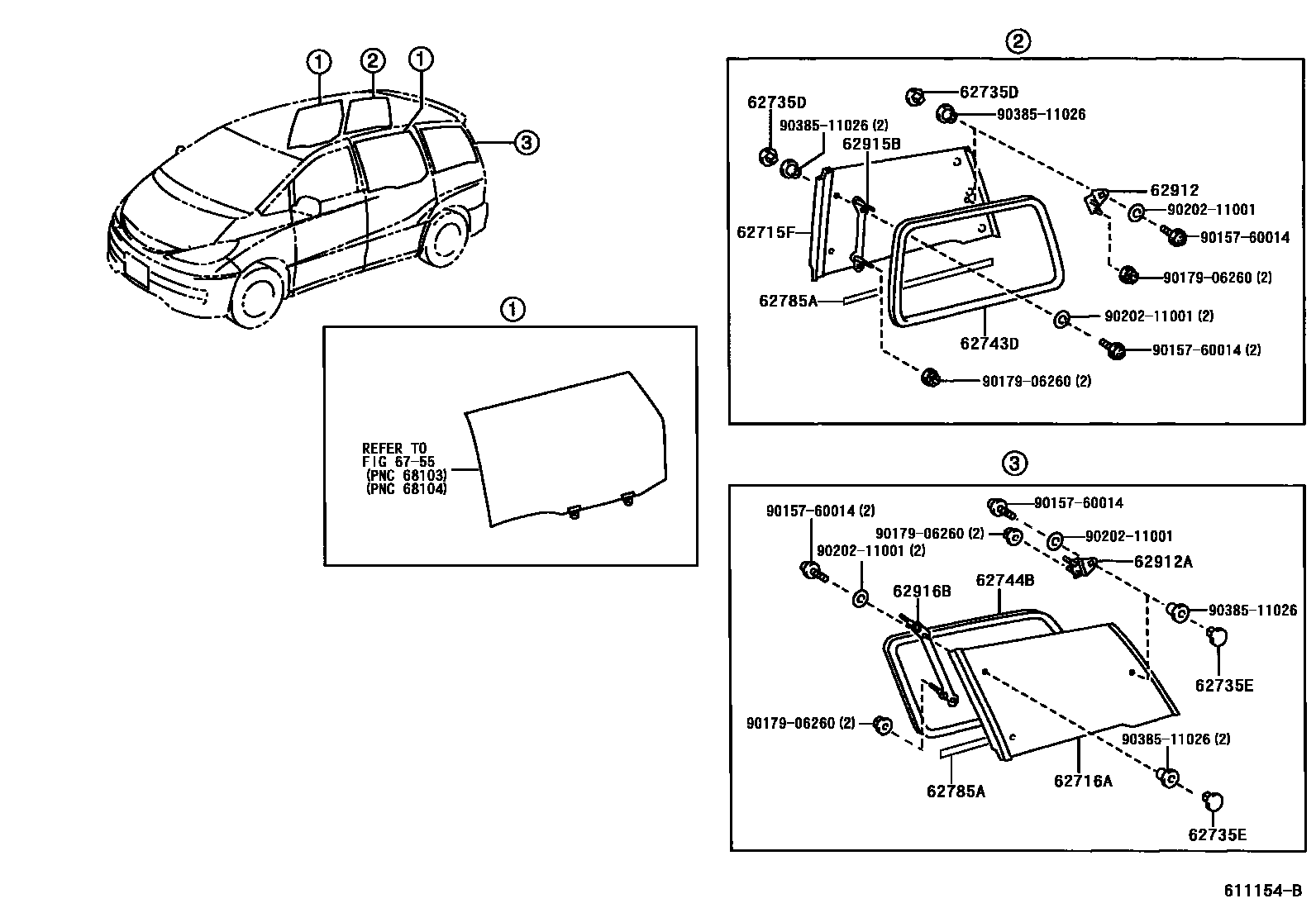

SIDE WINDOW

62715FGLASS, SIDE REAR WINDOW, RH

main62715-28320iACR30..(07S,08S)..DX200002-200006

*TEM,T=3.5,GREEN

sub62715-28321

main62715-28321iACR30..(07S,08S)..DX200006-200102

*TEM,T=3.5,GREEN

main62715-28330iACR30..GL;ACR30..EUR200002-200006

*TEM,T=3.5,GRAY

sub62715-28331

main62715-28331iACR30..GL;ACR30..EUR200006-200102

*TEM,T=3.5,GRAY

sub62715-28332

main62715-28430iACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX200102-200301

*TEM,T=3.5,GREEN

sub62715-28431

main62715-28431iACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX200301-200304

*TEM,T=3.5,GREEN

main62715-28440iACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)200102-200301

*TEM,T=3.5,GRAY

sub62715-28441

main62715-28441iACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)200301-200304

*TEM,T=3.5,GRAY

62716AGLASS, SIDE REAR WINDOW, LH

main62716-28510iACR30..(07S,08S)..DX200002-200006

*TEM,T=3.5,GREEN

sub62716-28511

main62716-28511iACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX200006-200301

*TEM,T=3.5,GREEN

sub62716-28512

main62716-28512iACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX200301-200304

*TEM,T=3.5,GREEN

main62716-28520iACR30..GL;ACR30..EUR200002-200006

*TEM,T=3.5,GRAY

sub62716-28521

main62716-28521iACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)200006-200301

*TEM,T=3.5,GRAY

sub62716-28522

main62716-28522iACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)200301-200304

*TEM,T=3.5,GRAY

62735DRETAINER, SIDE REAR WINDOW HINGE, RH

main62735-28020iACR30,CLR30200002-200304

62735ERETAINER, SIDE REAR WINDOW HINGE, LH

main62735-28020iACR30,CLR30200002-200304

62743DWEATHERSTRIP, SIDE REAR WINDOW, RH

main62743-28040iACR30,CLR30200002-200305

sub62743-28041

main62743-28041iACR30,CLR30200306-200312

sub62743-28042

main62743-28042iACR30,CLR30200312

62744BWEATHERSTRIP, SIDE REAR WINDOW, LH

main62743-28040iACR30,CLR30200002-200306

sub62743-28041

main62744-28040iACR30,CLR30200306-200312

sub62744-28041

main62744-28041iACR30,CLR30200312

62785ASPACER, QUARTER WINDOW GLASS

main62785-28010iACR30,CLR30200006-200304

62912BASE, SIDE WINDOW LOCK HOOK, RH

main62912-28020iACR30,CLR30200002-200304

62912ABASE, SIDE WINDOW LOCK HOOK, LH

main62912-28020iACR30,CLR30200002-200304

62915BBASE, SIDE WINDOW LOCK, RH

main62915-28020iACR30,CLR30200002-200304

62916BBASE, SIDE WINDOW LOCK, LH

main62916-28010iACR30,CLR30200002-200304

6755

9015760014

main90157-60014

9017906260

main90179-06260

9020211001

main90202-11001

9038511026

main90385-11026

16 parts on this diagram · 1 diagram in section
