FLOOR MAT & SILENCER PAD

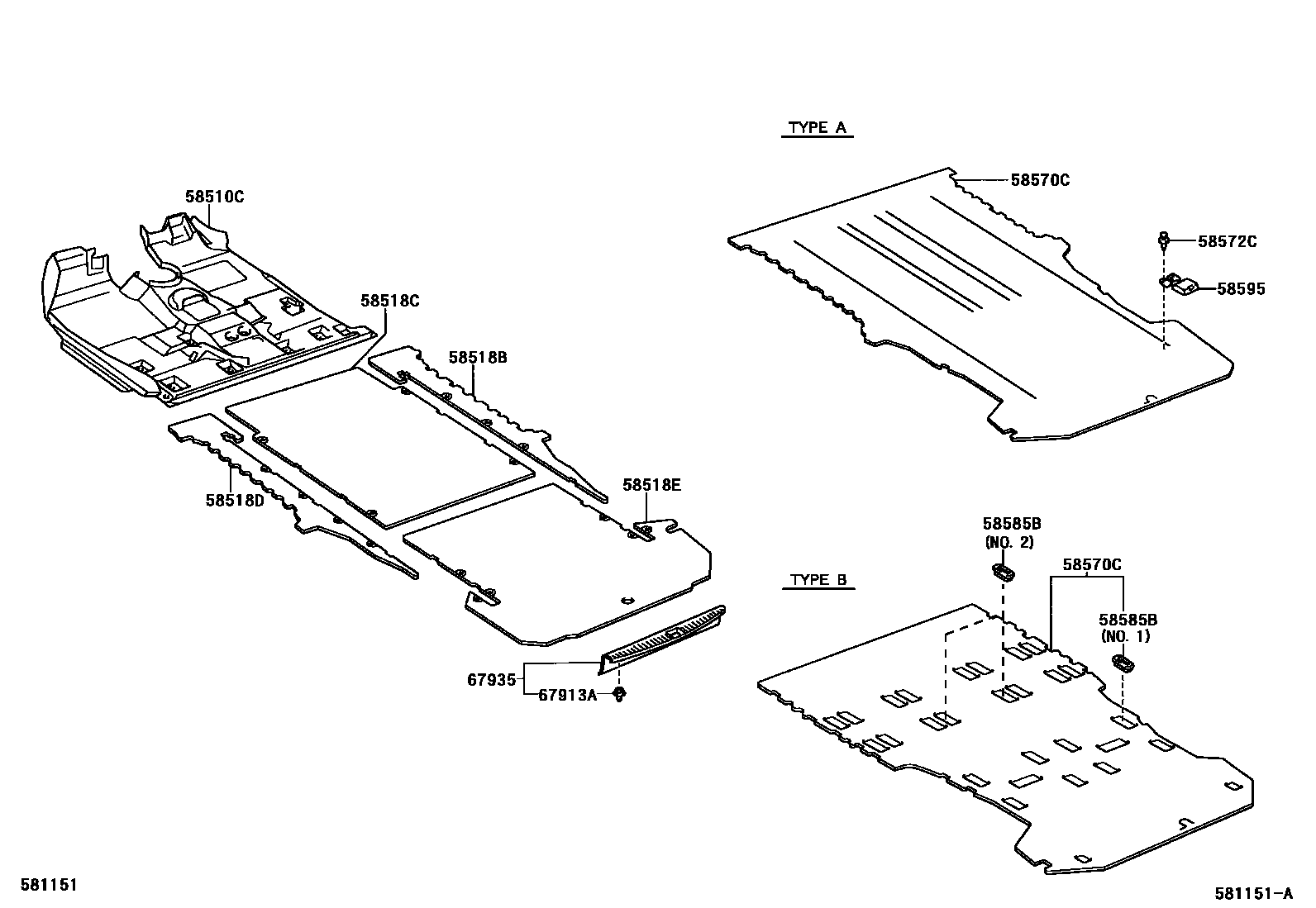

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-28A00-B0i200304-200601
W(VSC),GRAY,TRIM1#
main58510-28A10-B0i200304-200601
GRAY,TRIM1#
sub58510-28A00
main58510-28A20-B0i200304-200601
W(VSC),GRAY,TRIM1#
main58510-28A30-B0i200304-200601
GRAY,TRIM1#
sub58510-28A20
main58510-28A40-B0i200304-200601
GRAY,TRIM1#
main58510-28A50-B0i200304-200601
W(VSC),GRAY,TRIM1#
main58510-28A60-B0i200304-200601
GRAY,TRIM1#
sub58510-28A50
main58510-28A70-B0i200304-200601
GRAY,TRIM1#
main58510-28A80-B0i200304-200601
W(VSC),GRAY,TRIM1#
main58510-28A90-B0i200304-200601
GRAY,TRIM1#
sub58510-28A80
main58510-2R850-B0i200002-200304
BLUISH GRAY,TRIM11
sub58510-2R850
main58510-2R850-B1i200002-200304
MEDIUM CHARCOAL,TRIM12
sub58510-2R850
main58510-2R880-B0i200002-200304
BLUISH GRAY,TRIM11
sub58510-2R880
main58510-2R880-B1i200002-200304
MEDIUM CHARCOAL,TRIM12
sub58510-2R880
main58510-2R890-B0i200002-200304
BLUISH GRAY,TRIM11
sub58510-2R890
main58510-2R890-B1i200002-200304
MEDIUM CHARCOAL,TRIM12
sub58510-2R890
main58510-2X010-B0i200002-200304
BLUISH GRAY,TRIM11
sub58510-2X010
main58510-2X010-B1i200002-200304
MEDIUM CHARCOAL,TRIM12
sub58510-2X010
main58510-2X020-B0i200002-200304
BLUISH GRAY,TRIM11
sub58510-2X020
main58510-2X020-B1i200002-200304
MEDIUM CHARCOAL,TRIM12
sub58510-2X020
main58510-2X060-B0i200002-200304
BLUISH GRAY,TRIM11
sub58510-2R890
main58510-2X060-B1i200002-200304
MEDIUM CHARCOAL,TRIM12
sub58510-2R890
58518BMAT, REAR FLOOR, NO.2
main58518-28030i200002-200405
main58518-28090i200002-200304
W(REAR DETACHABLE SEAT)
sub58518-28300
main58518-28090i200102-200304
sub58518-28300
main58518-28300i200304
W(REAR DETACHABLE SEAT)
58518CMAT, REAR FLOOR, NO.2
main58518-28050i200002-200304
main58518-28080i200002-200304
main58518-28110i200102-200304
main58518-28110i200002-200304
W(REAR DETACHABLE SEAT)
main58518-28140i200105-200304
main58518-28250i200304-200405
main58518-28260i200304
BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE SPEC
main58518-28310i200304
main58518-28330i200304
W(REAR DETACHABLE SEAT)
main58518-28340i200304
W(REAR DETACHABLE SEAT)
58518DMAT, REAR FLOOR, NO.2
main58518-28040i200002-200405
main58518-28100i200102-200304
sub58518-28320
main58518-28100i200002-200304
W(REAR DETACHABLE SEAT)
sub58518-28320
main58518-28320i200304
W(REAR DETACHABLE SEAT)
58518EMAT, REAR FLOOR, NO.2
main58518-28060i200002-200601
main58518-28070i200002-200601
COLD SPEC
main58518-28120i200002-200304
W(REAR DETACHABLE SEAT)
sub58518-28360
main58518-28120i200102-200304
sub58518-28360
main58518-28130i200002-200304
COLD SPEC & W(REAR DETACHABLE SEAT)
sub58518-28350
main58518-28130i200102-200304
COLD SPEC
sub58518-28350
main58518-28350i200304-200601
W(REAR DETACHABLE SEAT)
main58518-28360i200304-200601
COLD SPEC & W(REAR DETACHABLE SEAT)
58570CCARPET ASSY, REAR FLOOR
main58570-28010-B4i200002-200304
TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM11
sub58570-28010
main58570-28010-B5i200002-200304
TYPE A:REFER TO ILLUSTRATION,MEDIUM CHARCOAL,TRIM12
sub58570-28010
main58570-28010-B6i200304-200601
TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub58570-28010
main58570-28020-B5i200002-200304
TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM11
sub58570-28020
main58570-28020-B6i200002-200304
TYPE B:REFER TO ILLUSTRATION,MEDIUM CHARCOAL,TRIM12
sub58570-28020
main58570-28030-B5i200002-200304
TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM11
sub58570-28030
main58570-28030-B6i200002-200304
TYPE B:REFER TO ILLUSTRATION,MEDIUM CHARCOAL,TRIM12
sub58570-28030
main58570-28030-B7i200304-200601
TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub58570-28030
main58570-28040-B4i200002-200304
TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM11
sub58570-28040
main58570-28040-B5i200002-200304
TYPE A:REFER TO ILLUSTRATION,MEDIUM CHARCOAL,TRIM12
sub58570-28040
main58570-28040-B6i200304-200601
TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub58570-28040
main58570-28050-B4i200002-200304
TYPE A:REFER TO ILLUSTRATION, COLD SPEC,BLUISH GRAY,TRIM11
sub58570-28050
main58570-28050-B5i200002-200304
TYPE A:REFER TO ILLUSTRATION, COLD SPEC,MEDIUM CHARCOAL,TRIM12
sub58570-28050
main58570-28050-B6i200304-200405
TYPE A:REFER TO ILLUSTRATION, COLD SPEC,GRAY,TRIM1#
sub58570-28050
main58570-28060-B5i200002-200304
TYPE B:REFER TO ILLUSTRATION, COLD SPEC,BLUISH GRAY,TRIM11
sub58570-28060
main58570-28060-B6i200002-200304
TYPE B:REFER TO ILLUSTRATION, COLD SPEC,MEDIUM CHARCOAL,TRIM12
sub58570-28060
main58570-28070-B5i200002-200304
TYPE B:REFER TO ILLUSTRATION, COLD SPEC,BLUISH GRAY,TRIM11
sub58570-28070
main58570-28070-B6i200002-200304
TYPE B:REFER TO ILLUSTRATION, COLD SPEC,MEDIUM CHARCOAL,TRIM12
sub58570-28070
main58570-28070-B7i200304-200601
TYPE B:REFER TO ILLUSTRATION, COLD SPEC,GRAY,TRIM1#
sub58570-28070
main58570-28080-B4i200002-200304
TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM11
sub58570-28081
sub58570-28080
main58570-28080-B5i200002-200304
TYPE A:REFER TO ILLUSTRATION,MEDIUM CHARCOAL,TRIM12
sub58570-28081
sub58570-28080
main58570-28080-B6i200304-200601
TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub58570-28081
sub58570-28080
main58570-28250-B0i200105-200304
TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM11
sub58570-28250
main58570-28250-B1i200105-200304
TYPE A:REFER TO ILLUSTRATION,MEDIUM CHARCOAL,TRIM12
sub58570-28250
main58570-28250-B2i200304-200405
BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE SPEC,GRAY,TRIM1#,TYPE A:REFER ILLUST.
sub58570-28250
main58570-28250-B2i200304-200601
TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub58570-28250
main58570-28390-B0i200304-200601
TYPE B:REFER TO ILLUSTRATION, COLD SPEC,GRAY,TRIM1#
main58570-28460-B1i200304-200601
TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#
58572CCLIP, REAR FLOOR MAT SET
main90467-06017-B0i200104-200304
GRAY,TRIM11,12
sub90467-06017
main90467-06017-B0i200304-200601
GRAY,TRIM1#
sub90467-06017
main90467-06017-B0i200304-200601
BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE OR TAIWAN SPEC,GRAY,TRIM1#
sub90467-06017
main90467-06046-01i200002-200104
BLACK,TRIM11,12
sub90467-06046
sub90467-06017
main90467-06046-01i200002-200104
W(REAR NO.2 BENCH SEAT),BLACK,TRIM11,12
sub90467-06046
sub90467-06017
main90467-10034-N8i200002-200304
W(REAR DETACHABLE SEAT),CREAM YELLOW,TRIM11,12
sub90467-10034
main90467-10034-N8i200304-200601
W(REAR DETACHABLE SEAT),CREAM YELLOW,TRIM1#
sub90467-10034
58585BCOVER, REAR FLOOR SEAT LOCK
main58585-28020-B0i200002-200304
LT. BLUISH GRAY,TRIM11,NO.1
sub58585-28020
main58585-28020-B1i200002-200304
MD.CHARCOAL,TRIM12,NO.1
sub58585-28020
main58585-28020-B1i200304-200601
MD.CHARCOAL,TRIM15
sub58585-28020
main58585-28020-B2i200304-200601
MD.GRAY,TRIM15,NO.1
sub58585-28020
main58585-28050-B0i200304-200601
MD.GRAY,TRIM1#,NO.2
58595MOULDING, FLOOR CARPET, NO.3
main58595-28010-B0i200002-200304
BLUISH GRAY,TRIM11
sub58595-28010
main58595-28010-B1i200002-200304
DK.CHARCOAL,TRIM12
sub58595-28010
main58595-28010-B2i200304-200601
MD.GRAY,TRIM1#
sub58595-28010
main58595-28010-B2i200304-200601
BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE OR TAIWAN SPEC,MD.GRAY,TRIM1#
sub58595-28010
67913ACLIP(FOR SCUFF PLATE)
main90467-09182i200002-200601
67935PLATE, BACK DOOR SCUFF
main67935-28040-B0i200002-200304
LT. BLUISH GRAY,TRIM11
sub67935-28040
main67935-28040-B1i200002-200304
MD.CHARCOAL,TRIM12
sub67935-28040
main67935-28040-B2i200304-200601
MD.GRAY,TRIM1#
sub67935-28040

11 parts on this diagram · 1 diagram in section
