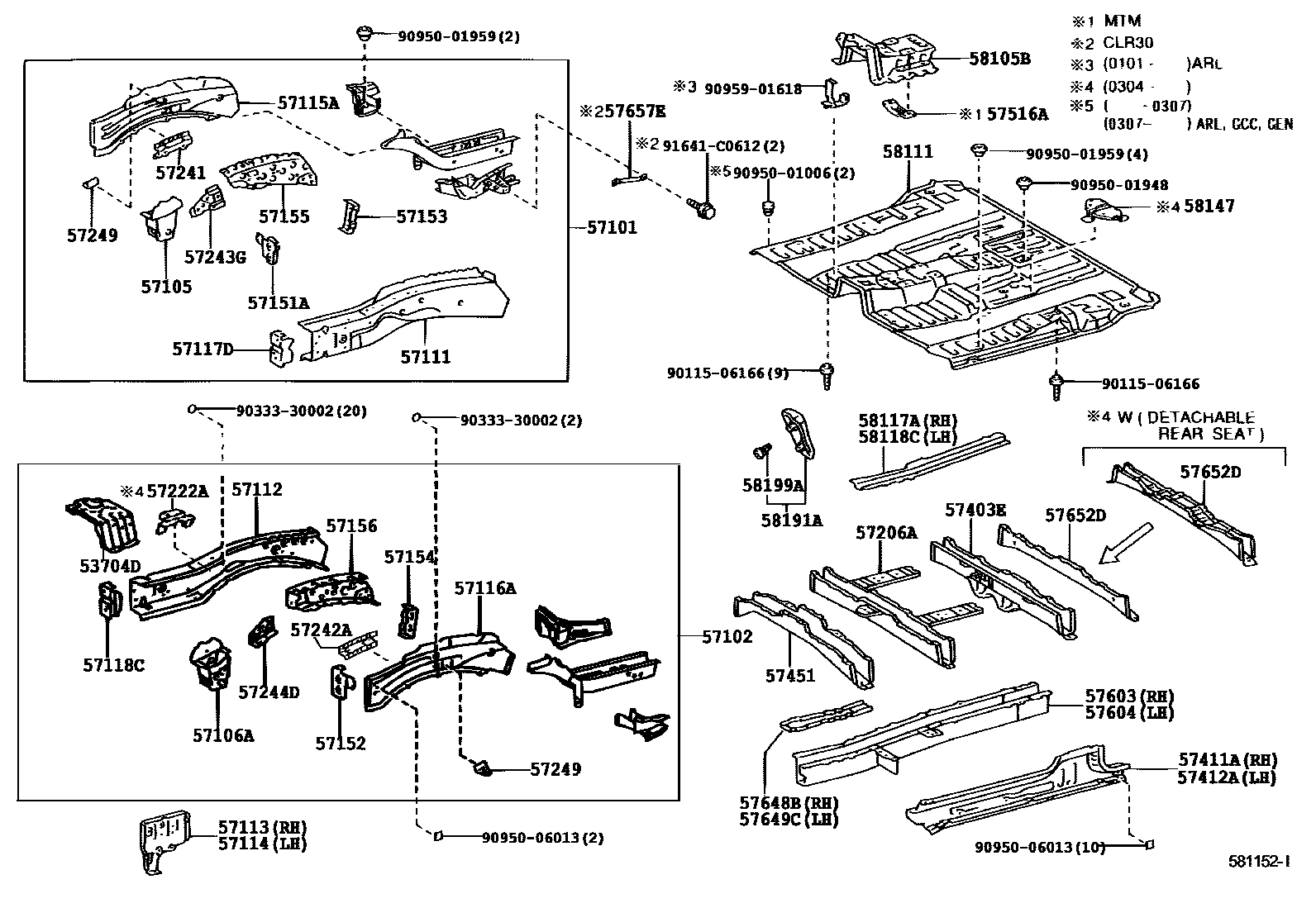

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-28010iACR30..ARL,EUR200002-200304

W(BATTERY=46B24L)

main53704-28030iACR30..ARL,EUR200002-200304

W(BATTERY=55D23L)

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28640iACR30200002-200304

main57101-28810iCLR30200102-200304

main57101-28850iACR30200304

main57101-28860iCLR30200304

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28660iACR30200002-200304

W(BATTERY=55D23L)

main57102-28670iACR30..ARL,EUR200002-200304

W(BATTERY=46B24L)

main57102-28680iCLR30200102-200304

main57102-28720iACR30..06S,07S;ACR30..08S..MTM;ACR30..DX..(ARL,GCC)200304

W(BATTERY=55D23L)

main57102-28730iACR30..ARL,EUR200304

W(BATTERY=46B24L)

main57102-28740iCLR30200304

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iACR30,CLR30200304

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-28110iACR30200002-200209

main57106-28120iACR30200304

main57106-28130iCLR30200304

57111MEMBER, FRONT SIDE, RH

main57111-28230iACR30200002-200304

main57111-28240iCLR30200102-200304

57112MEMBER, FRONT SIDE, LH

main57112-28260iACR30,CLR30200002-200304

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-28080iACR30,CLR30200002-200304

main57113-28120iACR30,CLR30200304

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-28060iACR30200002-200105

main57114-28070iACR30200105-200304

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-28090iACR30,CLR30200002-200304

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-28090iACR30,CLR30200002-200304

57117DRETAINER, FRONT BUMPER ARM, RH

main57117-28060iACR30,CLR30200002-200304

main57117-28080iACR30,CLR30200304

57118CRETAINER, FRONT BUMPER ARM, LH

main57118-28050iACR30,CLR30200002-200304

main57118-28060iACR30,CLR30200304

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-28120iACR30,CLR30200002-200304

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-28120iACR30,CLR30200002-200304

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-28080iCLR30..06S,07S200304

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-28080iACR30,CLR30200002-200304

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-28070iACR30,CLR30200002-200304

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-28080iACR30,CLR30200002-200304

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-28040iACR30..ARL200002-200105

main57206-28060iACR30..RHD..ATM..EUR200002-200007

main57206-28070iACR30..LHD..ATM200002-200007

main57206-28080iACR30..RHD..MTM200002-200007

main57206-28090iACR30,CLR30..LHD200007-200304

main57206-28100iACR30..ARL200105-200304

57222ABRACKET, FRONT SIDE MEMBER, LH

main57222-28040iACR30200304

57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH

main57241-28080iACR30,CLR30200002

57242AREINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH

main57242-28050iACR30,CLR30200002

57243GREINFORCEMENT, FRONT SIDE MEMBER, NO.6 RH

main57243-28070iACR30,CLR30200002-200304

57244DREINFORCEMENT, FRONT SIDE MEMBER, NO.6 LH

main57244-28040iACR30,CLR30200002-200304

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iACR30,CLR30200002-200304

57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-28050iACR30..08S;ACR30..GL..GEN;ACR30..RHD..07S..ATM200002-200105

W(CAPTAIN SEAT)

main57403-28070iACR30..(06S,07S)..EUR200002-200007

sub57403-28080

main57403-28120iACR30,CLR30200007-200105

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-28010iACR30,CLR30200002-200304

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-28010iACR30,CLR30200002-200304

57451MEMBER, FRONT FLOOR CROSS

main57408-28040iACR30..RHD..ATM200002-200105

main57408-28050iACR30..LHD..ATM200002-200304

main57408-28060iACR30,CLR30..RHD..MTM200002-200304

main57408-28061iACR30,CLR30..MTM200304

main57408-28070iACR30,CLR30..LHD..MTM200002-200304

main57408-28080iACR30..RHD..ATM200105-200304

main57408-28081iACR30..ATM200304

57516ARETAINER, FRONT FLOOR REINFORCEMENT, FRONT

main57516-28030iACR30,CLR30..MTM200002-200304

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-28010iACR30,CLR30..RHD200002-200211

main57603-28030iACR30..LHD200002-200105

main57603-28040iCLR30..LHD200102-200105

main57603-28050iACR30,CLR30..RHD200211-200304

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-28010iACR30,CLR30..RHD200002-200211

sub57604-28040

main57604-28020iACR30,CLR30..LHD200304

main57604-28030iACR30,CLR30..RHD200211-200304

57648BREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER RH

main57648-28030iACR30,CLR30200002-200304

57649CREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER LH

main57649-28020iACR30,CLR30200002-200304

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57605-28380iACR30,CLR30..07S..EUR200304

W(DETACHABLE REAR SEAT)

main57652-28100iACR30,CLR30200002-200304

57657EBRACKET, EXHAUST PIPE MOUNTING, NO.2

main57657-28040iCLR30200102-200304

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-28010iACR30..ATM200002-200304

main58105-28020iACR30,CLR30..MTM200002-200304

58111PAN, FRONT FLOOR

main58111-28670iACR30..ARL200002-200304

sub90333-35001

main58111-28680iACR30,CLR30..LHD..MTM200002-200304

sub90333-35001

main58111-28690iACR30..LHD..ATM200002-200304

sub90333-35001

main58111-28700iACR30,CLR30..RHD..MTM200002-200304

sub90333-35001

main58111-28710iACR30..RHD..ATM..EUR200002-200304

sub90333-35001

main58111-28740iACR30..ARL200304

main58111-28750iACR30..LHD..MTM200304

main58111-28760iACR30..LHD..ATM200304

main58111-2J040iACR30..RHD..MTM200304

main58111-2J050iACR30..RHD..ATM..EUR200304

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-28030iACR30,CLR30200304

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-28050iACR30,CLR30200002-200304

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-28010iACR30,CLR30..EUR200304

58191AFOOTREST, FRONT FLOOR, RH

main58191-28040iACR30..RHD..ATM200002-200304

58199ACLIP, FOOTREST, NO.2

main58199-20050×2iACR30..RHD..ATM200002-200304

9011506166

main90115-06166

9033330002

main90333-30002

9095001006

main90950-01006

9095001948

main90950-01948

9095001959

main90950-01959

9095006013

main90950-06013

9095901618

main90959-01618

91641C0612

main91641-C0612

52 parts on this diagram · 1 diagram in section
