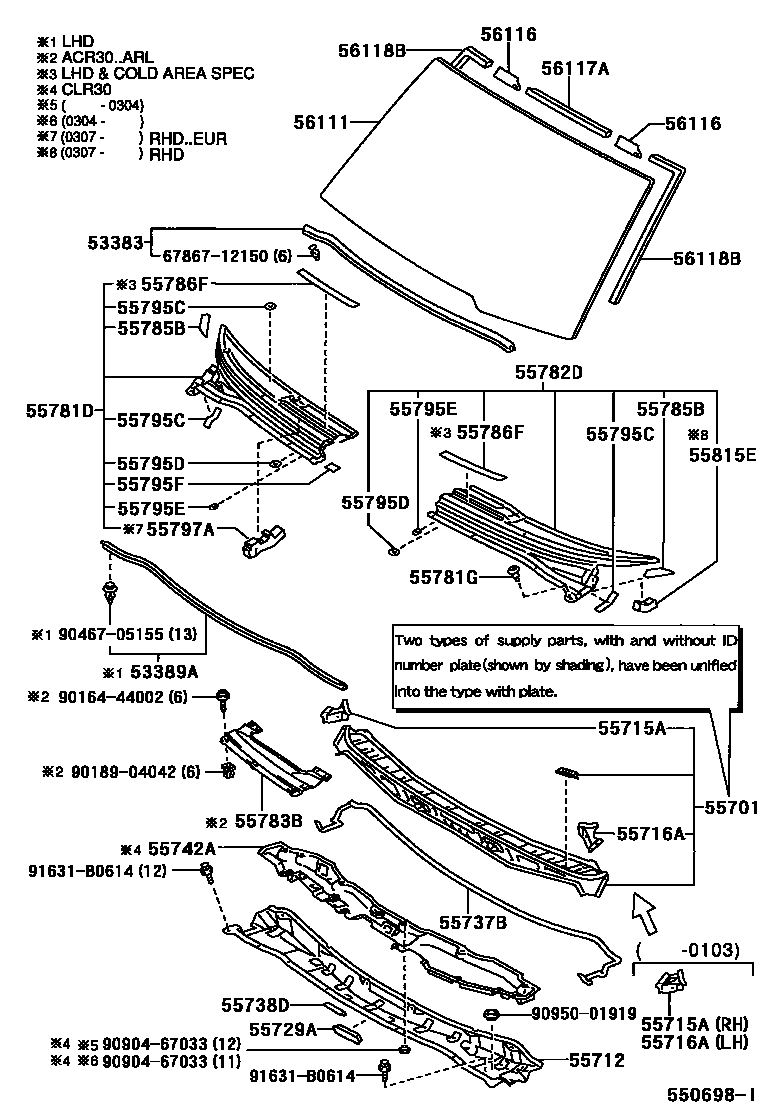

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-28030iACR30,CLR30200002-200304

53389ASEAL, HOOD TO COWL TOP, NO.2

main53389-28010iACR30,CLR30..LHD200002-200304

55701PANEL SUB-ASSY, COWL

main55700-28010iACR30200002-200007

sub55700-28020

main55700-28020iACR30..RHD..EUR200002-200007

W(INDENTIFICATION NUMBER PLATE)

main55700-28020iACR30,CLR30200007-200404

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-28020iACR30..ARL200002-200304

main55720-28030iACR30..LHD200002-200304

main55720-28040iCLR30..RHD200102-200304

main55720-28050iCLR30..LHD200102-200304

main55720-28090iACR30..RHD..EUR200304

main55720-28100iACR30..LHD200304

main55720-28110iCLR30..RHD200304

main55720-28120iCLR30..LHD200304

55715ABRACE, COWL TOP TO APRON, RH

main55715-28010iACR30,CLR30200002-200103

main55715-28020iACR30,CLR30200103-200404

55716ABRACE, COWL TOP TO APRON, LH

main55716-28050iACR30,CLR30200002-200103

main55716-28060iACR30,CLR30200103-200404

55729ACOVER, COWL PANEL HOLE

main55729-28010iACR30,CLR30200002-200304

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-28010iACR30,CLR30200002-200304

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-28020iACR30,CLR30200002-200304

55742ASHEET, COWL TOP INSULATOR

main55742-28020iCLR30200102-200304

main55742-28030iCLR30200304

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-28070iACR30,CLR30..RHD..EUR200002-200105

sub55708-28140

main55708-28080iACR30,CLR30..RHD..EUR200002-200105

COLD SPEC

sub55708-28150

main55708-28090iACR30..ARL200002-200304

main55708-28100iACR30,CLR30..LHD..(EUR,GCC)200002-200304

sub55708-28110

main55708-28110iACR30,CLR30..LHD..(EUR,GEN)200002-200304

COLD SPEC

main55708-28140iACR30,CLR30..RHD..EUR200105-200304

sub55708-28150

main55708-28150iACR30..08S..ATM..EUR200105-200405

COLD SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main55799-28020iACR30,CLR30200308

main90467-07197iACR30,CLR30200002-200308

sub55799-28020

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-28010iACR30,CLR30..RHD200002-200105

sub55709-28050

main55709-28020iACR30,CLR30..RHD200002-200105

COLD SPEC

sub55709-28060

main55709-28030iACR30,CLR30..LHD..(EUR,GCC)200002-200304

sub55709-28040

main55709-28040iACR30,CLR30..LHD..(EUR,GEN)200002-200304

COLD SPEC

main55709-28050iACR30,CLR30..RHD200105-200304

sub55709-28060

main55709-28060iACR30..08S..ATM..EUR200105-200405

COLD SPEC

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-28020iACR30..ARL200002-200304

55785BSHEET, COWL TOP VENTILATOR LOUVER

main55785-28030iACR30,CLR30200002-200304

55786FNET, COWL TOP VENTILATOR LOUVER

main55786-28040iACR30,CLR30..LHD..(EUR,GEN)200002-200304

55795CSEAL, WIPER MOTOR SERVICE HOLE

main55795-28010iACR30,CLR30200002-200304

L=80

sub55795-28050

main55795-28050iACR30,CLR30200002-200304

L=155

main55795-28060iACR30..ARL200002-200304

15 X 15

55795DSEAL, WIPER MOTOR SERVICE HOLE

main55795-28020iACR30,CLR30200002-200304

55795ESEAL, WIPER MOTOR SERVICE HOLE

main55795-28030iACR30,CLR30200002-200304

55795FSEAL, WIPER MOTOR SERVICE HOLE

main55795-28040iACR30,CLR30200002-200304

55797ASEAL, COWL WATER EXTRACT

main55797-28010iACR30,CLR30..RHD..EUR200307

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-28010iACR30,CLR30..RHD200307

56111GLASS, WINDSHIELD

main56111-28310iACR30,CLR30..RHD200002-200301

*TL,T=4.7,GREEN

sub56111-28311

main56111-28311iACR30,CLR30..RHD..08S..MTM200301-200404

*TL,T=4.7,GREEN

main56111-28320iACR30,CLR30..LHD..(EUR,GEN)200002-200301

*TL,T=4.7,GREEN

sub56111-28321

main56111-28321iACR30,CLR30..LHD..(06S,07S)..(EUR,GEN)200301-200404

*TL,T=4.7,GREEN

main56111-28330iACR30,CLR30..RHD..EUR200002-200301

*TL,T=4.7,GREEN,W(INDENTIFICATION NUMBER PLATE)

sub56111-28331

main56111-28331iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200301-200404

*TL,T=4.7,GREEN,W(INDENTIFICATION NUMBER PLATE)

main56111-28350iACR30..GCC200105-200301

*TL,T=4.7,GREEN

sub56111-28351

main56111-28351iACR30..GCC200301-200304

*TL,T=4.7,GREEN

main56111-28351iACR30..GEN200501

*TL,T=4.7,GREEN,W(VIN PLATE)

56116SPACER, WINDSHIELD GLASS

main56116-35050iACR30,CLR30200002-200404

56117ADAM, WINDOW GLASS ADHESIVE

main56118-28030iACR30,CLR30200002-200404

*D,L=638

sub64813-52010

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-28030iACR30,CLR30200002-200404

*D,L=1106

sub64813-52010

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9016444002

main90164-44002

9018904042

main90189-04042

9046705155

main90467-05155

9090467033

main90904-67033

9095001919

main90950-01919

91631B0614

main91631-B0614

33 parts on this diagram · 1 diagram in section
