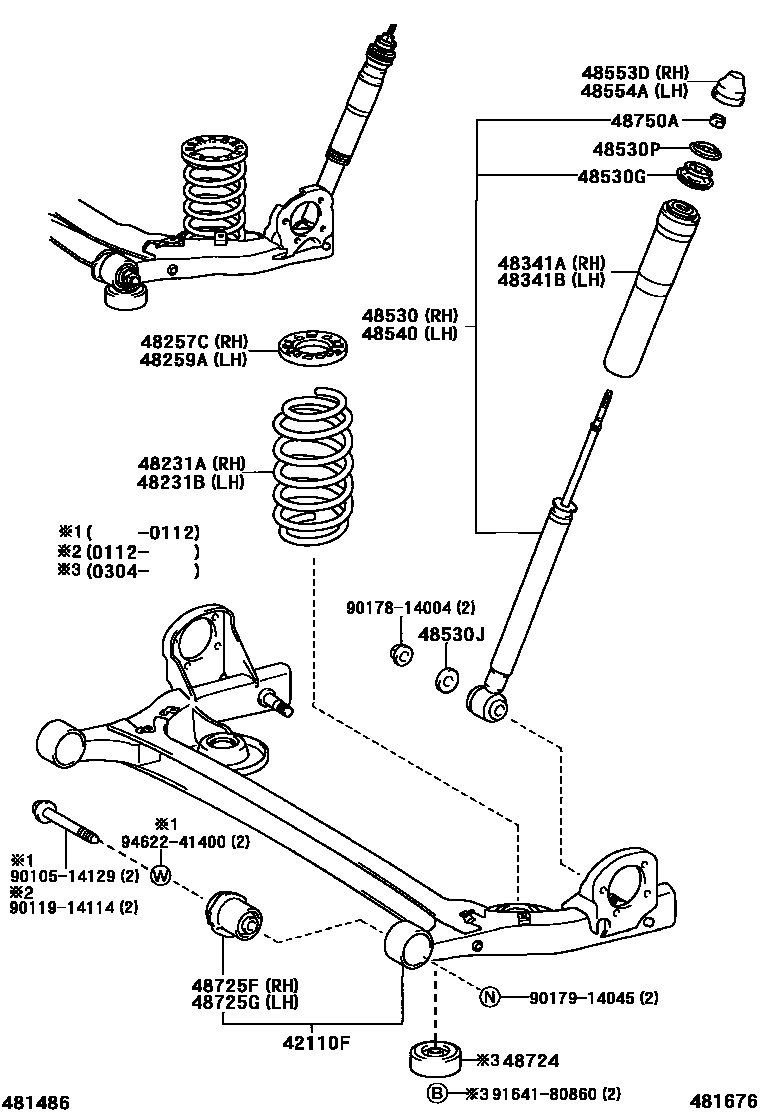

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-28500iACR30,CLR30..EUR200002-200304

W(ABS)

main42110-28501iACR30,CLR30..08S..MTM200304-200404

W(ABS)

main42110-28510iACR30200002-200005

sub42110-28511

main42110-28511iACR30,CLR30200005-200304

main42110-28512iACR30..ARL,GCC200304

48231ASPRING, COIL, REAR RH

main48231-2J030iACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM200002-200404

WHITE PAINTED

main48231-2J040iACR30,CLR30..(06S,07S)..EUR200002-200304

GREEN PAINTED

48231BSPRING, COIL, REAR LH

main48231-2J030iACR30,CLR30..08S..MTM200002-200404

WHITE PAINTED

main48231-2J040iACR30,CLR30..(06S,07S)..EUR200002-200304

GREEN PAINTED

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-28060iACR30,CLR30200002-200404

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-28060iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200404

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-28100iACR30,CLR30200002-200404

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-28100iACR30,CLR30200002-200404

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80698iACR30,CLR30200002-200304

MARK 48531-28570

main48531-80709iACR30,CLR30200304

MARK 48531-28640

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90905-40019iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200404

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90560-14028iACR30,CLR30..08S..MTM200312-200404

main90948-02060iACR30,CLR30200002-200312

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02159iACR30,CLR30200002-200304

main90948-02192iACR30,CLR30..08S..MTM200304-200404

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80698iACR30,CLR30200002-200304

MARK 48531-28570

main48531-80709iACR30,CLR30200304

MARK 48531-28640

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-28010iACR30,CLR30200002-200404

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-28010iACR30,CLR30200002-200404

48724DAMPER, LWR CONTROL ARM DYNAMIC

main48724-44010iACR30,CLR30..08S..MTM200304-200404

48725FBUSH, REAR AXLE CARRIER, RH

main48725-28050iACR30,CLR30200002-200304

main48725-58010iACR30,CLR30..08S..MTM200304-200404

48725GBUSH, REAR AXLE CARRIER, LH

main48725-28050iACR30,CLR30200002-200304

main48725-58010iACR30,CLR30..08S..MTM200304-200404

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90170-12045iACR30,CLR30200112-200404

sub94130-61200

main90177-12002iACR30,CLR30200003-200112

main94187-11200iACR30200002-200003

sub90177-12002

9010514129

main90105-14129

9011914114

main90119-14114

9017814004

main90178-14004

9017914045

main90179-14045

9164180860

main91641-80860

9462241400

main94622-41400

24 parts on this diagram · 1 diagram in section
